73-28003603

Artikelnummer: 73-28003603

Datenblatt: PDF herunterladen

Weitere Informationen entnehmen Sie bitte dem Datenblatt!

Hersteller

Tridonic Deutschland GmbH

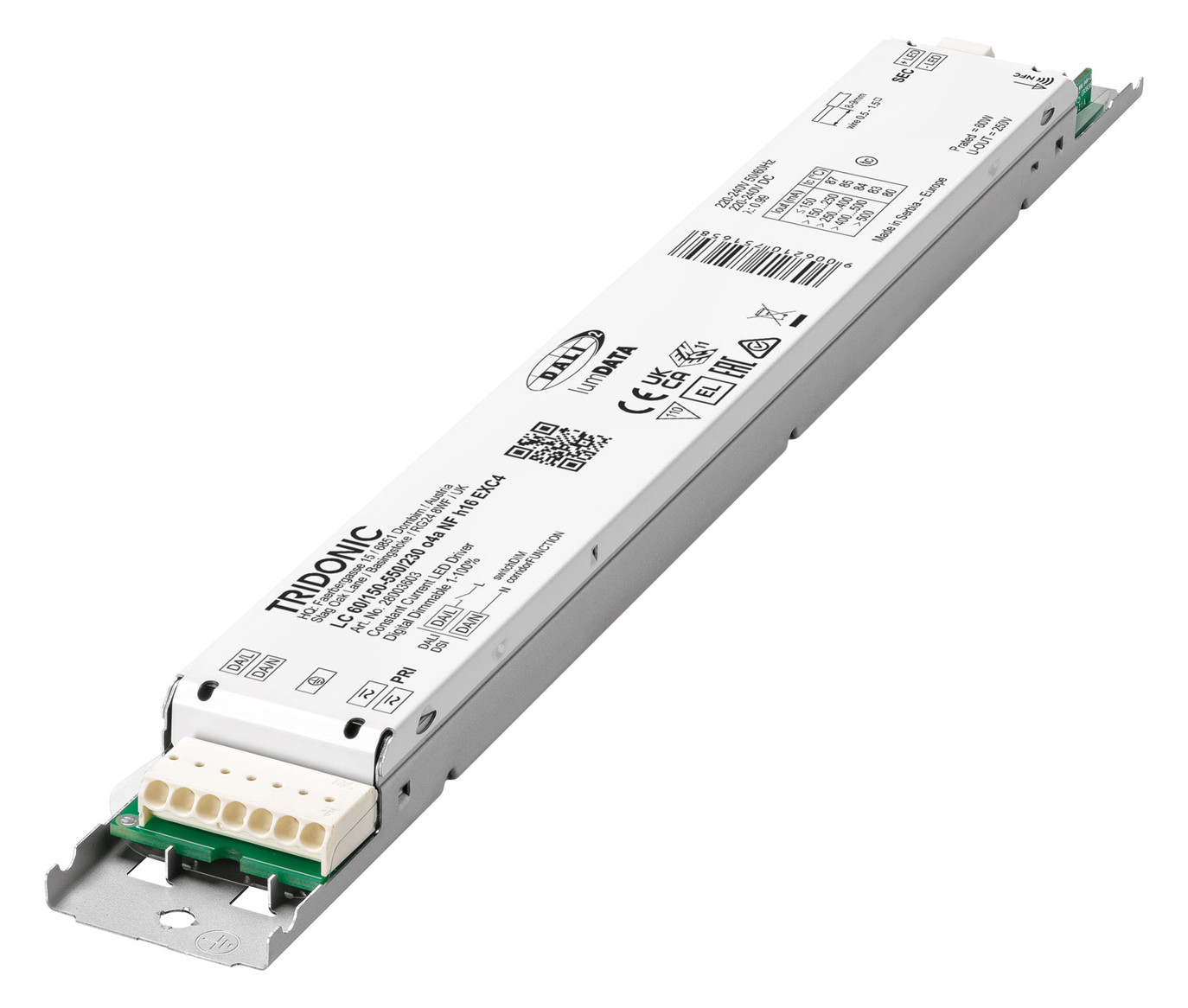

Dimmable constant-current LED driver for luminaire installation, Dimming range from 1 - 100 %, For luminaires of protection class I and protection class II, Output current adjustable between 150 - 550 mA, Max. output power 60 W, Up to 94 % efficiency, Power consumption in stand-by < 14 W, Nominal life up to 100. Output power 60 W, Up to 94 % efficiency, Power consumption in stand-by < 0.14 W, Nominal life up to 100. 000 h, 5-year guarantee, "Low profile" metal housing with white upper part, Housing height only 16 mm, Protection class IP20, Near field communication (NFC), one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION), Terminals: 0° plug-in terminals, Adjustable output current in 1 mA steps (NFC, DALI), Complies with DALI-2 parts: 251 (luminaire data), 252 (energy report) and 253 (diagnosis & maintenance), Constant light output function (eCLO), Power-up fading for AC, Driver switch-off via fade2zero, Protection functions (overtemperature, short-circuit, overload, open-circuit), Suitable for safety lighting systems according to EN 50172, Flexible configuration via companionSUITE, Supports NFC multiple programming (whole cardboard unit), Application-oriented operating window for max. Compatibility, High energy savings due to low stand-by losses and high efficiency, Lifetime up to 100,000 h and 5-year warranty, For linear and area lighting in office applications.
