Strada 185 LV – Runde Einbauleuchten starr
5. August 2026
Fabio 75 HV – Eckige Einbauleuchten starr black/Silver/white 10 W 80° 2200K - 3000K/2700K/3000K/4000K CRI90-100
5. August 2026

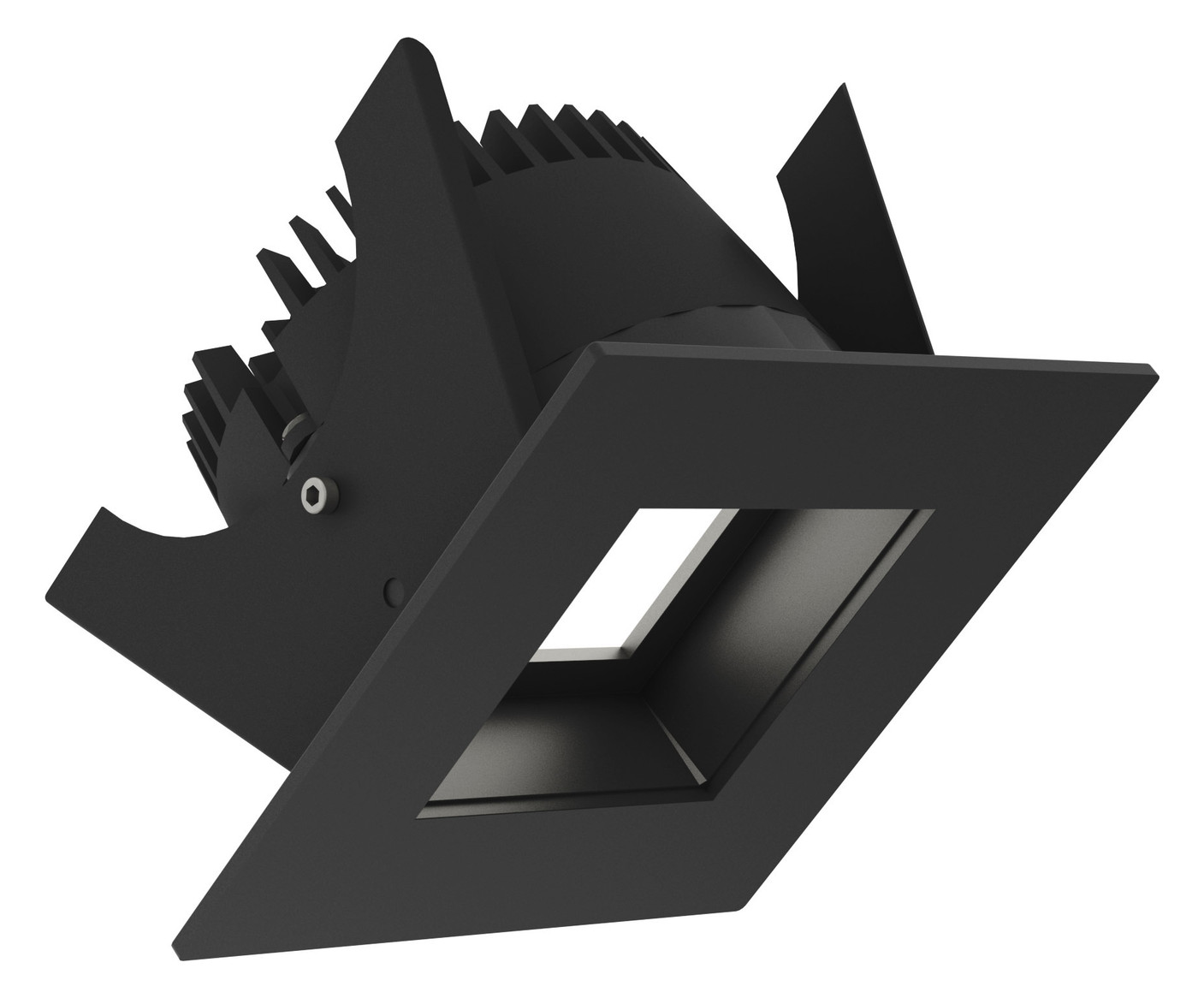

mime/fabio75hv_sw_md01.jpg

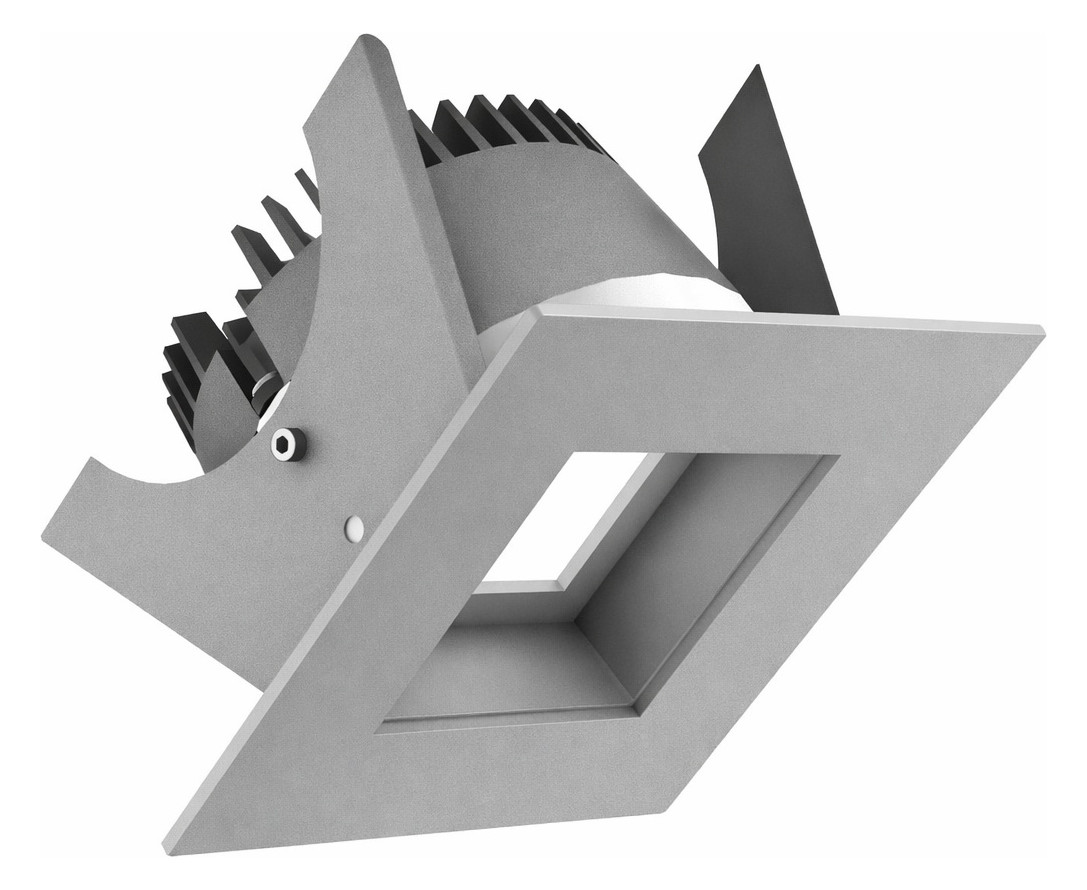

mime/fabio75hv_sil_md01.jpg

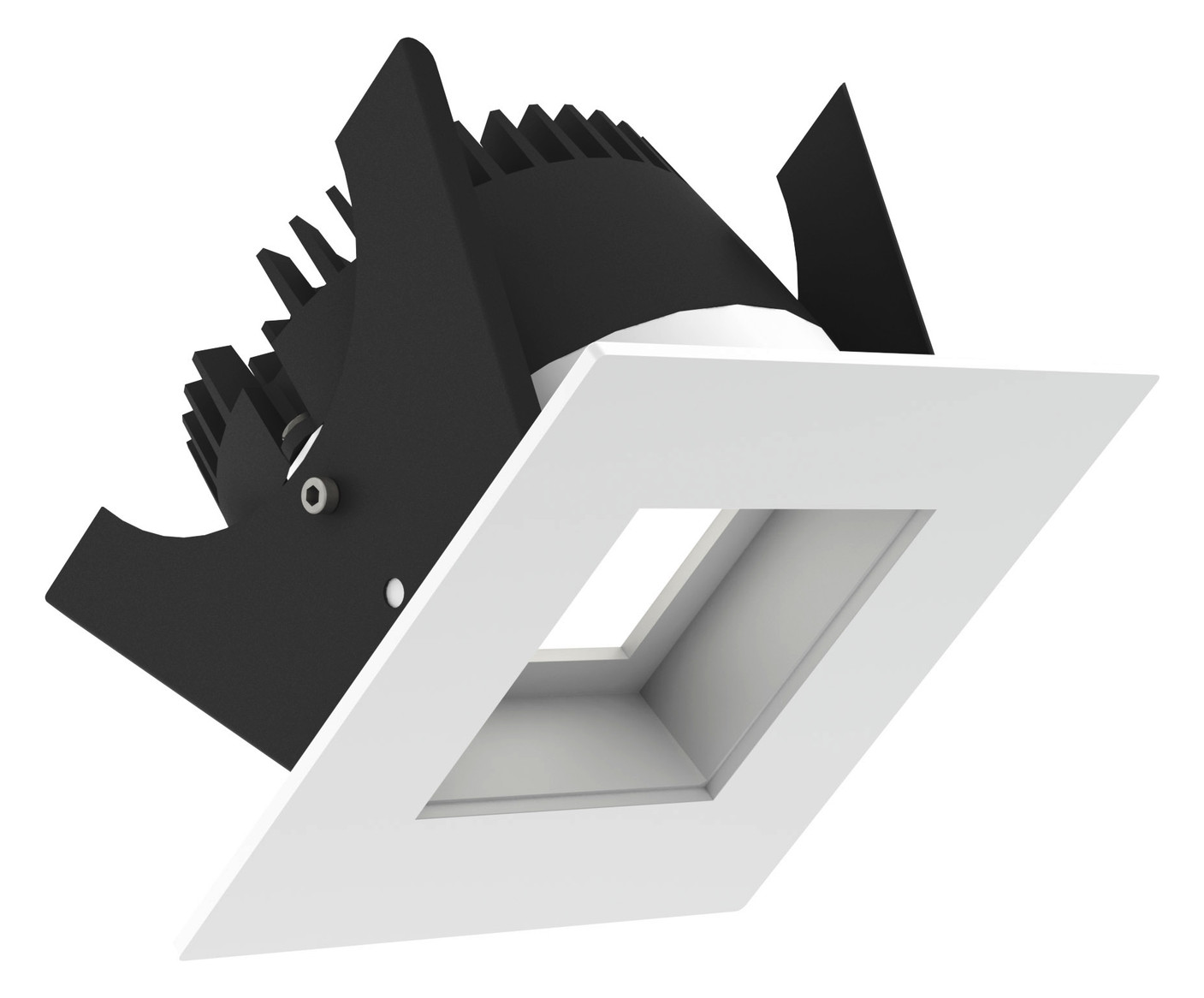

mime/fabio75hv_ws_md01.jpg

Fabio 75 LV – Eckige Einbauleuchten starr black/Silver/white 60°/80° 1800K - 3000K/2700K/2700K-6500K/3000K/4000K CRI80-89/90-100

Price range: 142,80 € through 530,74 € inkl. MwSt

SKU: Wird angezeigt, sobald alle Optionen ausgewählt sind.
Stock: Wird angezeigt, sobald alle Optionen ausgewählt sind.
For more information, please refer to the data sheet!
Bitte wählen Sie oben zunächst eine Produktvariation, um nähere Details zu erfahren.
LED Einbauleuchte für dekorative Beleuchtung. Entblendende Ausleuchtung durch zurückgesetzte Optik. Gehäuse aus Druckguss-Aluminium, mit CS Federn. Schutzblende aus Polycarbonat. Farbtoleranz 3 SDCM. Lichtstromrückgang L90/B10 nach mehr als 60.000h bei ta 25°C. Schutzart IP65 für geschlossene Deckensysteme. 7 Jahre Garantie
Achtung: Sie sehen aktuell nur solche technischen Daten, die für alle Variationen dieses Produkts identisch sind. Bitte wählen Sie oben eine Variation aus, um genauere Angaben zu erhalten.
Weight
0,35 kg
Dimensions
9 × 9 cm (L/W)
Color rendering index CRI

80-89, 90-100

Installation height

70 mm

Material of the housing

Aluminum

Light color

white

Beam angle

41-80° – breitstrahlend

Light source

LED replaceable

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Color

black, Silver, white

Voltage type

AC

Connection type

Plug-in terminal

Dimmable

Yes, No

Version

Without

Adjustability

not adjustable

Housing color

gray, black, white

Color temperature

1800K – 3000K, 2700K, 2700K-6500K, 3000K, 4000K

Beam angle

60°, 80°

Control

—, 1-10V, Bluetooth, DALI, Trailing Edge

Suitable for surface mounting
No
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for pendant suspension
No
Suitable for ceiling mounting
Yes
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
With motion detector
No
With presence detector
No
With light sensor
No
With illuminant
Yes
Suitable for number of light sources
1
Surface protection
powder-coated
Brushed surface
No
With control gear
Yes
Replaceable operating device
Yes
Dimming 0-10 V
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Phase control dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
Without
Light distribution
symmetrical
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
not required
Ambient product after 2019/2020/EU
Yes
Rated service life L70/B50 at 25 °C
UN h
Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature
90 %
Luminous flux maintenance with average service life 100,000 h at 25 °C ambient temperature
UN %
Failure rate at average. Service life of 35,000 h at 25 °C ambient temp. (tq)
UN %
Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)
10 %
Failure rate with average service life of 100,000 h at 25 °C ambient temperature (tq)
UN %
Constant luminous flux control
No
Degree of protection (IP), rear
IP20
Degree of protection (IP), front
IP65
Impact resistance
IK03
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
- bis - °C
Suitable for lamp wattage
NA W
Emergency power supply system
Without
Emergency function monitoring system
Without
Power factor
0,95
Adjustable beam angle
No
Installation diameter
77 mm
Type of wiring
Conclusion
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Max. number of luminaires per miniature circuit breaker B16
50
Glow wire test according to IEC 60695-2-11
Without
Photobiological safety according to EN 62471
RG1
Suitable for VDU workstations according to EN 12464-1
No
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Color consistency (McAdam ellipse)
SDCM3
Glare limitation (UGR)
28
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Fire protection according to UK Building Regulations Part B - 30 minutes
No
Fire protection according to UK Building Regulations Part B - 60 minutes
No
Fire protection according to UK Building Regulations Part B - 90 minutes
No
Die Datenblätter werden Ihnen angezeigt, sobald oben alle Optionen ausgewählt sind.
declaration_rohs_il_md49.pdf
declaration_ce_il_2022_md52.pdf
illuxtron_reach_declaration_md05.pdf
