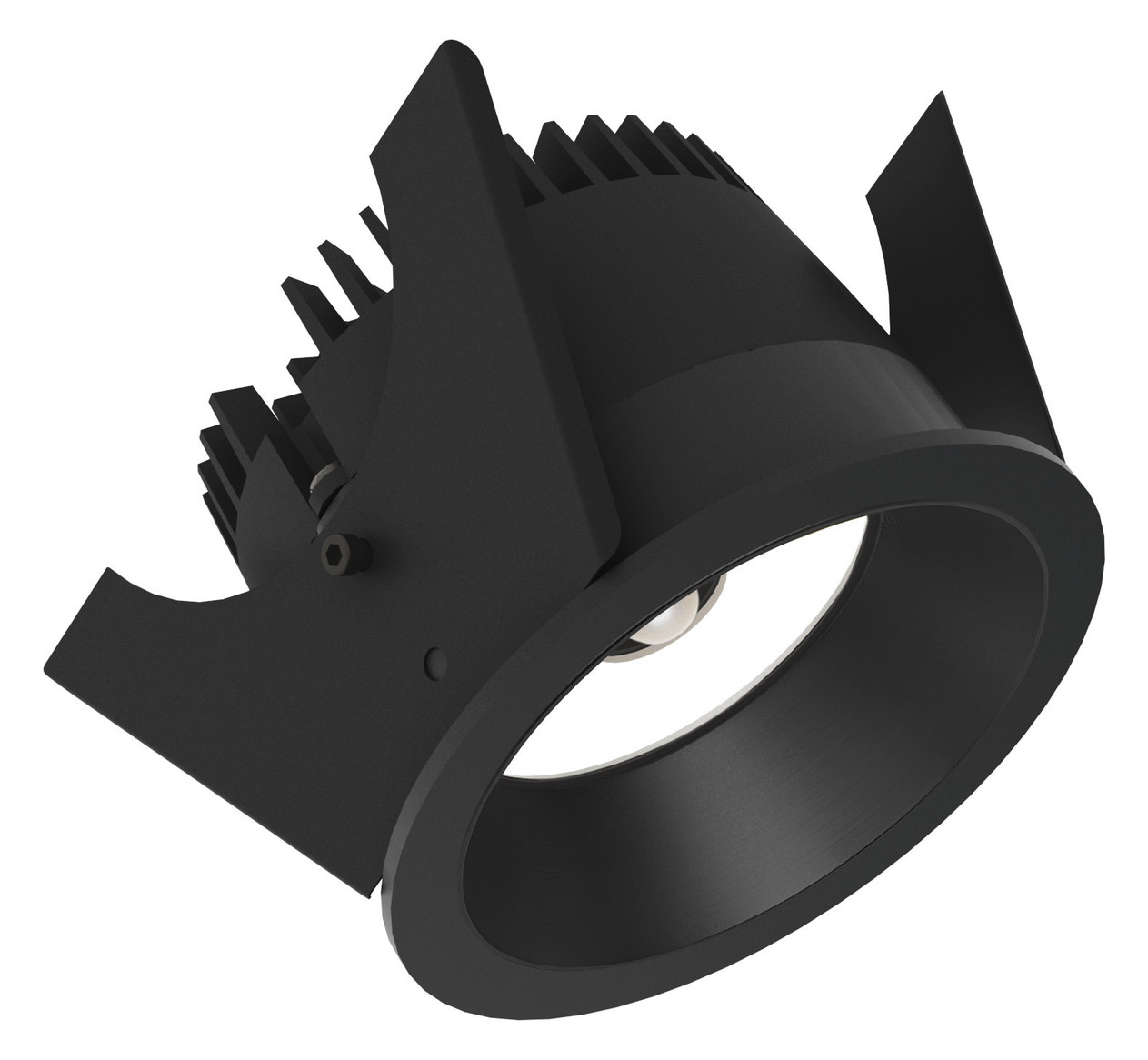

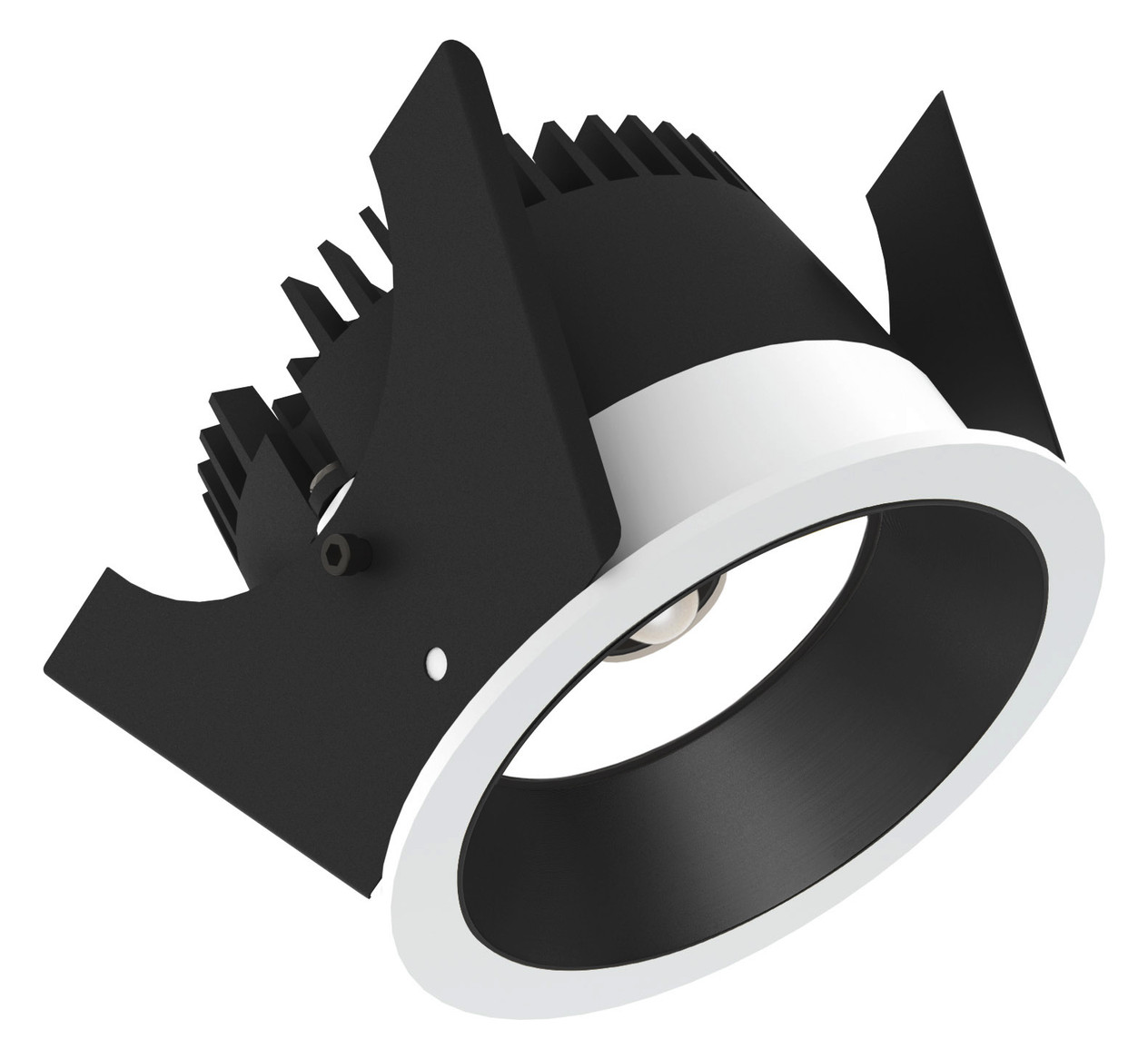

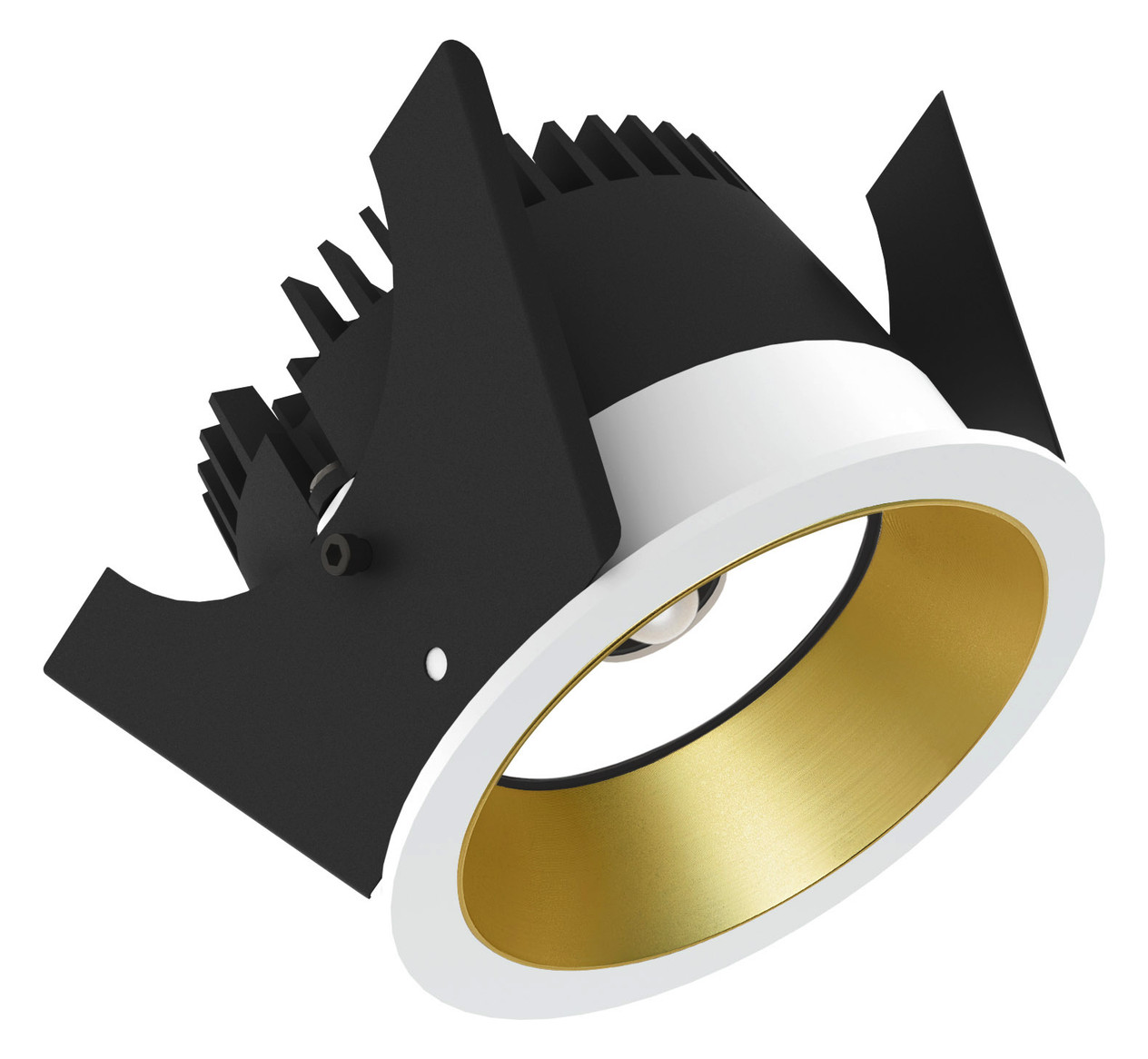

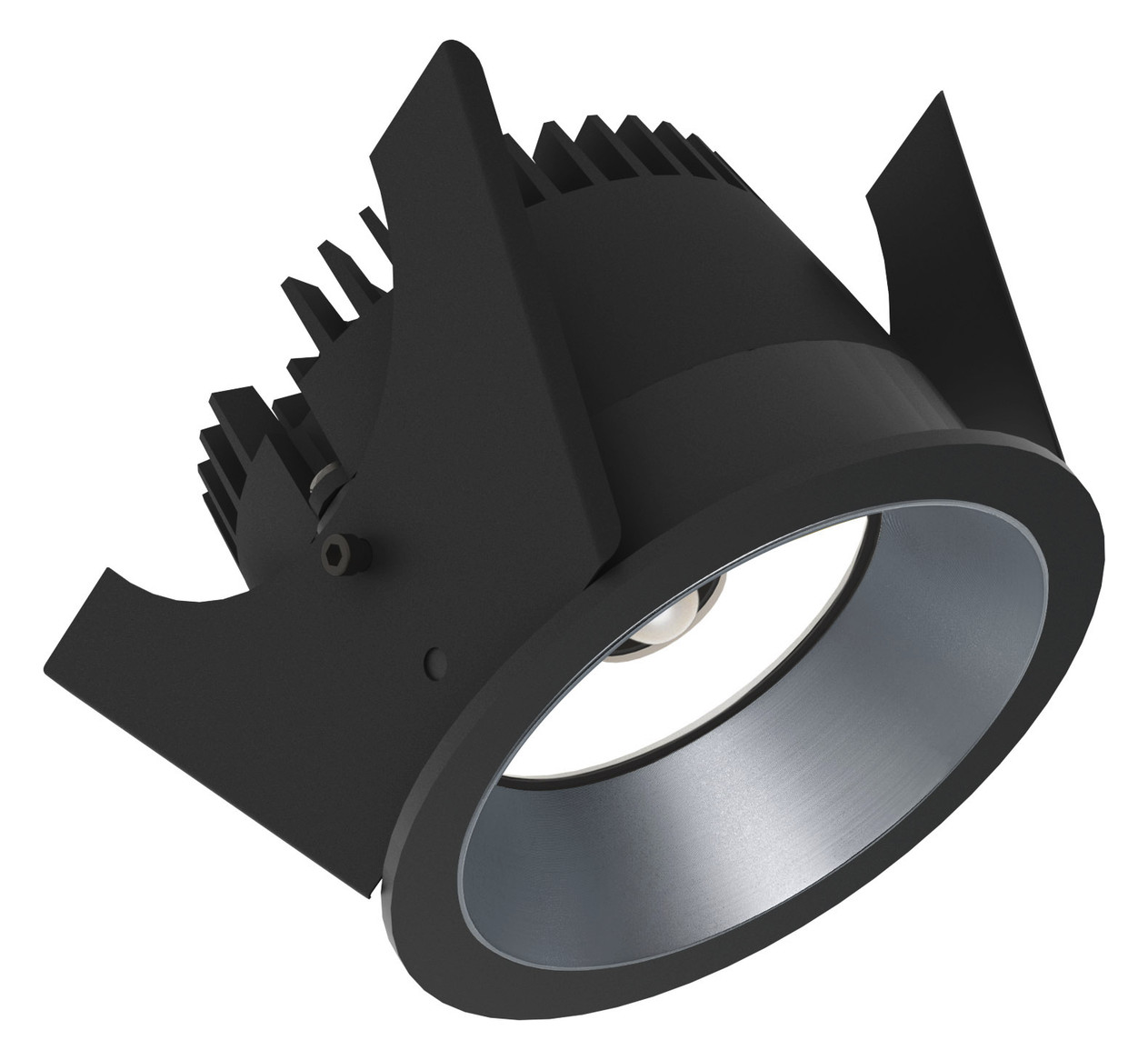

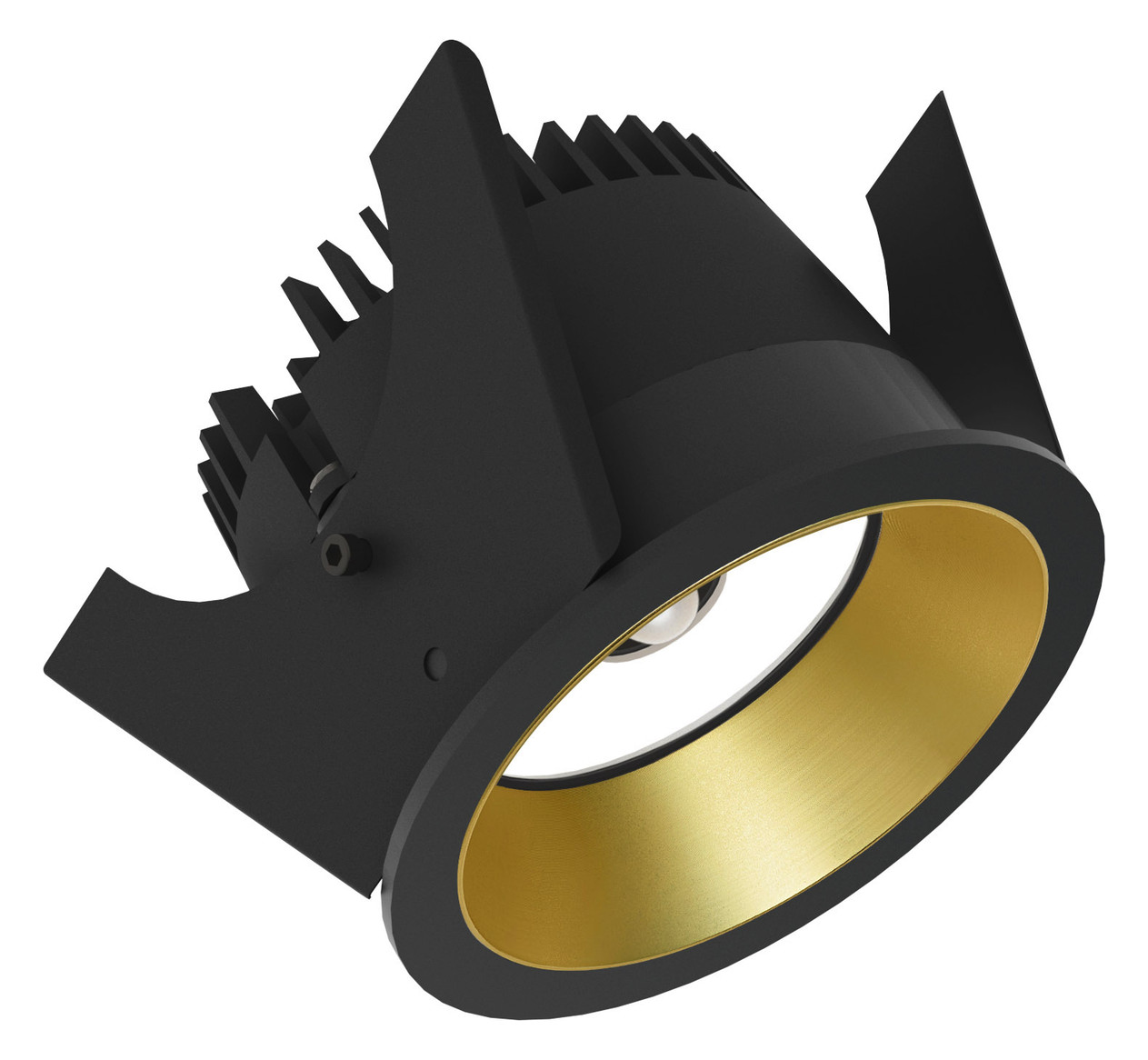

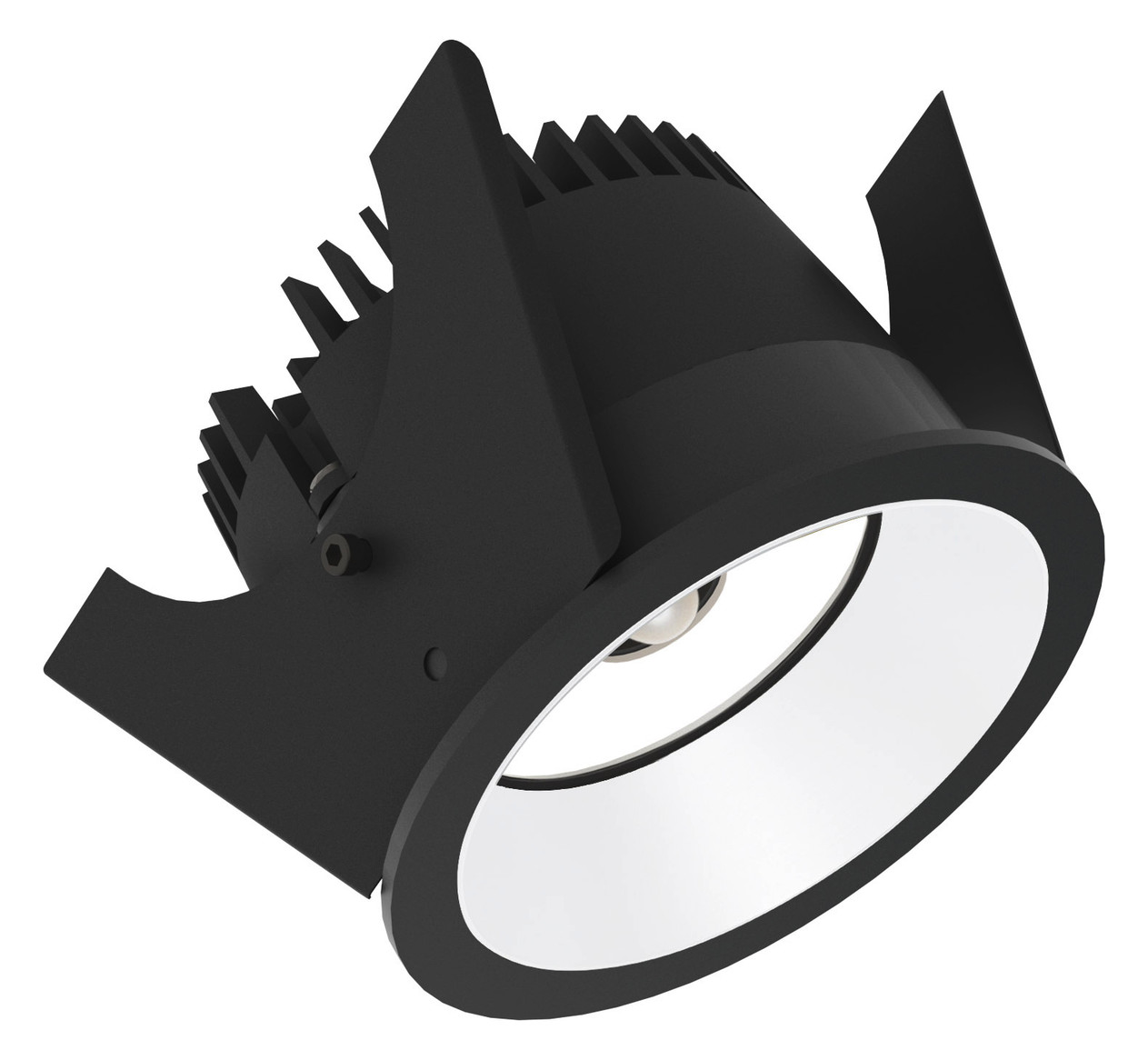

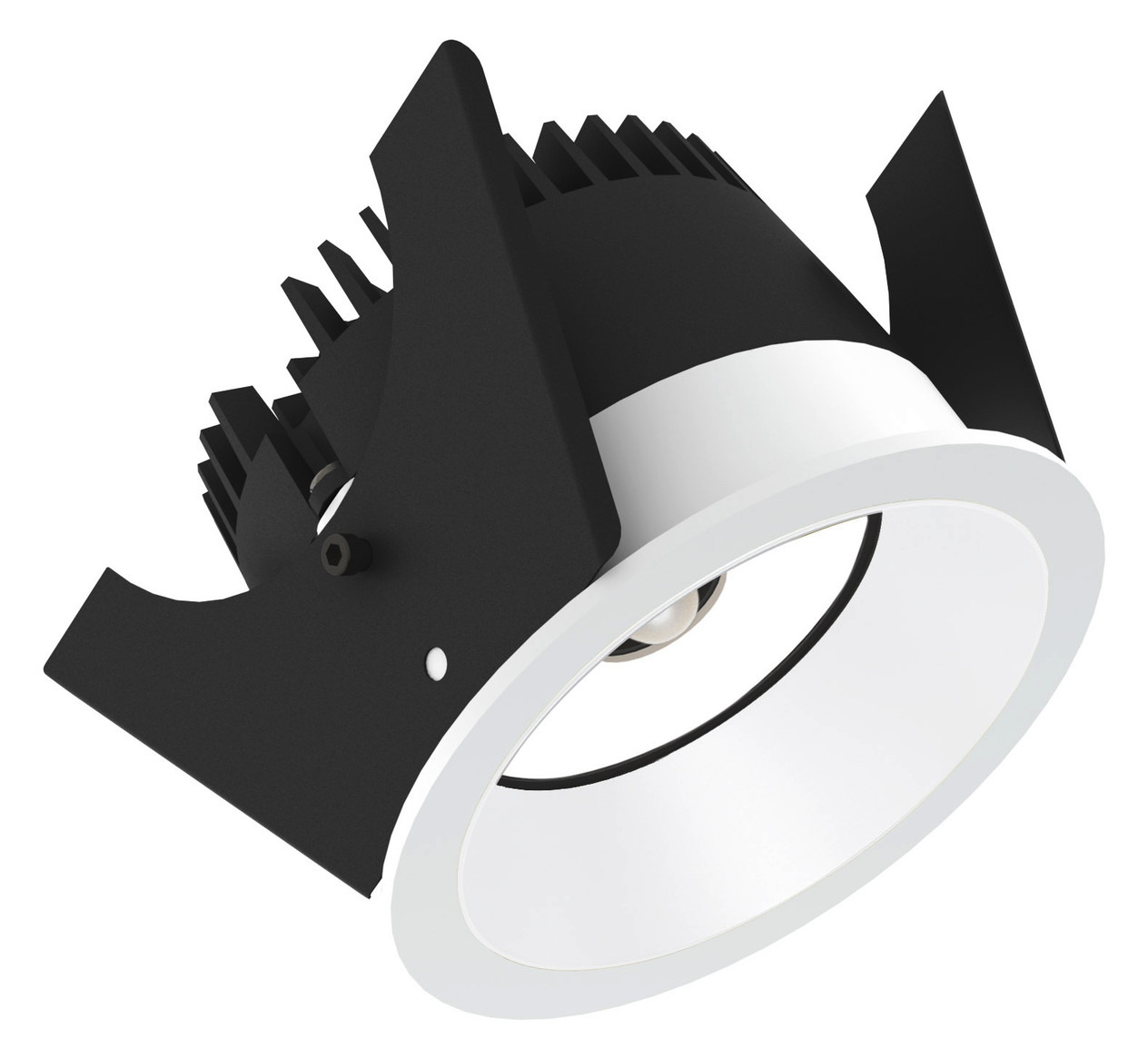

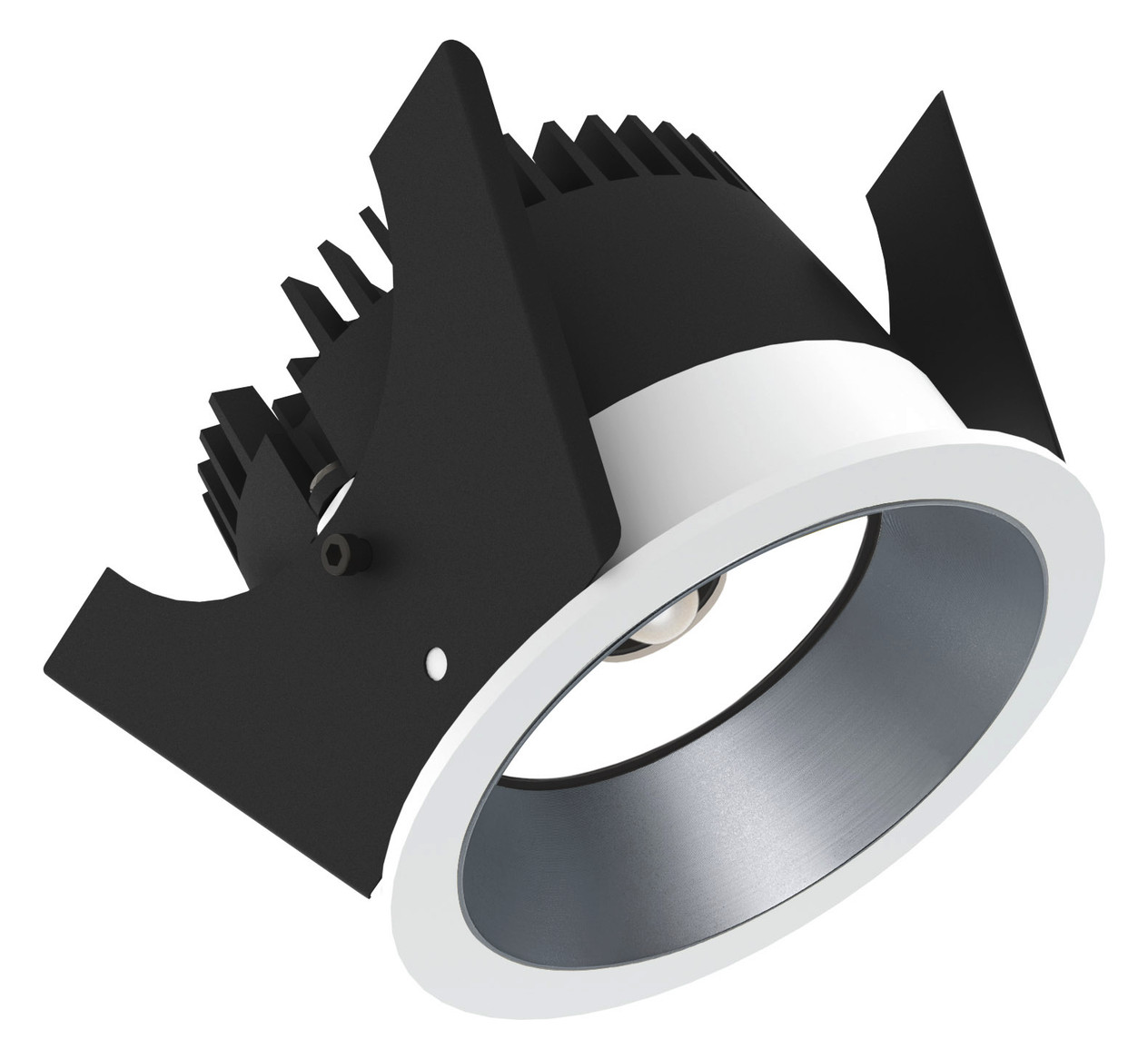

Sensor Strada 75 – Runde Einbauleuchten starr

213,01 € inkl. MwSt

SKU: Wird angezeigt, sobald alle Optionen ausgewählt sind.
Stock: Wird angezeigt, sobald alle Optionen ausgewählt sind.
For more information, please refer to the data sheet!
Bitte wählen Sie oben zunächst eine Produktvariation, um nähere Details zu erfahren.
LED Einbauleuchte für dekorative Beleuchtung. Bewegungssensor, Licht bleibt 4min aktiviert. Interner Chip für reduziertes Flickern. Integrierter Bewegungsmelder und Tageslichtsensor. Gehäuse aus Druckguss-Aluminium, mit CS Federn. Schutzblende aus Polycarbonat. Farbtoleranz 3 SDCM. Lichtstromrückgang nach 70.000h L80/B50. 220 - 240 V Netzspannung - Betriebsgerät nicht notwendig. 7 Jahre Garantie
Achtung: Sie sehen aktuell nur solche technischen Daten, die für alle Variationen dieses Produkts identisch sind. Bitte wählen Sie oben eine Variation aus, um genauere Angaben zu erhalten.
Weight
0,32 kg
Connection type

Plug-in terminal

Installation height

60 mm

Outer diameter

81 mm

Voltage type

AC

Light color

white

Color

black, black/gold, black/silver, white, white/gold, white/black, white/silver

Beam angle

41-80° – breitstrahlend

Operating device

LED control gear, current-controlled

Version

Without

Light source

LED replaceable

Adjustability

not adjustable

Material of the housing

Aluminum

Color rendering index CRI

80-89

Nominal voltage

220 – 240 V

Dimmable

No

Color temperature

3000K, 4000K

Variant

847-852S03655D02, 847-852S03655F02, 847-852S03765D02, 847-852S03765F02, LED Downlight 15W 3000K, LED Downlight 15W 4000K

Suitable for surface mounting
No
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for pendant suspension
No
Suitable for ceiling mounting
Yes
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
With motion detector
Yes
With presence detector
No
Motion Detector/Presence Detector Technology
passive infrared
With light sensor
No
With illuminant
Yes
Suitable for number of light sources
1
Surface protection
powder-coated
Cover material
Plastic opal
Brushed surface
No
With control gear
No
Replaceable operating device
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
Without
Light distribution
symmetrical
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
not required
Ambient product after 2019/2020/EU
Yes
Rated service life L70/B50 at 25 °C
54.000 h
Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature
90 %
Luminous flux maintenance with average service life 100,000 h at 25 °C ambient temperature
UN %
Failure rate at average. Service life of 35,000 h at 25 °C ambient temp. (tq)
UN %
Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)
50 %
Failure rate with average service life of 100,000 h at 25 °C ambient temperature (tq)
UN %
Constant luminous flux control
No
Degree of protection (IP), rear
IP20
Impact resistance
IK03
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
- bis - °C
Suitable for lamp wattage
NA W
Max. System performance
15 W
Emergency power supply system
Without
Emergency function monitoring system
Without
Adjustable color temperature
No
Adjustable luminous flux
No
Adjustable beam angle
No
Installation diameter
75 mm
Type of wiring
Conclusion
Number of poles
2
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Glow wire test according to IEC 60695-2-11
Without
Photobiological safety according to EN 62471
RG1
Suitable for VDU workstations according to EN 12464-1
No
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Color consistency (McAdam ellipse)
SDCM3
Glare limitation (UGR)
26
Compatible with Apple HomeKit
No
Operation via Bluetooth
No
Compatible with Google Assistant
No
Compatible with Casambi
No
Compatible with Amazon Alexa
No
Fire protection according to UK Building Regulations Part B - 30 minutes
No
Fire protection according to UK Building Regulations Part B - 60 minutes
No
Fire protection according to UK Building Regulations Part B - 90 minutes
No
