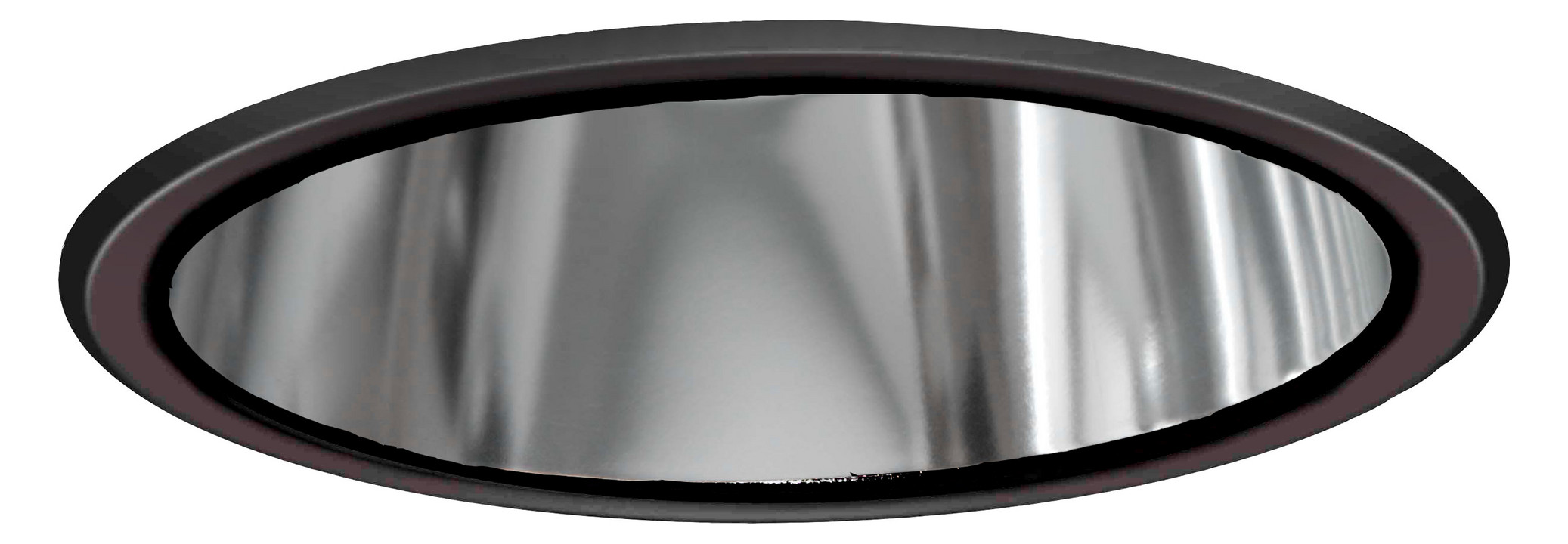

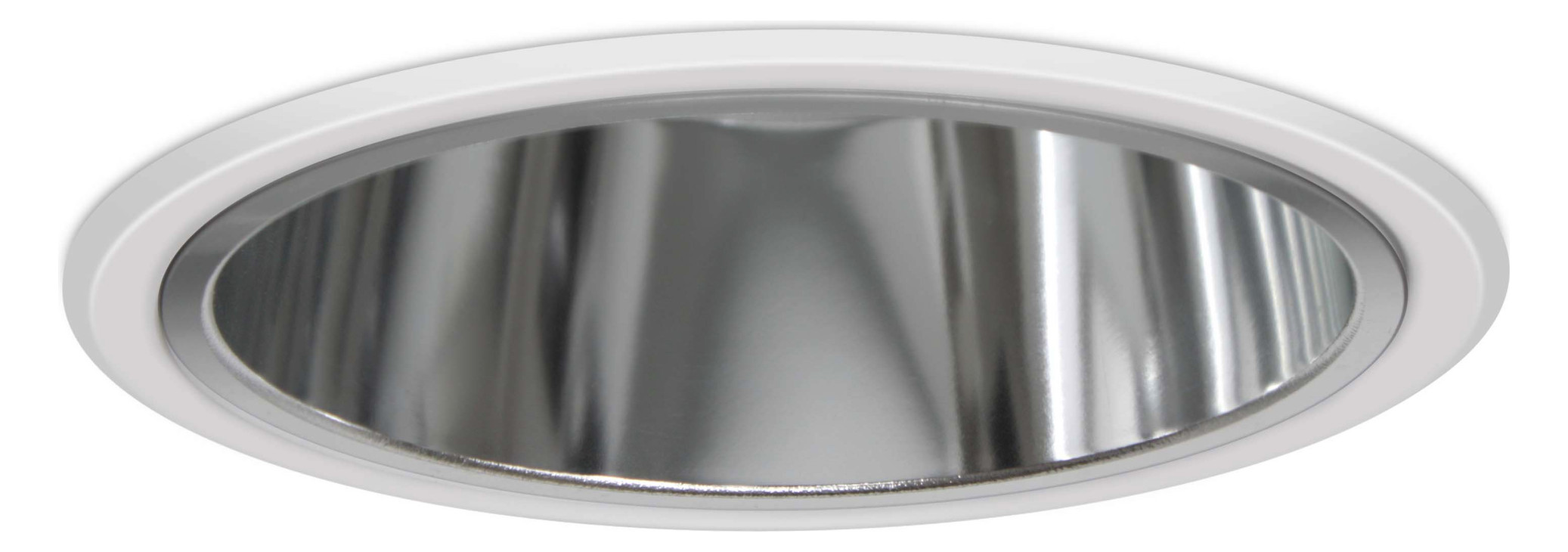

roundCENTURY 165 – Runde Einbauleuchten starr black/white 70° 2700K/3000K/3500K/4000K CRI90-100 217-

228,48 € inkl. MwSt

SKU: roundCENTURY-165
For more information, please refer to the data sheet!
Bitte wählen Sie oben zunächst eine Produktvariation, um nähere Details zu erfahren.
Innovative und bewährte Einbauleuchte. Leuchtengehäuse aus Aluminium und Stahl, passives Kühlsystem. Aluminiumreflektor silber, eloxiert . Farbtoleranz 2 SDCM. Lichtstromrückgang nach 50.000h L90/B10. Separates, nicht dimmbares Betriebsgerät. Weitere Produktkonfigurationen auf Anfrage. 5 Jahre Garantie.
Achtung: Sie sehen aktuell nur solche technischen Daten, die für alle Variationen dieses Produkts identisch sind. Bitte wählen Sie oben eine Variation aus, um genauere Angaben zu erhalten.
Nominal voltage

220 – 240 V

Outer diameter

165 mm

Color rendering index CRI

90-100

Voltage type

AC

Color

black, white

Adjustability

not adjustable

Material of the housing

Aluminum

Operating device

LED control gear, current-controlled

Light color

white

Version

Without

Beam angle

breitstrahlend 41-80°

Protection class (IP)

IP20

Connection type

Plug-in terminal

Housing color

black, white

Color temperature

2700K, 3000K, 3500K, 4000K

Performance

15W, 20W, 25W, 34W

Suitable for surface mounting
No
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for pendant suspension
No
Suitable for ceiling mounting
Yes
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
With motion detector
No
With light sensor
No
With illuminant
Yes
Suitable for number of light sources
1
Surface protection
powder-coated
Cover material
Without cover
Brushed surface
No
With control gear
Yes
Replaceable operating device
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Without dimming function
Yes
Reflector
high gloss
Light distributor
Diffuser lens/optics/panel
Light distribution
symmetrical
Reflector color
silver
Energy efficiency class of the light source according to EU Directive 2019/2015
not required
Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature
90 %
Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)
10 %
Constant luminous flux control
No
Adjustable color temperature
No
Adjustable luminous flux
No
Adjustable beam angle
No
Installation height/depth
120 mm
Installation diameter
145 mm
Type of wiring
Conclusion
Number of poles
2
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Integrated emergency power supply
No
Glow wire test according to IEC 60695-2-11
Without
Photobiological safety according to EN 62471
RG1
Suitable for VDU workstations according to EN 12464-1
No
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Color consistency (McAdam ellipse)
SDCM2
Compatible with Apple HomeKit
No
Operation via Bluetooth
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Achtung: Sie sehen aktuell nur die Datenblätter, welche für alle Variationen dieses Produkts identisch sind. Bitte wählen Sie oben eine Variation aus, um die spezifischen Datenblätter für diese Variation anzuzeigen.
declaration_rc165_md52.pdf
arclite_reach_selbstverpflichtungserklaerung_24-07-30_md05.pdf
