Fabio 75 HV – Fixed-angle recessed luminaires black/Silver/white 10 W 80° 2200K - 3000K/2700K/3000K/4000K CRI90-100
5. August 2026
Fluxe 75 LV-TW – Round recessed luminaires rigid black/white 11 W 60°/80° 2.700 - 6.500 K CRI80-89
5. August 2026
mime/fluxe90lvadj_sw_md01.jpg
mime/fluxe90lvadj_ws_md01.jpg

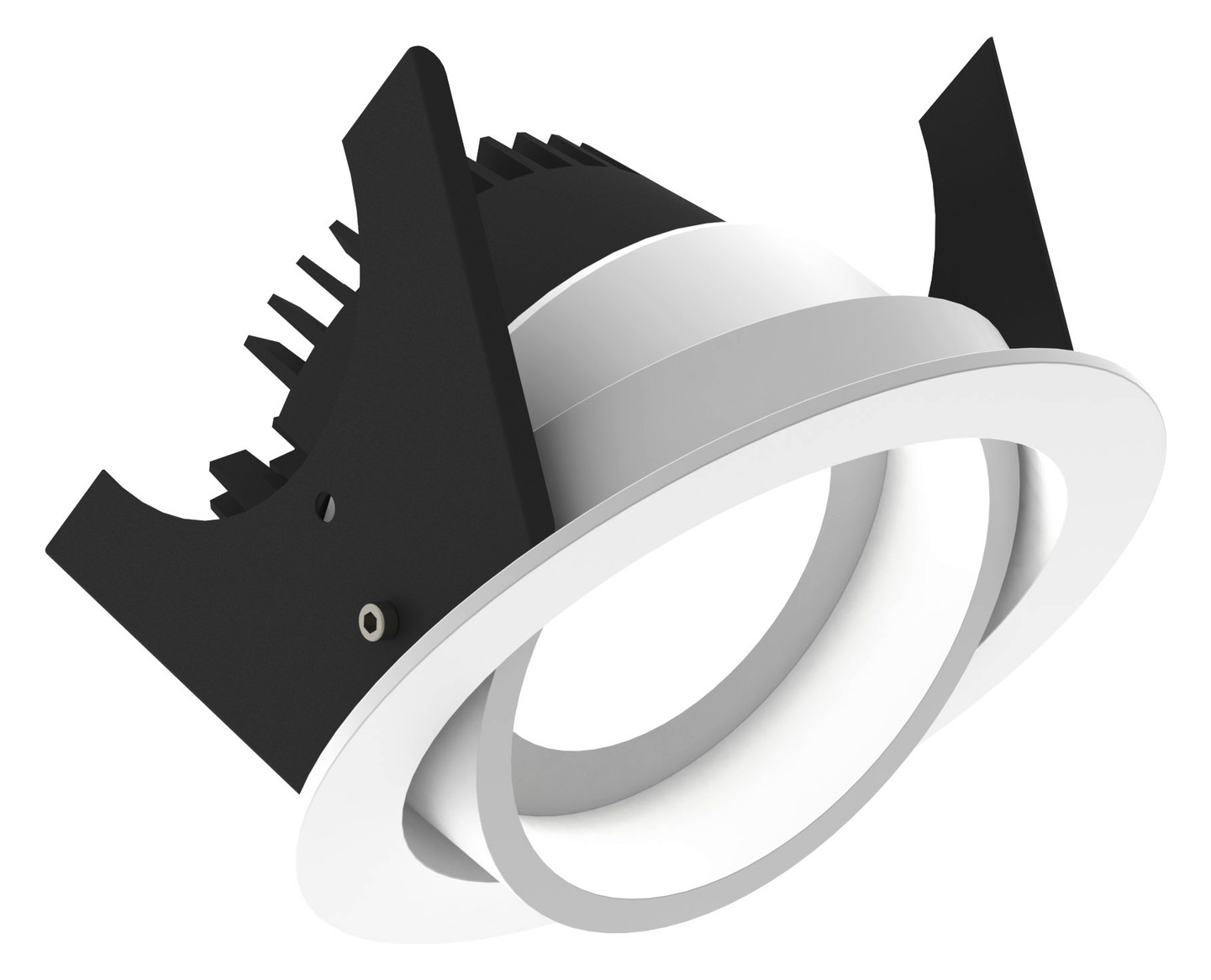

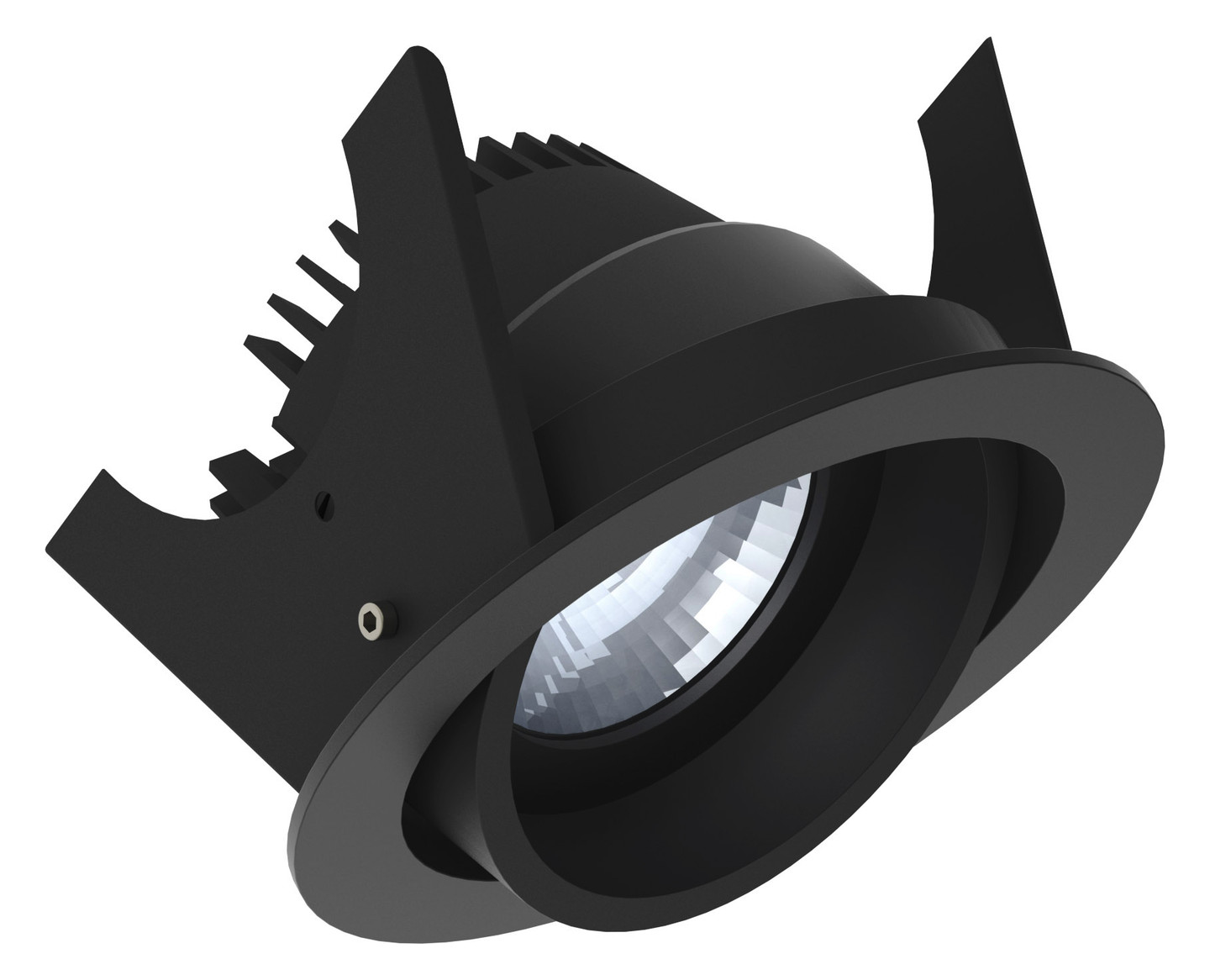

Fluxe 90 LV-TW adj – Round recessed luminaires swivel black/white 11 W 60°/80° 2.700 - 6.500 K CRI80-89

Price range: 366,52 € through 535,50 € inkl. MwSt

SKU: 847-Fluxe-90-LV-TW-adj
For more information, please refer to the data sheet!
Bitte wählen Sie oben zunächst eine Produktvariation, um nähere Details zu erfahren.
LED recessed luminaire for decorative lighting. Uniform illumination through lens, reflector or diffuser. Rotation range 350°. Swivel range 30°. Housing made of die-cast aluminum, with CS springs. Color tolerance 3 SDCM. Luminous flux decrease L90/B10 after more than 60,000h at ta 25°C. IP65 protection class for closed ceiling systems. TW range 2700-6500K. Available with DALI and CASAMBI control. 7-year warranty
Achtung: Sie sehen aktuell nur solche technischen Daten, die für alle Variationen dieses Produkts identisch sind. Bitte wählen Sie oben eine Variation aus, um genauere Angaben zu erhalten.
Weight
0,43 kg
Color

black, white

Voltage type

AC

Dimmable

Yes

Light color

white

Color temperature

2.700 – 6.500 K

Color rendering index CRI

80-89

Connection type

Plug-in terminal

Beam angle

60°, 80°

Control

Bluetooth, DALI

Suitable for surface mounting
No
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for pendant suspension
No
Suitable for ceiling mounting
Yes
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
Adjustability
pivotable
With motion detector
No
With presence detector
No
With light sensor
No
Light source
LED replaceable
With illuminant
Yes
Suitable for number of light sources
1
Version
Without
Werkstoff des Gehäuses
Aluminium
Surface protection
powder-coated
Brushed surface
No
Nominal voltage
220 - 240 V
Betriebsgerät
LED-Betriebsgerät stromgesteuert
With control gear
Yes
Replaceable operating device
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distribution
symmetrical
Beam angle
41-80° - breitstrahlend
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
not required
Ambient product after 2019/2020/EU
Yes
Rated service life L70/B50 at 25 °C
60.000 h
Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature
90 %
Luminous flux maintenance with average service life 100,000 h at 25 °C ambient temperature
UN %
Failure rate at average. Service life of 35,000 h at 25 °C ambient temp. (tq)
UN %
Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)
10 %
Failure rate with average service life of 100,000 h at 25 °C ambient temperature (tq)
UN %
Constant luminous flux control
No
Degree of protection (IP), rear
IP20
Impact resistance
IK03
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
- bis - °C
Suitable for lamp wattage
NA W
Max. System performance
11 W
Emergency power supply system
Without
Emergency function monitoring system
Without
Adjustable color temperature
stepless
Adjustable luminous flux
stepless
Luminaire luminous efficacy
114 lm/W
Power factor
0,95
Adjustable beam angle
No
Außendurchmesser
105 mm
Einbauhöhe
70 mm
Installation diameter
90 mm
Type of wiring
Conclusion
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Glow wire test according to IEC 60695-2-11
Without
Photobiological safety according to EN 62471
RG1
Suitable for VDU workstations according to EN 12464-1
No
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Color consistency (McAdam ellipse)
SDCM3
Glare limitation (UGR)
28
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Fire protection according to UK Building Regulations Part B - 30 minutes
No
Fire protection according to UK Building Regulations Part B - 60 minutes
No
Fire protection according to UK Building Regulations Part B - 90 minutes
No
