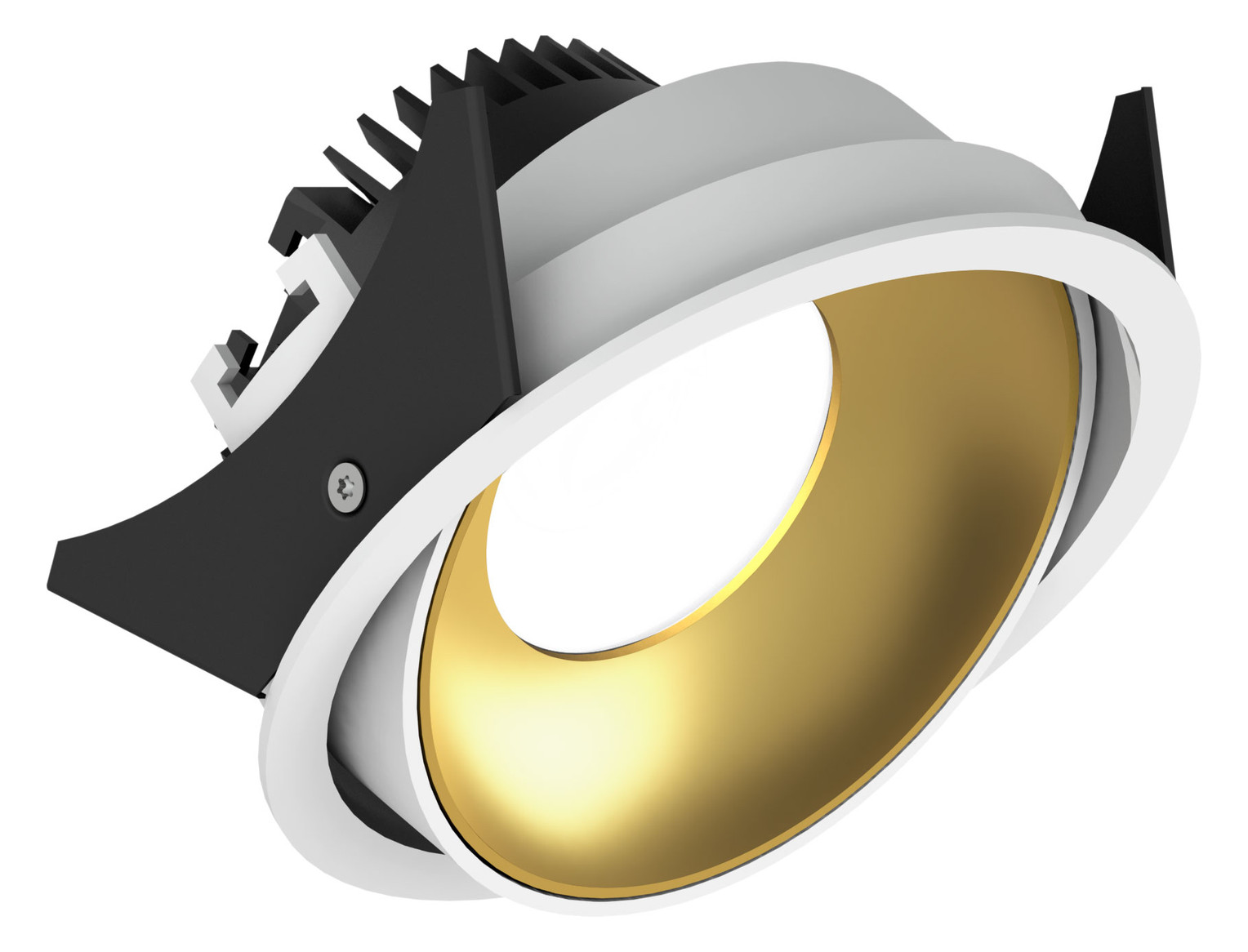

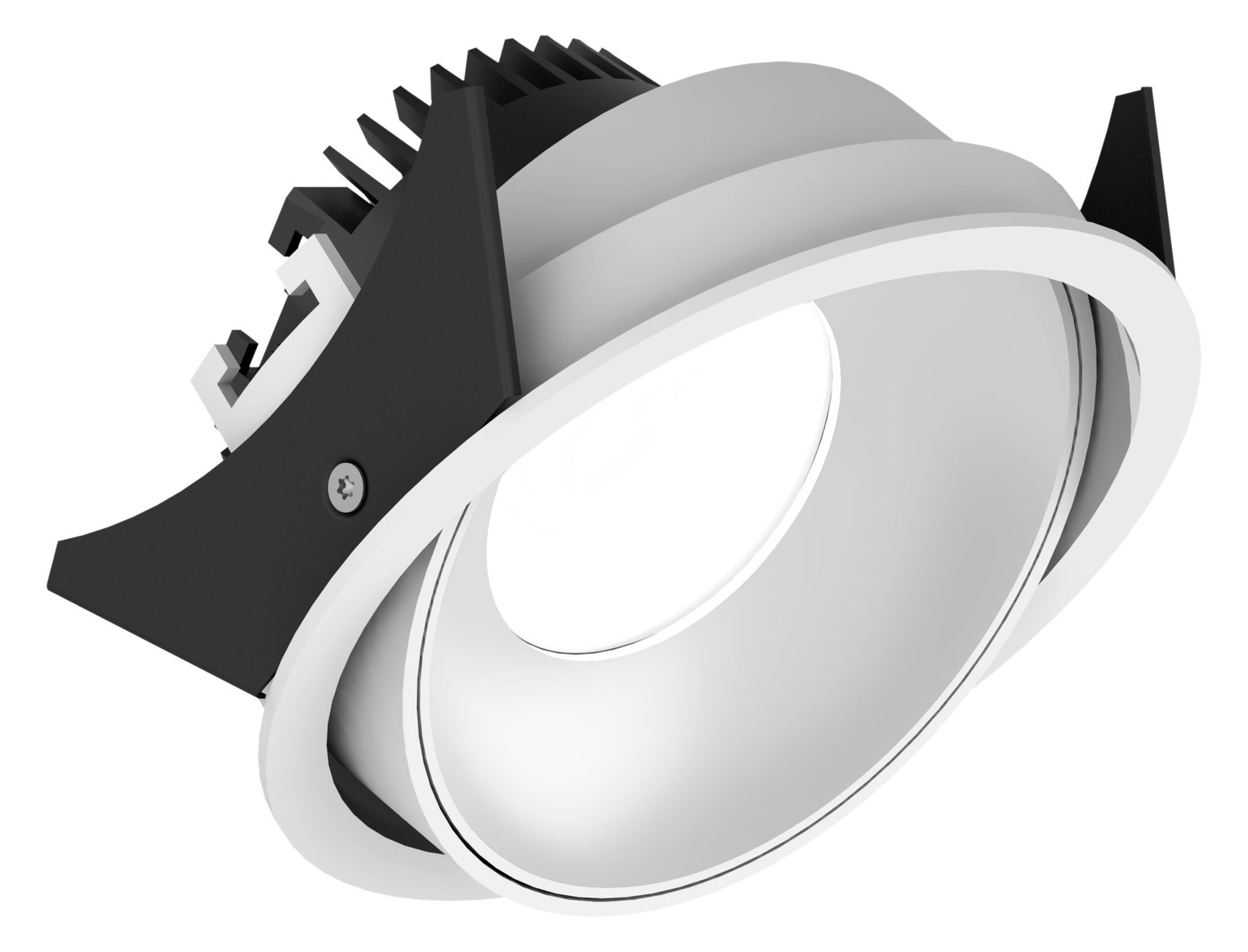

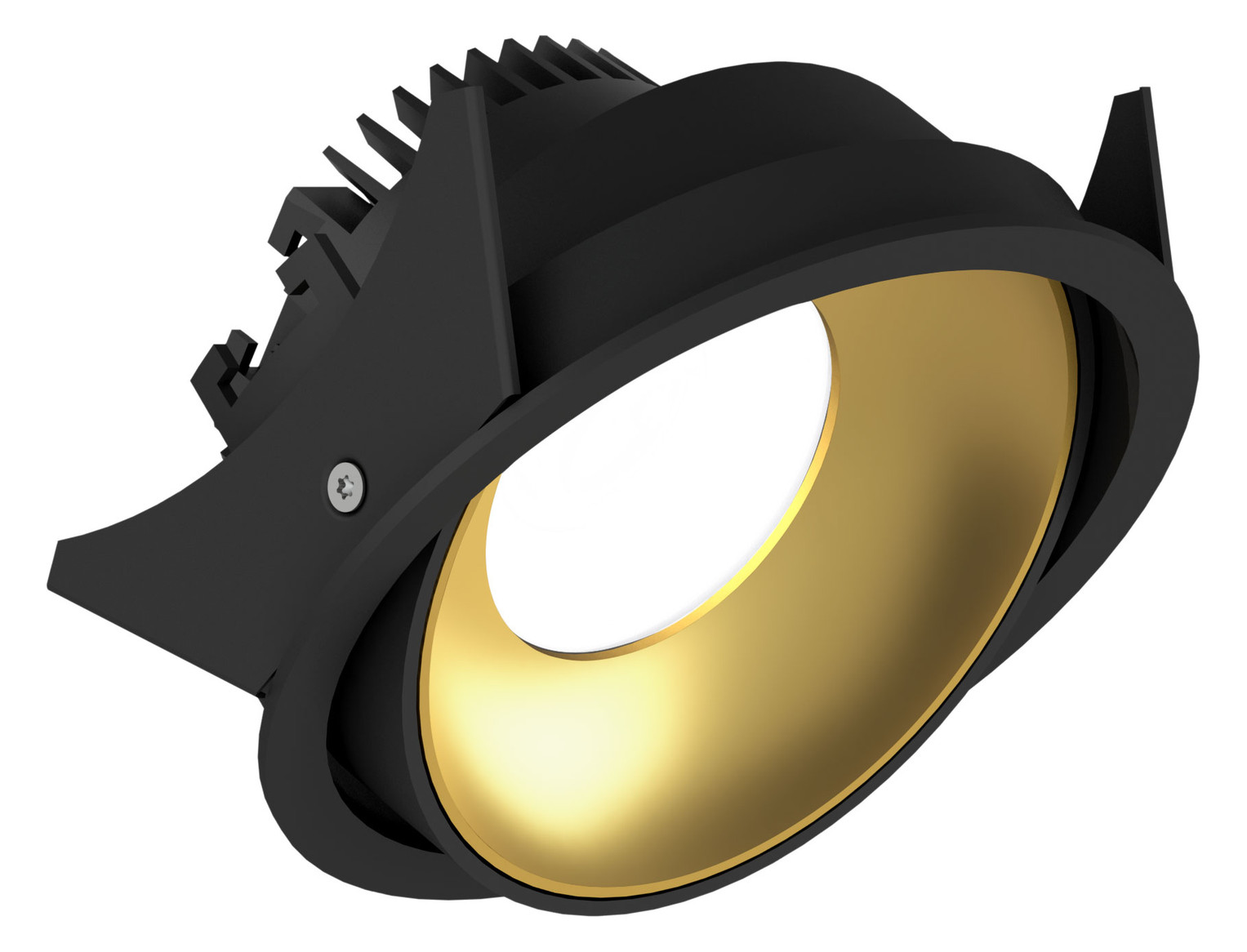

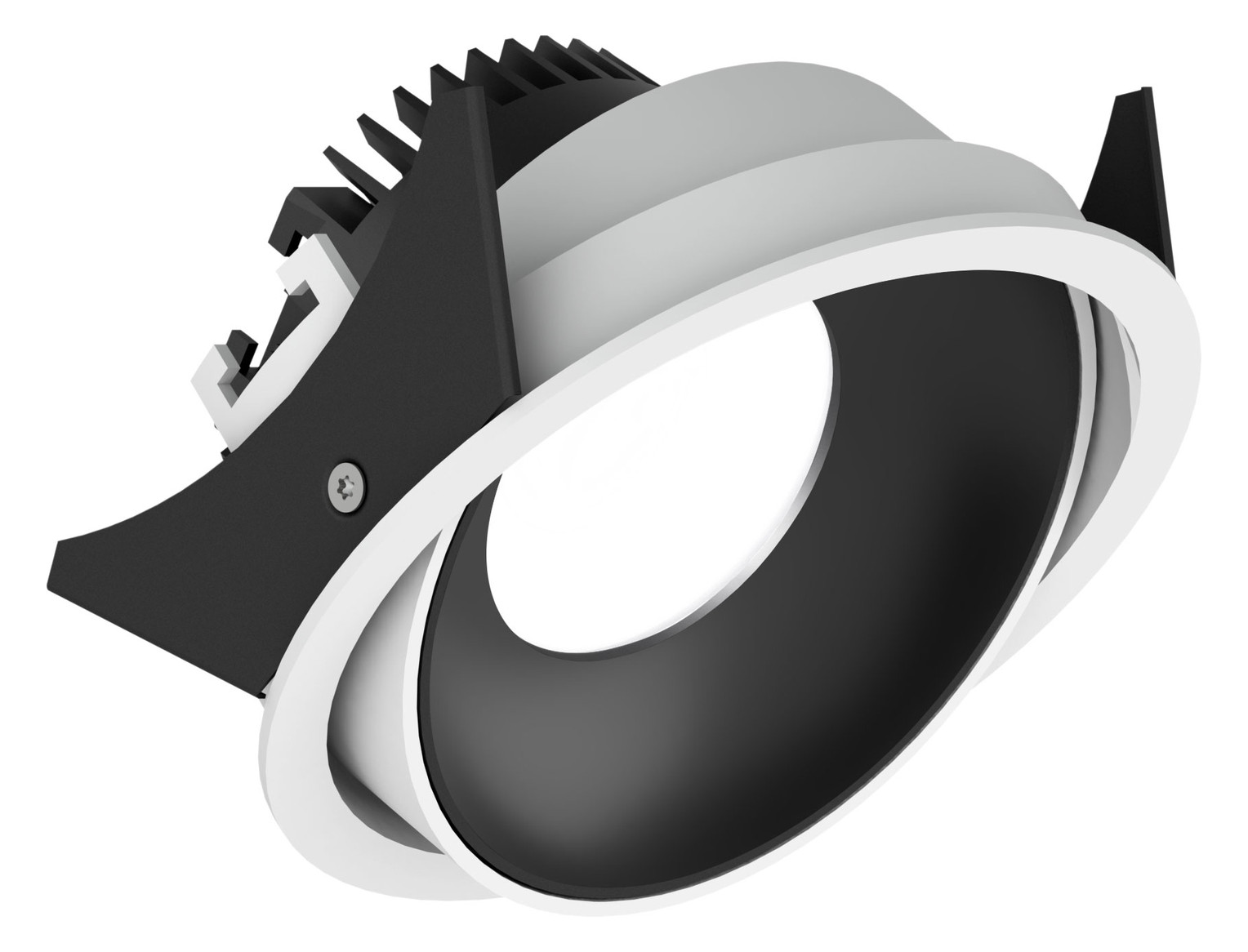

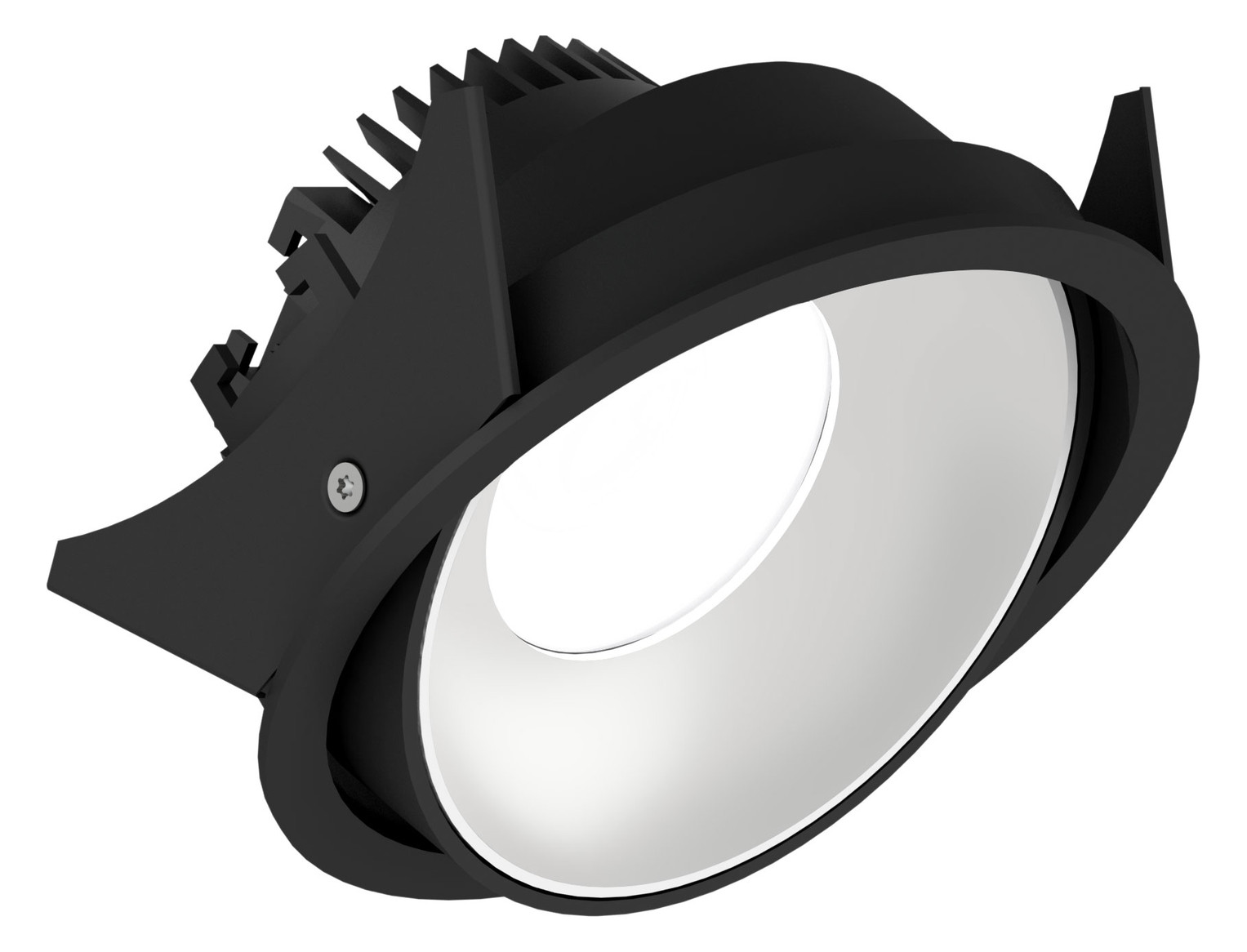

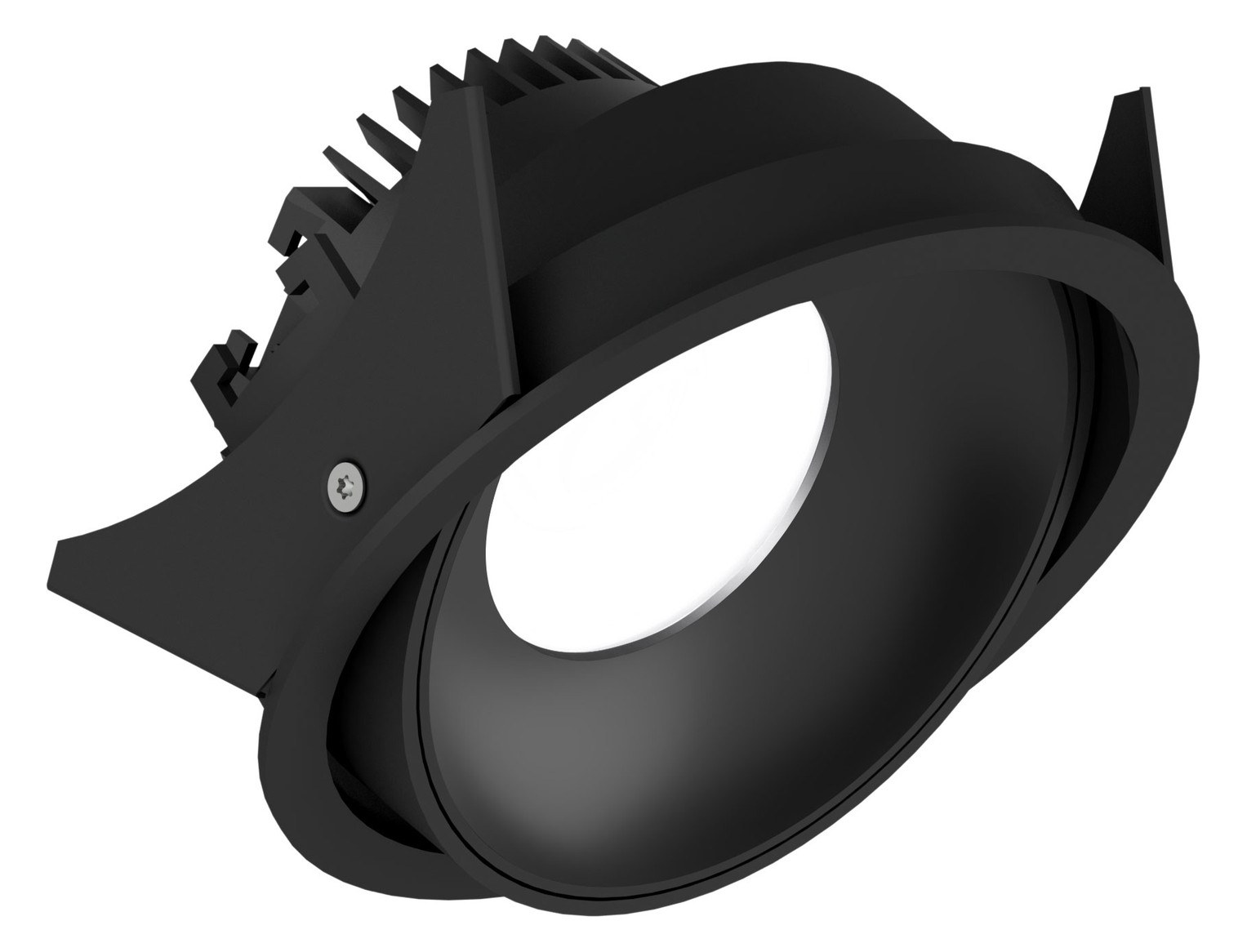

Fido 108 HV adj – Round recessed luminaires swivel

Price range: 149,94 € through 154,70 € inkl. MwSt

SKU: 847-Fido-108-HV-adj
For more information, please refer to the data sheet!
Bitte wählen Sie oben zunächst eine Produktvariation, um nähere Details zu erfahren.
LED recessed luminaire for decorative lighting. 8 combinations for housing and reflector ring. Uniform illumination through lens, reflector or diffuser. Housing made of die-cast aluminum, with CS springs. Rotation range 350°. Swivel range 30°. Color tolerance 3 SDCM. Luminous flux decrease L90/B10 after more than 60,000h at ta 25°C. IP44 protection for closed ceiling systems. 7-year warranty. Net
Achtung: Sie sehen aktuell nur solche technischen Daten, die für alle Variationen dieses Produkts identisch sind. Bitte wählen Sie oben eine Variation aus, um genauere Angaben zu erhalten.
Weight
0,395 kg
Dimensions
6,5 cm (H)
Color

black, black/gold, white, white/gold, white/black

Voltage type

AC

Dimmable

Yes

Light color

white

Color rendering index CRI

90-100

Connection type

Plug-in terminal

Color temperature

2200K – 3000K, 2700K, 3000K, 4000K

Beam angle

40°, 80°

Variant

847-F22B03655A02, 847-F22B03655B02, 847-F22B03655C02, 847-F22B03655D02, 847-F22B03655E02, 847-F22B03655F02, 847-F22B03655G02, 847-F22B03655H02, 847-F22B03765A02, 847-F22B03765B02, 847-F22B03765C02, 847-F22B03765D02, 847-F22B03765E02, 847-F22B03765F02, 847-F22B03765G02, 847-F22B03765H02, LED surface-mounted light, round 10W 2200-3000K, LED surface-mounted light, round 10W 2700K, LED surface-mounted light, round 10W 3000K, LED surface-mounted light, round 10W 4000K

Suitable for surface mounting
Yes
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for pendant suspension
No
Suitable for ceiling mounting
Yes
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
Adjustability
pivotable
With motion detector
No
With presence detector
No
With light sensor
No
Light source
LED replaceable
With illuminant
Yes
Suitable for number of light sources
1
Version
Without
Werkstoff des Gehäuses
Aluminium
Surface protection
powder-coated
Brushed surface
No
Nominal voltage
220 - 240 V
Betriebsgerät
LED-Betriebsgerät stromgesteuert
With control gear
No
Replaceable operating device
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
Yes
Phase control dimming
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
Without
Light distribution
symmetrical
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
not required
Ambient product after 2019/2020/EU
Yes
Rated service life L70/B50 at 25 °C
70.000 h
Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature
90 %
Luminous flux maintenance with average service life 100,000 h at 25 °C ambient temperature
UN %
Failure rate at average. Service life of 35,000 h at 25 °C ambient temp. (tq)
UN %
Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)
50 %
Failure rate with average service life of 100,000 h at 25 °C ambient temperature (tq)
UN %
Constant luminous flux control
No
Degree of protection (IP), rear
IP20
Impact resistance
IK03
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
- bis - °C
Suitable for lamp wattage
NA W
Max. System performance
10 W
Emergency power supply system
Without
Emergency function monitoring system
Without
Adjustable color temperature
No
Adjustable luminous flux
stepless
Power factor
0,99
Adjustable beam angle
No
Außendurchmesser
116 mm
Installation diameter
108 mm
Type of wiring
Conclusion
Number of poles
2
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Max. number of luminaires per miniature circuit breaker B16
360
Glow wire test according to IEC 60695-2-11
Without
Photobiological safety according to EN 62471
RG1
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Color consistency (McAdam ellipse)
SDCM3
Compatible with Apple HomeKit
No
Operation via Bluetooth
No
Compatible with Google Assistant
No
Compatible with Casambi
No
Compatible with Amazon Alexa
No
Fire protection according to UK Building Regulations Part B - 30 minutes
No
Fire protection according to UK Building Regulations Part B - 60 minutes
No
Fire protection according to UK Building Regulations Part B - 90 minutes
No
