6 in 1 Emergency Exit Blade - Safety Light white 2W 180° 6500K CRI70 883-09066

94,61 € inkl. MwSt

SKU: 883-09066
Datasheet: Download PDF
For more information, please refer to the data sheet!

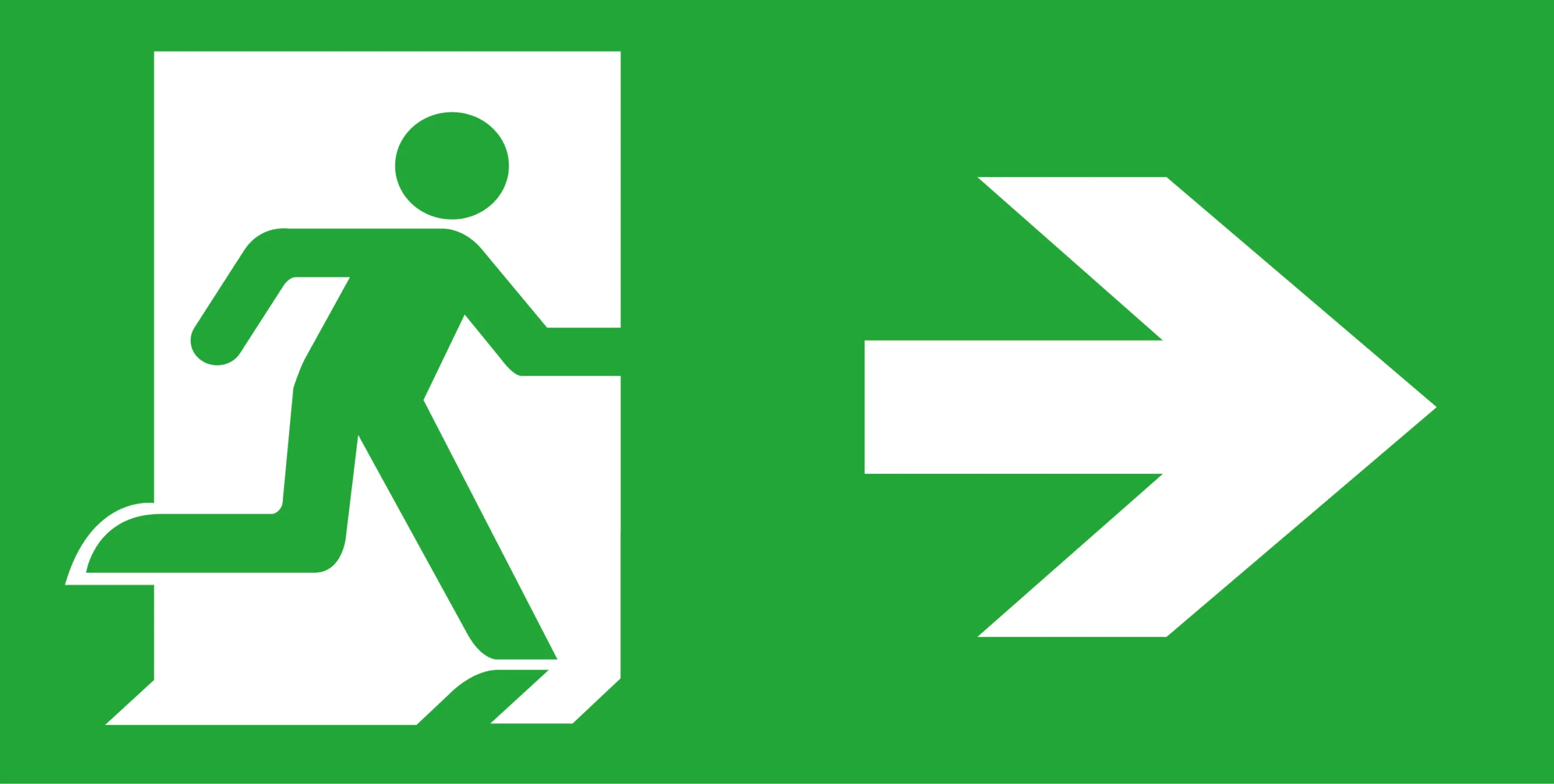

Multifunctional LED indicative or emergency light for up to 6 different applications. High quality ABS / polycarbonate housing. Suitable for extension, suspension, surface-mounting, recessed and wall mounting. At the same time indication light or 3h emergency light light. Order pictogram directional arrow left or right separately as an accessory. Self-test function. Integrated, non-dimmable control gear. 5-year warranty.
Family

6 in 1 Emergency Exit Blade

Mounting type

Assembly/Installation

Function

Escape route lighting

Type of labeling

double-sided

With pictogram

Yes

Monitoring device

other

Suitable for standby switching

Yes

Suitable for continuous switching

Yes

With remote switch connection

No

With remote control

No

Feed-in

Decentralized (single battery)

Battery condition

Lithium-ion

Light source

LED not replaceable

With illuminant

Yes

Version

Without

Number of lamp heads

1

Material of the housing

Plastic

RAL number Housing

9.010

Housing color

white

Cover material

Without cover

Voltage type

AC

Nominal voltage

220 – 240 V

Replaceable operating device

No

Light distributor

Without

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Constant luminous flux control

No

Protection class (IP)

IP20

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Max. System performance

2 W

Luminous flux in standby mode

0 lm

Color temperature

6.500 K

Detection range

1 m

Rated operating time

3 h

Width

34 mm

Height/depth

170 mm

Length

267 mm

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug connection

Datenblatt
09066.pdf09066_declaration_md52.pdfbelllighting__reach_declaration_md05.pdfausschreibungstext_09066.txt
Geeignet für Kennzeichnungsart

Acrylglasplatte

Notfunktionsüberwachungssystem

–

Notstromversorgungssystem

zentral (Zentralbatterie) und dezentral (Einzelbatterie)

Art des Lithium-Inonen-Akkus

Lithium-Eisen-Phosphat (LiFePO4)

Mit Heizelement für Akku

No

Operating device

LED control gear, current-controlled

Rated service life L70/B50 at 25 °C

NA h

Luminous flux maintenance with average service life 100,000 h at 25 °C ambient temperature

UN %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

NA %

Failure rate with average service life of 100,000 h at 25 °C ambient temperature (tq)

UN %

Protection class (NEMA)

–

Impact resistance

–

Schutzklasse nach IEC 61140

I

Rated ambient temperature according to IEC 62722-2-1

– bis – °C

Lichtstrom bei Notbetrieb

220 lm

Leistungsaufnahme im Notbetrieb

10 W

Power factor
