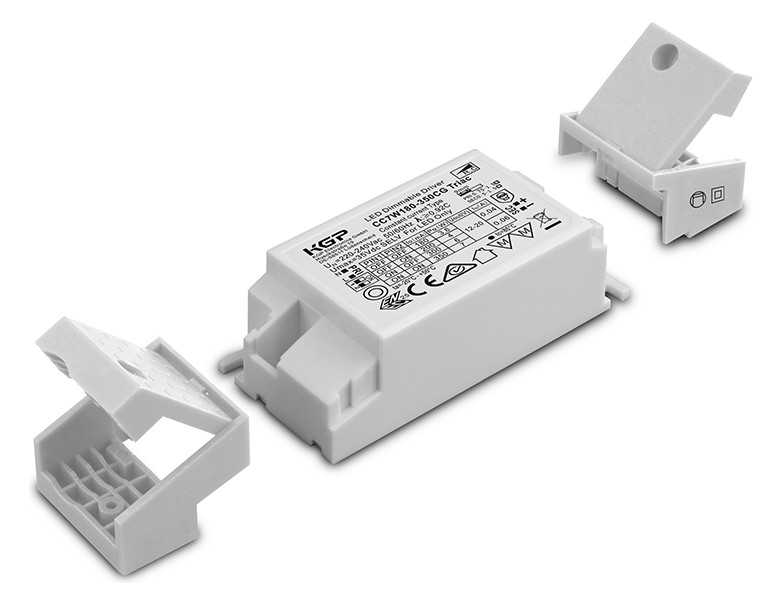

KGP LED Treiber Konstantstrom 220-240V, 50-60Hz, 180-350mA, dimmbar,-TRIAC, IP20 CC7W180-350CG TRIAC

21,78 € inkl. MwSt

2 Units in stock
SKU: CC7W180-350CG Triac
Stock: 2 Units in stock
For more information, please refer to the data sheet!
Konstantstrom LED-Treiber, Triac dimmbar, Phasenan-/abschnitt, Ausgangsstrom einstellbar via DIP-SWITCH, Ausgangsleistung bis 7, 2W, Ausgangsspannung 12-20V, bis zu 77% Effizienz, nominale Lebensdauer bis zu 50.000h, Überlastschutz, Kurzschlussschutz, Leerlaufschutz, Übertemperaturschutz, SELV, 5 Jahre Garantie
Weight
0,07 kg
Dimensions
12,2 × 4,1 × 2,3 cm (L/W/H)
Dimmable

Yes

Protection class (IP)

IP20

Execution
dynamic
Suitable for outdoor use
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming D4i
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming Mains voltage modulation
No
Dimming manufacturer-specific
No
Dimming phase cut-off
Yes
Phase control dimming
Yes
Dimming potentiometer (device-integrated)
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming with push-button
No
Dimming Zigbee
No
Constant luminous flux control
No
Housing
Plastic housing
Suitable for constant current
Yes
Suitable for constant voltage
No
Output voltage
12 - 20 V
Output current
180 - 350 mA
Suitable for DC voltage (primary side)
No
Output power
2,16 - 7 W
Input voltage
220 - 240 V
Frequency of input voltage
50 - 60 Hz
Efficiency
77 %
Working independently
Yes
Shock resistance (differential mode, L-N)
1 kV
Overload protection
Yes
Overtemperature protection
Yes
Ambient temperature
-20 - 45 °C
Short-circuit proof
Yes
Operating gear life
50.000 h
Diameter
NA mm
Operation via Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Compatible with Casambi
No
IFTTT support available
No
CC7W180-350CGTRIAC.pdf
kgp_reach_declaration_md05.pdf
