mime/linetrackcentury3_ws_md01.jpg

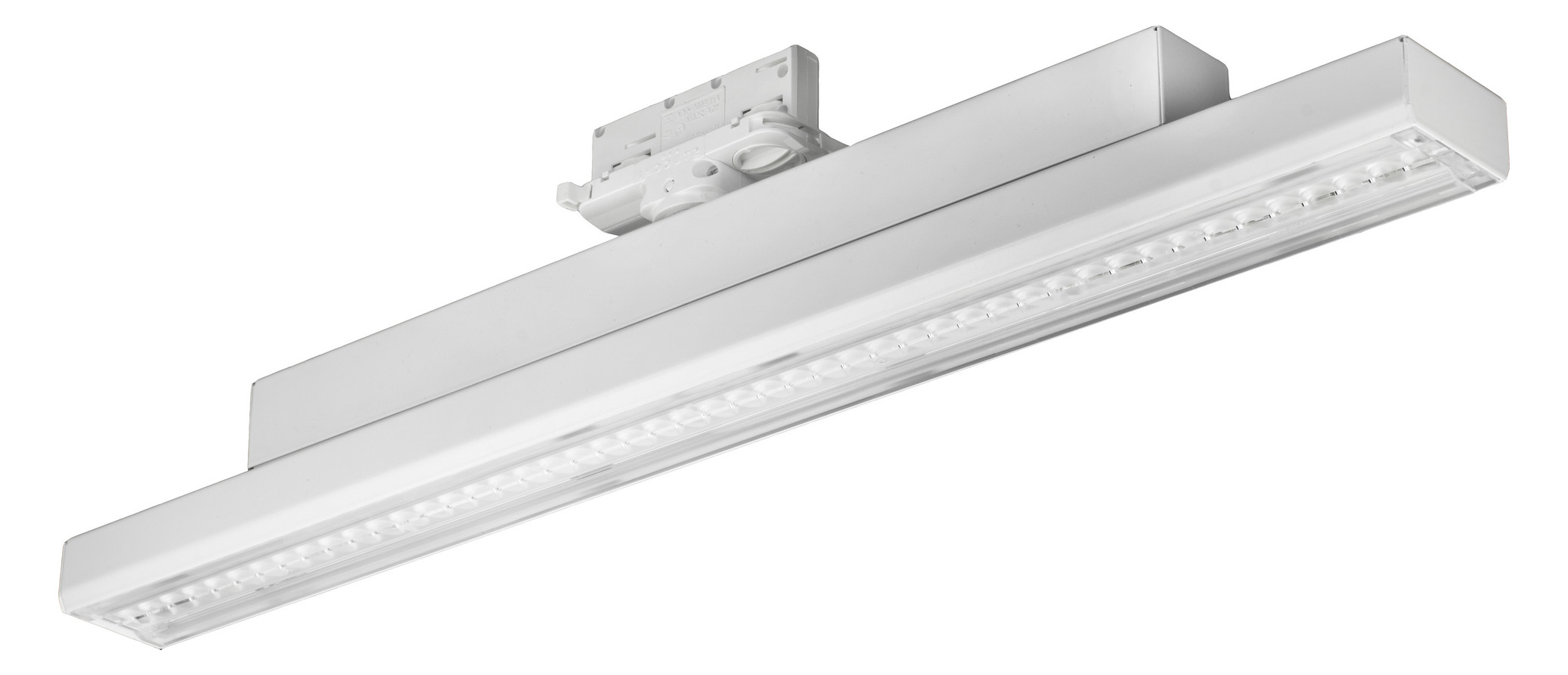

linetrackCENTURY 3 - Track spotlight linear, rotatable, swivel white 12W/14W/16W/19W 60° 779.00.91

238,00 € inkl. MwSt

SKU: 853-AA82779.00.91
Datasheet: Download PDF
For more information, please refer to the data sheet!
High quality 3 Ph linear light. Housing made of aluminum profile, powder-coated. 1-row high-quality lens optics. Swivel range 80°. Different versions of beam optics, light and housing colours. Adjustable power via DIP switch. Color tolerance 3 SDCM. Luminous flux decrease after 72,000h L80/B10 at ta 25°C. Integrated, non-dimmable control gear. DALI control on request. This luminaire contains a light source of energy efficiency class C. 5 years warranty. Adjustable power 12W/14W/16W/19W. Up to 142 lum/W
Family

linetrackCENTURY 3

Suitable for surface mounting

No

Suitable for recessed mounting

No

Suitable for wall mounting

No

Suitable for pendant suspension

No

Suitable for ceiling mounting

Yes

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

Yes

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

Rotatable and swiveling

With motion detector

No

With light sensor

No

Light source

LED replaceable

With illuminant

Yes

Suitable for number of light sources

1

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

white

Cover material

Transparent plastic

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

With control gear

Yes

Replaceable operating device

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Reflector

Without

Light distributor

Diffuser lens/optics/panel

Light distribution

symmetrical

Reflector color

other

Beam angle

41-80° – breitstrahlend

Energy efficiency class of the light source according to EU Directive 2019/2015

C

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

10 %

Constant luminous flux control

No

Protection class (IP)

IP20

Protection class

I

Max. System performance

19 W

Light color

white

Color temperature

3.000 K

Color rendering index CRI

80-89

Luminous flux

1.546 – 2.650 lm

Power factor

0,97

Adjustable color temperature

No

Adjustable luminous flux

Steps

Adjustable beam angle

No

Width

50 mm

Height/depth

80 mm

Length

575 mm

Type of wiring

Conclusion

Number of poles

3

Connection type

other

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Integrated emergency power supply

No

Glow wire test according to IEC 60695-2-11

Without

Photobiological safety according to EN 62471

RG1

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

IFTTT support available

No

Color consistency (McAdam ellipse)

SDCM3

Compatible with Apple HomeKit

No

Operation via Bluetooth

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Datenblatt
AA82779.00.91.pdfdeclaration_rohs_md49-3.pdfarclite_reach_selbstverpflichtungserklaerung_24-07-30_md05-3.pdfEU_Data_Act_ARCLITE_2026-05-3.pdfausschreibungstext_aa82779_00_91.txt
With presence detector

No

Bewegungsmelder-/Präsenzmelder-Technologie

–

Dimmable

No

Light emission

direct

Umgebendes Produkt nach 2019/2020/EU

Yes

Rated service life L70/B50 at 25 °C

UN h

Ausfallrate bei mittl. Nutzungsdauer von 35.000 h bei 25 °C Umgebungstemp. (tq)

UN %

Failure rate with average service life of 100,000 h at 25 °C ambient temperature (tq)

UN %

Schutzart (IP), Rückseite

IP20

Schutzart (IP), frontseitig

–

Protection class (NEMA)

–

Impact resistance

–

Schutzklasse nach IEC 61140

I

Rated ambient temperature according to IEC 62722-2-1

– bis – °C

Suitable for lamp wattage

NA W

Notstromversorgungssystem

Without

Notfunktionsüberwachungssystem

Without

Luminaire luminous efficacy

129 – 139 lm/W

Flicker value Pst LM
Stroboscopic effect value SVM
Connectable conductor cross-section

NA mm²

Glare limitation (UGR)
Compatible with Casambi

No

Brandschutz gemäß UK Building Regulations Teil B - 30 Minuten

No

Brandschutz gemäß UK Building Regulations Teil B - 60 Minuten

No

Brandschutz gemäß UK Building Regulations Teil B - 90 Minuten

No
