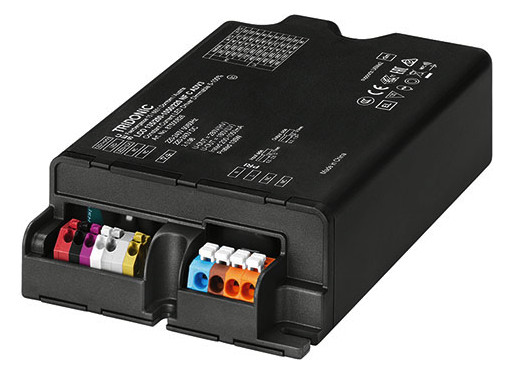

TRIDONIC LED Driver Constant Current LCO 135/200-1050/220 NF C ADV3 87500826

141,13 € inkl. MwSt

SKU: 73-87500826
Datasheet: Download PDF
For more information, please refer to the data sheet!
Dimmable constant current LED driver for luminaire installation, dimming range 5 – 100 % (min. 10 mA), For luminaires of protection class I and protection class II, temperature protection according to EN 61347-2-13 C5e, output current adjustable between 200 – 1,050 mA with NFC or ready2mains programmer, max. output power 135 W, up to 93 % efficiency, low power consumption in stand-by < 0.16 W, Nominal lifetime up to 100,000 h and 8-year warranty, Near-field communication (NFC), ready2mains (configuration via mains), U6Me2 (configuration of chronoSTEP 2 via mains), Terminals: 45° plug-in terminals, Adjustable output current in 1 mA steps (NFC, ready2mains), Programmable chronoSTEP: time and levels (NFC, U6Me2, ready2mains), Dimming via mains voltage (inputDIM), Extended Constant Light Output function (eCLO), Protection functions (overtemperature, Short circuit, overload, no-load, input voltage range, reduced surge current gain), Intelligent Temperature Guard (ITG), Intelligent Voltage Guard Plus (IVG+), Suitable for emergency lighting systems according to EN 50172, Flexible configuration via companionSUITE (NFC, ready2mains™) or U6Me2 Programmer, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses and high efficiency, In-field programming possible according to the Installation with NFC interface and ready2mains, High surge protection: up to 10 kV asymmetrical (protection class I and II), road and industry
Manufacturer

Tridonic Germany GmbH

Execution

dynamic

Suitable for outdoor use

Yes

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

200 – 1.050 mA

Suitable for DC voltage (primary side)

Yes

Output power

32,8 – 135 W

Protection class (IP)

IP20

Length

150 mm

Width

90 mm

Height

38 mm

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Datenblatt
reach_customer-information_de_20250916.pdf
Dimmable

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimmung D4i

No

DALI dimming

No

Dimming DALI-2

No

DMX dimming

No

Dimming DSI

No

Dimming LineSwitch

No

Dimming Mains voltage modulation

Yes

Dimming manufacturer-specific

Yes

Dimming phase cut-off

No

Phase control dimming

No

Dimming potentiometer (device-integrated)

No

Programmable dimming

Yes

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming with push-button

No

Dimming Zigbee

No

Output voltage

– bis – V

Input voltage

220 – 240 V

Frequenz der Eingangsspannung

0 – 60 Hz

Wirkungsgrad

93 %

Stoßfestigkeit (Gleichtaktmodus, L/N-Erde)

10 kV

PWM-Modulation

Yes

Stoßfestigkeit (Differentialmodus, L-N)

6 kV

Overload protection

Yes

Notstromversorgungssystem

Without

Overtemperature protection

Yes

Umgebungstemperatur

-40 – 70 °C

Short-circuit proof

Yes

Lebensdauer Betriebsgerät

100.000 h

Operation via Bluetooth

No

Compatible with Casambi

No
