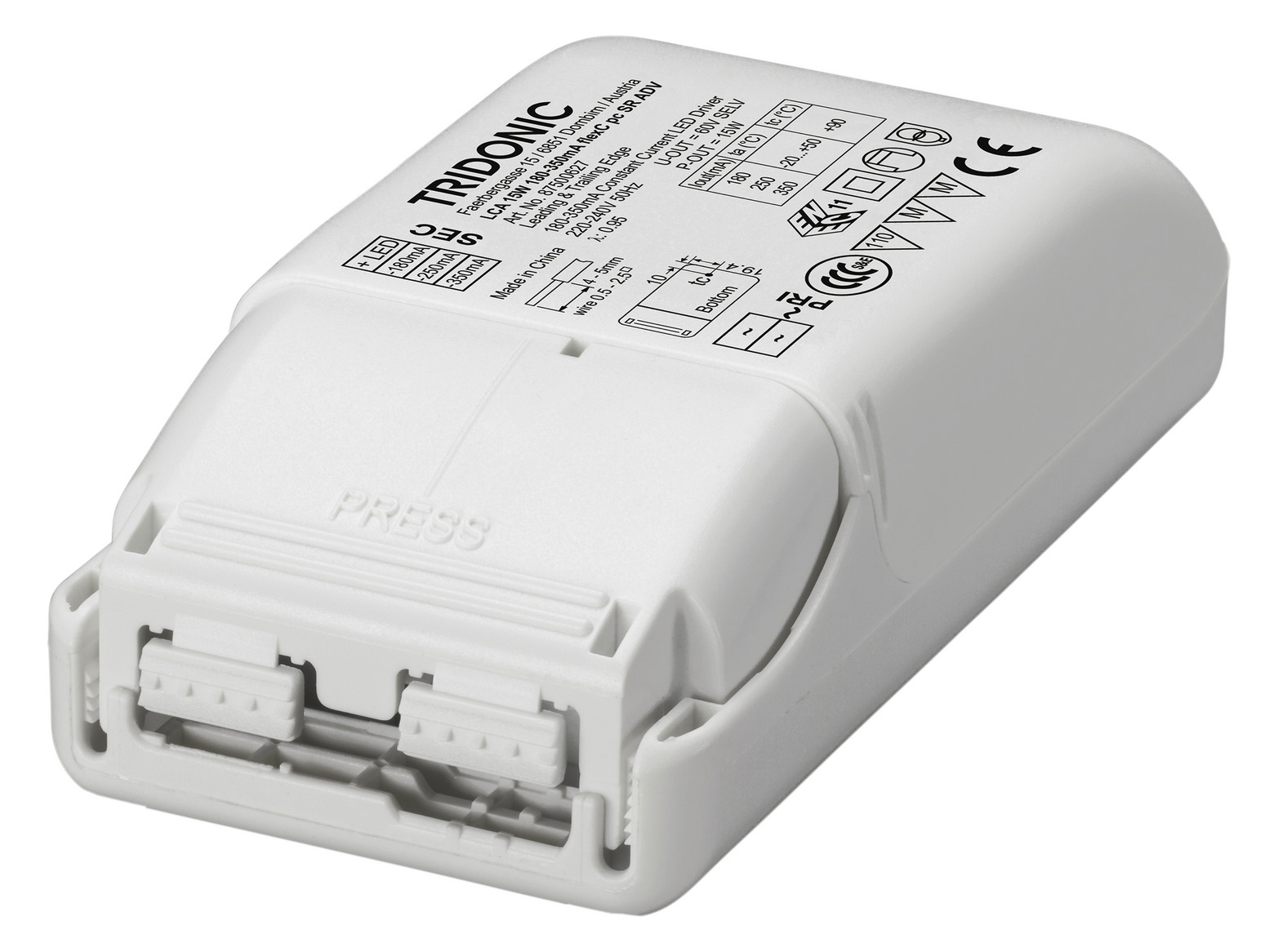

TRIDONIC LED Driver Constant Current 220-240VAC 180/250/350mA 7.6/10.5/15W Dimmable 87500627

35,22 € inkl. MwSt

SKU: 73-87500627
Datasheet: Download PDF
For more information, please refer to the data sheet!
Dimmable constant current LED driver (SELV), strain relief, output current 180, 250 or 350 mA, max. power 15 W, Up to 81 % efficiency, dimmable by means of phase and trailing edge dimmers, dimming range 5 – 100 % (depending on the dimmer), nominal service life up to 50,000 h, For luminaires of protection class I + II, For luminaires with M + MM according to EN 60598, VDE 0710 and VDE 0711, temperature protection according to EN 61347-2-13 C5e, 5 Year Warranty, Housing: Polycarbonate, White, IP20, 0° Screw Terminals, Protection against Overload, Short Circuit, Open Circuit, Overtemperature, Burst Voltages 1 kV, Surge Voltages 1 kV (between L and N), Surge Voltages 2 kV (between L/N and Earth)
Manufacturer

Tridonic Germany GmbH

Execution

dynamic

Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

Yes

Phase control dimming

Yes

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output voltage

28 – 42 V

Output current

180 – 350 mA

Suitable for DC voltage (primary side)

No

Output power

7,6 – 15 W

Protection class (IP)

IP20

Protection class

III

Length

102 mm

Width

51 mm

Height

30 mm

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Datenblatt
reach_customer-information_de_20250916.pdf
Dimmable

Yes

Dimmung D4i

No

Dimming DALI-2

No

Input voltage

220 – 240 V

Frequenz der Eingangsspannung

50 Hz

Wirkungsgrad

81 %

Stoßfestigkeit (Gleichtaktmodus, L/N-Erde)

2 kV

PWM-Modulation

No

Stoßfestigkeit (Differentialmodus, L-N)

1 kV

Overload protection

Yes

Notstromversorgungssystem

–

Overtemperature protection

Yes

Umgebungstemperatur

-40 – 80 °C

Short-circuit proof

Yes

Schutzklasse nach IEC 61140

II

Lebensdauer Betriebsgerät

50.000 h

Operation via Bluetooth

No

Compatible with Casambi

No
