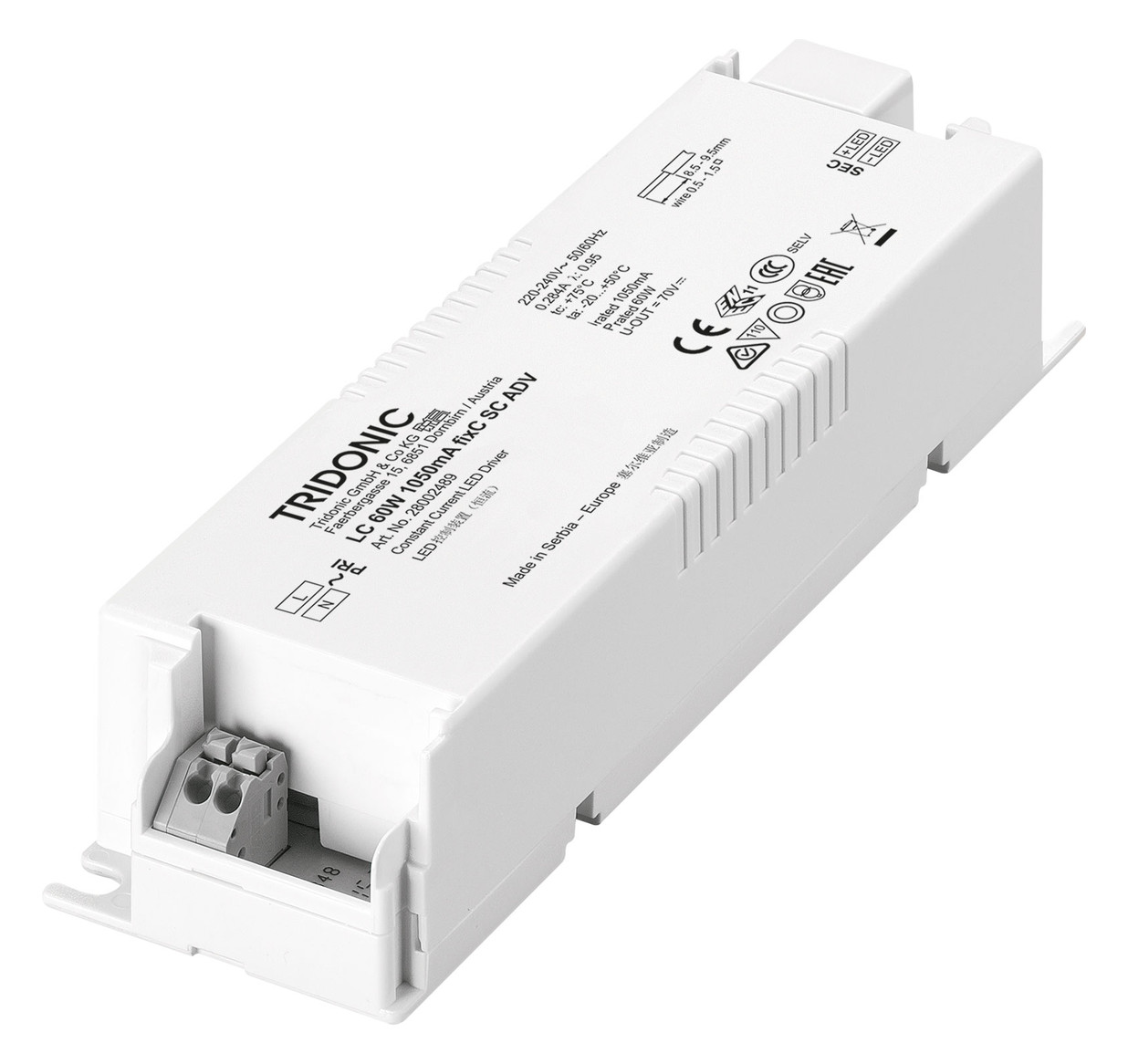

TRIDONIC LED Driver Constant Current LC 60W 1050mA fixC SC ADV 28002489

37,13 € inkl. MwSt

SKU: 73-28002489
Datasheet: Download PDF
For more information, please refer to the data sheet!
Fixed-Output LED Driver, Can be used as a luminaire installation or independent LED driver with snap-on strain relief (see accessories), Independent LED driver with cable clamps, Constant current LED driver, For Class I and Class II luminaires, Temperature protection according to EN 61347-2-13 C5e, Output current 1,050 mA, Max. output power 60 W, Nominal service life up to 50,000 h, 5-year warranty, Housing: Polycarbonate, white, IP20 protection, Over-temperature protection, Overload Protection, Short Circuit Protection, Open Circuit Protection, 1 kV Burst Voltage Protection, 1 kV Surge Voltage Protection (between L and N), 2 kV Surge Voltage Protection (between L/N and Earth)
Manufacturer

Tridonic Germany GmbH

Execution

Static

Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

1.050 mA

Suitable for DC voltage (primary side)

No

Output power

32,5 – 60 W

Protection class (IP)

IP20

Length

150 mm

Width

43 mm

Height

30 mm

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Datenblatt
reach_customer-information_de_20250916.pdf
Dimmable

No

Dimmung D4i

No

Dimming DALI-2

No

Output voltage

– bis – V

Input voltage

220 – 240 V

Frequenz der Eingangsspannung

50 – 60 Hz

Wirkungsgrad

85 %

PWM-Modulation

No

Overload protection

Yes

Notstromversorgungssystem

–

Umgebungstemperatur

-20 – 50 °C

Short-circuit proof

Yes

Lebensdauer Betriebsgerät

50.000 h

Operation via Bluetooth

No

Compatible with Casambi

No
