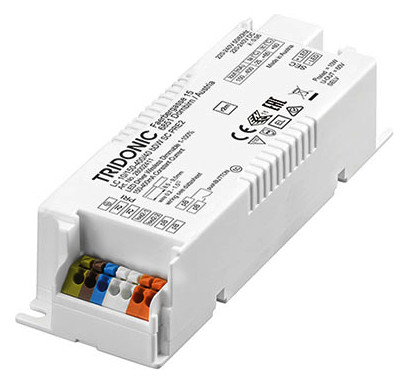

mime/ta_led_f_converter_lc_10w_150-400ma_bdw_sc_pre2_md01.jpg

TRIDONIC LED Driver Constant Current LC 10/150-400/40 bDW SC PRE2 28002411

183,02 € inkl. MwSt

SKU: 73-28002411
Datasheet: Download PDF
For more information, please refer to the data sheet!
Dimmable constant current LED driver for luminaire installation, Can be used as a luminaire installation or independent LED driver with snap-on strain relief (see accessories), Automatically establishes a wireless communication network with up to 250 nodes, Output current adjustable between 150 – 400 mA with ready2mains Programmer or I-SELECT 2 plugs, Max. output power 10 W, Up to 82% efficiency, power consumption in stand-by < 0.35 W, dimming range from 1 – 100 %, For luminaires of protection class I and protection class II, nominal service life up to 100,000 h, 5 years warranty, housing: polycarbonate, white, protection class IP20, basicDIM Wireless, ready2mains (configuration via mains), terminals: 45° plug-in terminals, adjustable output current in 1 mA steps (ready2mains, I-SELECT 2), Constant Light Output Function (CLO), Power-up Fading for AC, configuration via ready2mains, Service monitor logs specific events, Protection functions (overtemperature, short circuit, overload, no-load, input voltage range, reduced surge current gain), Suitable for emergency lighting systems according to EN 50172, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses and high efficiency, Flexible configuration via basicDIM Wireless, ready2mains and I-SELECT 2, For linear and area lighting in Office applications
Manufacturer

Tridonic Germany GmbH

Execution

dynamic

Suitable for outdoor use

No

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output current

150 – 400 mA

Suitable for DC voltage (primary side)

Yes

Output power

6 – 10 W

Protection class (IP)

IP20

Length

130 mm

Width

43 mm

Height

30 mm

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Datenblatt
reach_customer-information_de_20250916.pdf
Dimmable

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimmung D4i

No

DALI dimming

No

Dimming DALI-2

No

DMX dimming

No

Dimming DSI

No

Dimming LineSwitch

No

Dimming Mains voltage modulation

No

Dimming manufacturer-specific

No

Dimming phase cut-off

No

Phase control dimming

No

Dimming potentiometer (device-integrated)

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming with push-button

No

Dimming Zigbee

No

Output voltage

– bis – V

Input voltage

220 – 240 V

Frequenz der Eingangsspannung

0 – 60 Hz

Wirkungsgrad

82 %

Stoßfestigkeit (Gleichtaktmodus, L/N-Erde)

2 kV

PWM-Modulation

No

Stoßfestigkeit (Differentialmodus, L-N)

1 kV

Overload protection

Yes

Notstromversorgungssystem

Without

Overtemperature protection

Yes

Umgebungstemperatur

-25 – 65 °C

Short-circuit proof

Yes

Lebensdauer Betriebsgerät

100.000 h

Operation via Bluetooth

No

Compatible with Casambi

No
