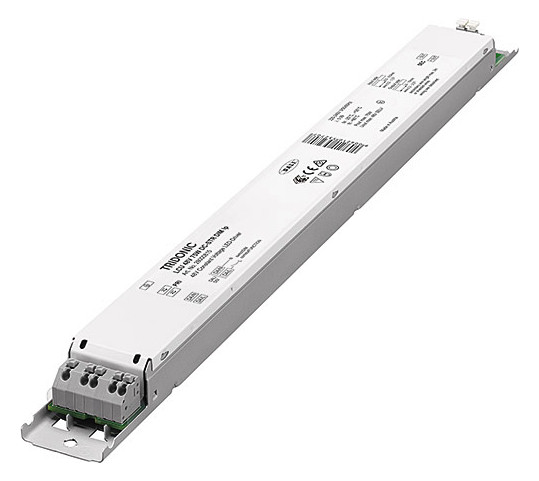

TRIDONIC LED Driver Constant Voltage LCU 48V W DC-STR DIM lp 28000815

SKU: 73-28000815
Datasheet: Download PDF
For further information, please refer to the data sheet!
Dimmable DC string constant voltage LED driver for luminaire installation, Compatible with other DC string components, Integrated DALI to DC powerline communication (PLC), one4all interface (corridorFUNCTION, switchDIM, DALI, DSI), Max output power 75 W, Up to 91% efficiency, Nominal service life up to 50,000 h, For luminaires of protection class I and protection class II, Temperature protection according to EN 61347-2-13 C5e, 5 years warranty, "Low profile" metal housing with white upper part, IP20 Rating, DC String Compatible, Intelligent Temperature Guard, Short Circuit Protection, Overload Protection
Weight
0,28 kg
Manufacturer

Tridonic Germany GmbH

Execution

dynamic

Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

Yes

Dimming DSI

Yes

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

Yes

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

No

Housing

Plastic housing

Suitable for constant current

No

Suitable for constant voltage

Yes

Suitable for DC voltage (primary side)

Yes

Protection class (IP)

IP20

Length

360 mm

Width

30 mm

Height

21 mm

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Datenblatt
28000815-1.pdf
