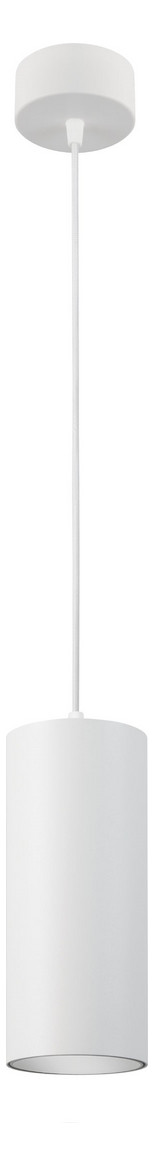

LED PRIMADONNA 3CCT – Pendelleuchten weiss 30 W 40° 3000K/3500K/4000K CRI90-100

Kein Preis verfügbar

Request quotation »There is currently no price information available for this item.
SKU: 3292030S-3CCT
For more information, please refer to the data sheet!
Elegante Pendelleuchte für Restaurants, Lobbys, Bars, Cafés, Essbereiche.. Gehäuse aus pulverbeschichtetem Aluminium. Für individuelle Lichtszenen wählbar zwischen 3000K, 3500K und 4000K. Lichtstromrückgang nach 50.000h L80/B20. Lieferung mit Track-Adapter auf Anfrage . Integriertes, nicht dimmbares Betriebsgerät. 5 Jahre Garantie. CCT 3000K/3500K/4000K. Netto 3000lm bei 4000K
Weight
1,44 kg
Dimensions
21 cm (H)
Connection type

Screw terminal

Color temperature

3.000 – 4.000 K

Protection class (IP)

IP20

Voltage type

AC

Material of the housing

Aluminum

Light source

LED replaceable

Version

Without

Housing color

white

Nominal voltage

200 – 240 V

Light color

white

Color rendering index CRI

90-100

Suitable for strip light configuration
No
Suitable for VDU workstations according to EN 12464-1
No
With illuminant
Yes
Suitable for number of light sources
1
Cover material
Transparent glass
Design of the grid
Without
With control gear
Yes
Replaceable operating device
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
DALI dimming
No
Dimming DALI-2
No
DMX dimming
No
Programmable dimming
No
Dimming DSI
No
RF dimming
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Without dimming function
Yes
Light distributor
Reflector
Reflector
high gloss
Light distribution
symmetrical
Color consistency (McAdam ellipse)
SDCM3
Energy efficiency class of the light source according to EU Directive 2019/2015
not required
Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature
80 %
Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)
20 %
Impact resistance
IK07
Protection class
II
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Suitable for emergency lighting
No
Integrated emergency power supply
No
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Max. System performance
30 W
Luminaire luminous efficacy
100 lm/W
Constant luminous flux control
No
Adjustable color temperature
Steps
Adjustable luminous flux
No
Adjustable beam angle
No
Diameter
95 mm
With suspension
Yes
Type of wiring
Conclusion
Number of poles
2
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation via Bluetooth
No
