LED PRIMADONNA 3CCT – Pendelleuchten weiss 30W 40° 3000K/3500K/4000K CRI90 3292030S-3CCT

SKU: 66-3292030S-3CCT
Datasheet: Download PDF
For further information, please refer to the data sheet!

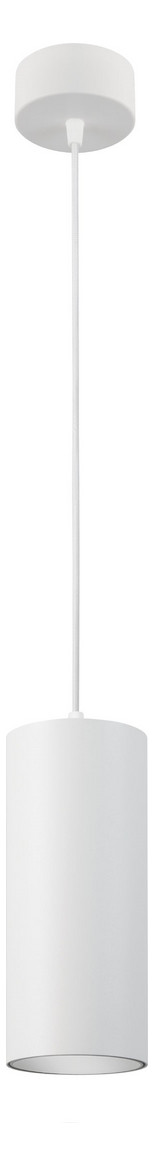

Elegante Pendelleuchte für Restaurants, Lobbys, Bars, Cafés, Essbereiche.. Gehäuse aus pulverbeschichtetem Aluminium. Für individuelle Lichtszenen wählbar zwischen 3000K, 3500K und 4000K. Lichtstromrückgang nach 50.000h L80/B20. Lieferung mit Track-Adapter auf Anfrage . Integriertes, nicht dimmbares Betriebsgerät. 5 Jahre Garantie. CCT 3000K/3500K/4000K. Netto 3000lm bei 4000K
Weight
1,44 kg
Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Light source

LED replaceable

With illuminant

Yes

Suitable for number of light sources

1

Version

Without

Material of the housing

Aluminum

Housing color

white

Cover material

Transparent glass

Design of the grid

Without

Voltage type

AC

Nominal voltage

200 – 240 V

With control gear

Yes

Replaceable operating device

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DALI-2

No

DMX dimming

No

Programmable dimming

No

Dimming DSI

No

RF dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Light distributor

Reflector

Reflector

high gloss

Light distribution

symmetrical

Color consistency (McAdam ellipse)

SDCM3

Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015

nicht erforderlich

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

20 %

Protection class (IP)

IP20

Impact resistance

IK07

Protection class

II

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Suitable for emergency lighting

No

Integrated emergency power supply

No

Glow wire test according to IEC 60695-2-11

650 °C – 30 s

Max. System performance

30 W

Light color

white

Luminaire luminous efficacy

100 lm/W

Color temperature

3.000 – 4.000 K

Color rendering index CRI

90-100

Constant luminous flux control

No

Adjustable color temperature

Steps

Adjustable luminous flux

No

Adjustable beam angle

No

Height/depth

210 mm

Diameter

95 mm

With suspension

Yes

Type of wiring

Conclusion

Number of poles

2

Connection type

Screw terminal

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Operation via Bluetooth

No

Datenblatt
3292030S-3CCT-1.pdfrelco_reach_declaration_md05-82.pdfausschreibungstext_3292030s-3cct-1.txt
