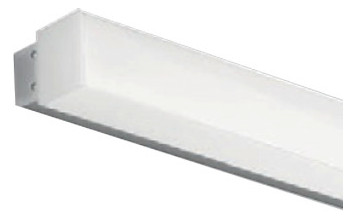

LED LINEE DI LUCE 3CCT – Aufbauleuchten linear, starr weiss 14W 110° 3000K/4000K/6000K CRI90 29056-573CCT

SKU: 66-29056-573CCT
Datasheet: Download PDF
For further information, please refer to the data sheet!
Lineare LED-Leuchte, geeignet für Räume mit hoher Luftfeuchtigkeit, wie Bäder, Küchen und andere feuchtigkeitsbelastete Bereiche. Gehäuse aus pulverbeschichtetem Aluminium. Gleichmässige Ausleuchtung durch opale Abdeckung. Wählbar zwischen 3000K, 4000K und 6000K für individuelle Lichtstimmungen. Integriertes, nicht dimmbares Betriebsgerät. 5 Jahre Garantie. CCT 3000K/4000K/6000K. Netto 1300lm bei 14W, 4000K
Weight
2 kg
Suitable for wall mounting

Yes

Suitable for pendant suspension

No

Suitable for ceiling mounting

Yes

Suitable for recessed mounting

No

Suitable for surface mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Light source

LED replaceable

With illuminant

Yes

Material of the housing

Aluminum

Surface protection housing

other

Housing color

white

Cover material

Plastic opal

Design of the grid

Without

Voltage type

AC

Nominal voltage

200 – 240 V

Operating device

LED control gear, current-controlled

With control gear

Yes

Replaceable operating device

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Light distributor

other

Light distribution

symmetrical

Beam angle

Extremely wide beam >80°

Color consistency (McAdam ellipse)

SDCM3

Light emission

direct

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

20 %

Protection class (IP)

IP44

Impact resistance

IK04

Protection class

II

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

-20 – 50 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

Mit Luftschlitzen

No

Glow wire test according to IEC 60695-2-11

850 °C – 30 s

Max. System performance

14 W

Luminaire luminous efficacy

93 lm/W

Light color

white

Color temperature

3.000 – 6.000 K

Color rendering index CRI

90-100

Constant luminous flux control

No

Height/depth

38 mm

Length

890 mm

Type of wiring

Conclusion

Number of poles

2

Connection type

Plug

Adjustable color temperature

Steps

Adjustable luminous flux

No

Adjustable beam angle

No

Operation via Bluetooth

No

Kompatibel mit Casambi

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Erfüllt min. EIA Lebensdauerkriterium L90 (bei 50.000 h bei tq = 25 °C)

No

Datenblatt
29056-573CCT-1.pdfrelco_reach_declaration_md05-84.pdfausschreibungstext_29056-573cct-1.txt
