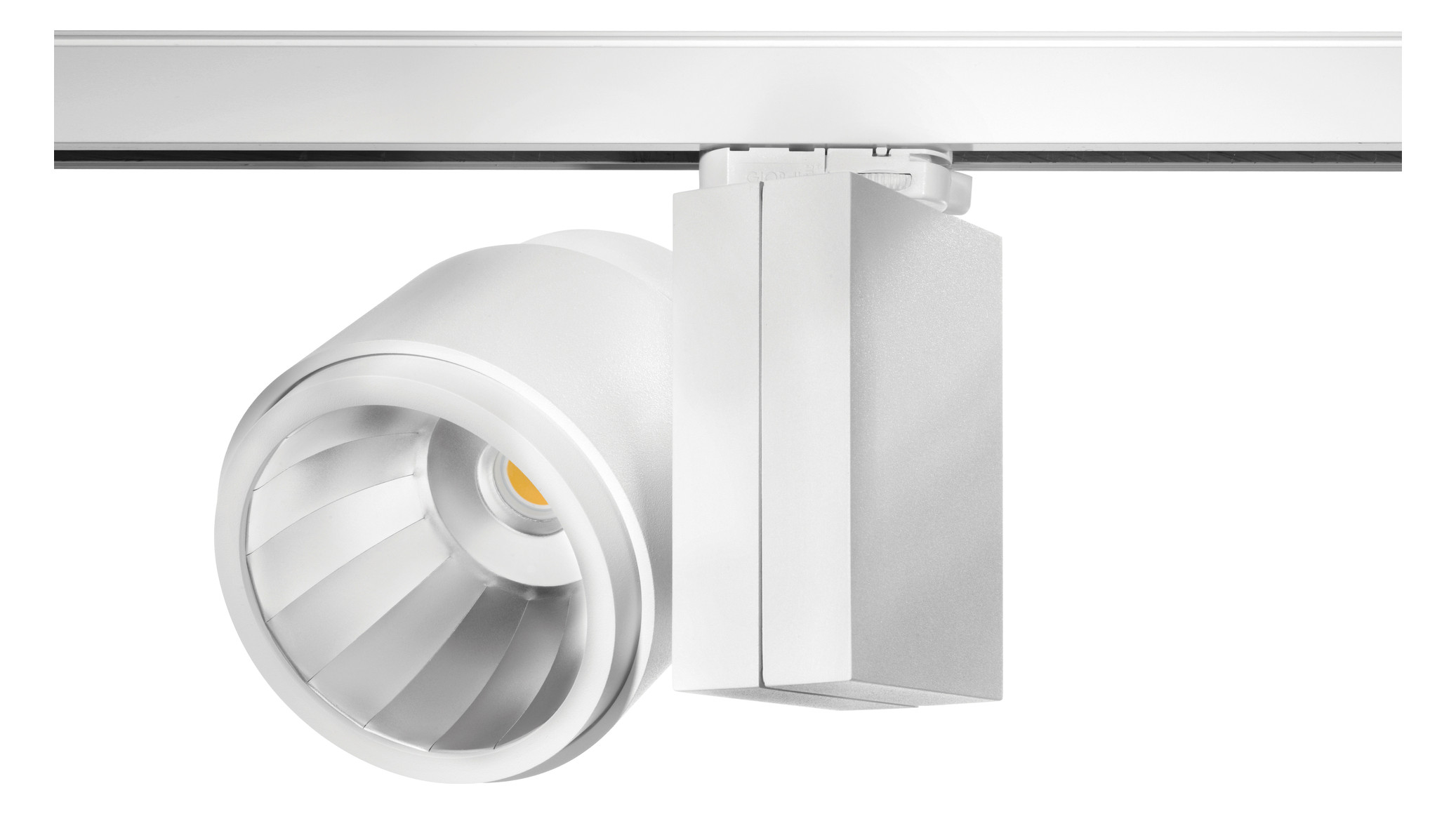

trackVISION 111 - Track spotlight rotatable-swivel white 39W 40° 3000K CRI92 AG40705.00.91

238,00 € excl. VAT

SKU: 519-AG40705.00.91
Datasheet: Download PDF
For more information, please refer to the data sheet!
Classically elegant LED track spotlight with vertical control gear for high demands. Ultra reflector technology. Rotation range 350°. Swivel range 90°. Color tolerance 2 SDCM. Luminous flux decrease after 66,000h L90/B10. Universal rail adapter. Integrated, non-dimmable control gear. Other product configurations on request. 5-year warranty.
Family

trackVISION 111

Suitable for surface mounting

No

Suitable for recessed mounting

No

Suitable for wall mounting

No

Suitable for pendant suspension

No

Suitable for ceiling mounting

Yes

Suitable for truss mounting

No

Suitable for platform/floor mounting

No

Suitable for busbar mounting

Yes

Suitable for clamp mounting

No

Suitable for cable system

No

Adjustability

Rotatable and swiveling

With motion detector

No

With light sensor

No

Light source

LED replaceable

With illuminant

Yes

Suitable for number of light sources

1

Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

white

Cover material

Transparent glass

Brushed surface

No

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

With control gear

Yes

Replaceable operating device

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Reflector

dull

Light distributor

Reflector

Light distribution

symmetrical

Reflector color

silver

Beam angle

21-40° – mediumstrahlend

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

90 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

10 %

Constant luminous flux control

No

Protection class (IP)

IP20

Protection class

I

Max. System performance

39 W

Light color

white

Color temperature

3.000 K

Color rendering index CRI

90-100

Luminous flux

5.210 lm

Power factor

0,96

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Stroboscopic effect value SVM

0,4

Width

186 mm

Height/depth

150 mm

Outer diameter

129 mm

Type of wiring

Conclusion

Number of poles

3

Connection type

other

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Max. Number of lights Circuit breaker C16

83

Integrated emergency power supply

No

Glow wire test according to IEC 60695-2-11

Without

Luminaire luminous efficacy

134 lm/W

Photobiological safety according to EN 62471

RG1

Suitable for VDU workstations according to EN 12464-1

No

Covering the luminaire with thermal insulation material possible

No

IFTTT support available

No

Color consistency (McAdam ellipse)

SDCM2

Compatible with Apple HomeKit

No

Operation via Bluetooth

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Datenblatt
declaration_rohs_md49-589.pdfarclite_reach_selbstverpflichtungserklaerung_24-07-30_md05-607.pdfEU_Data_Act_ARCLITE_2026-05-589.pdfausschreibungstext_ag40705_00_91.txt
Energy efficiency class of the light source according to EU Directive 2019/2015

not required

With presence detector

No

Dimmable

No

Light emission

direct

Umgebendes Produkt nach 2019/2020/EU

Yes

Rated service life L70/B50 at 25 °C

UN h

Luminous flux maintenance with average service life 100,000 h at 25 °C ambient temperature

UN %

Ausfallrate bei mittl. Nutzungsdauer von 35.000 h bei 25 °C Umgebungstemp. (tq)

UN %

Failure rate with average service life of 100,000 h at 25 °C ambient temperature (tq)

UN %

Schutzart (IP), Rückseite

IP20

Schutzart (IP), frontseitig

–

Protection class (NEMA)

–

Impact resistance

–

Schutzklasse nach IEC 61140

I

Rated ambient temperature according to IEC 62722-2-1

– bis – °C

Suitable for lamp wattage

NA W

Notstromversorgungssystem

Without

Notfunktionsüberwachungssystem

Without

Conductor cross-section

UN mm²

Connectable conductor cross-section

NA mm²

Max. Anzahl der Leuchten pro Leitungsschutzschalter B16

49

Max. Anzahl der Leuchten pro Leitungsschutzschalter C16

83

Compatible with Casambi

No

Brandschutz gemäß UK Building Regulations Teil B - 30 Minuten

No

Brandschutz gemäß UK Building Regulations Teil B - 60 Minuten

No

Brandschutz gemäß UK Building Regulations Teil B - 90 Minuten

No
