LED Replacement for KLLni with 2pol. GR8 socket for operation on KVG/VVG and mains voltage
5. August 2026
ledvance/asset-13219920.jpg

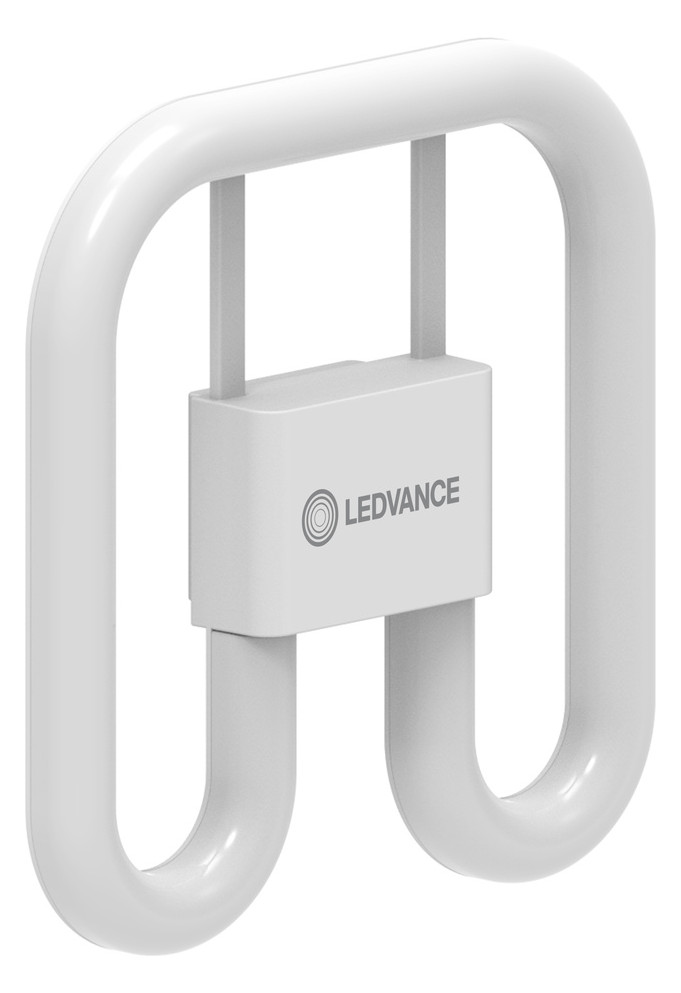

LED Replacement for KLLni with 2pol. GR8 socket for operation on KVG/VVG and mains voltage

8,87 € inkl. MwSt

SKU: 02-4099854501739
For more information, please refer to the data sheet!
LED Replacement for KLLni with 2pol. GR8 socket for operation on KVG/VVG and mains voltage. Product features: LED replacement for conventional compact fluorescent lamps in KVG luminaires or on mains voltage. Service life up to 30,000 h. Single-sided GR8 2-pin socket. Degree of protection: IP20. Mercury-free lamps. Product advantages: Easy installation. Low energy consumption. Easy lamp replacement thanks to compact design. Operation directly at 230 V mains voltage possible. Areas of application: General lighting in ambient temperatures of -20...+45 °C. Supermarkets and department stores. Corridors and corridors. Hotels, Restaurants. Safety instructions: Not suitable for tandem operation. The operating temperature range of the DULUX LED is limited. If there are any doubts about the suitability of the application, please measure the Tc temperature on the product before installation. All electrical connections may only be made by qualified personnel. Do not touch lamp with bare fingers. Operation with defective outer piston not permitted. Lamp is not suitable for emergency lighting operation.
Weight
0,068 kg
Dimensions
13,71 cm (L)
Protection class (IP)

IP20

Housing color

white

Dimmable

No

Color temperature

4.000 K

Color rendering index CRI

80-89

Nominal voltage

220 – 240 V

Voltage type

AC

Color

white

Beam angle

130 °

Rated current
30 mA
Lamp wattage
7 W
Suitable for ECG
No
Suitable for magnetic ballast
Yes
Luminous flux
800 lm
Rated luminous flux according to IEC 62612
800 lm
Lamp luminous efficacy
114 lm/W
Lamp shape
Tube, single-ended
Filament lamp
No
Material Bulb
Plastic
Glass/cover version
frosted
Light color according to EN 12464-1
neutral white 3300 to 5300 K
Base
GR8
Color consistency (McAdam ellipse)
SDCM6
Dimming phase cut-off
No
Phase control dimming
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
Diameter
134 mm
Energy efficiency class according to EU Directive 2019/2015
E
Distortion factor (THD)
30 %
Min. number of switching operations
200.000
Weighted energy consumption in 1,000 hours
7 kWh
Average rated service life
30.000 h
Remote control possible
No
With motion detector
No
With remote control
No
With twilight switch
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
