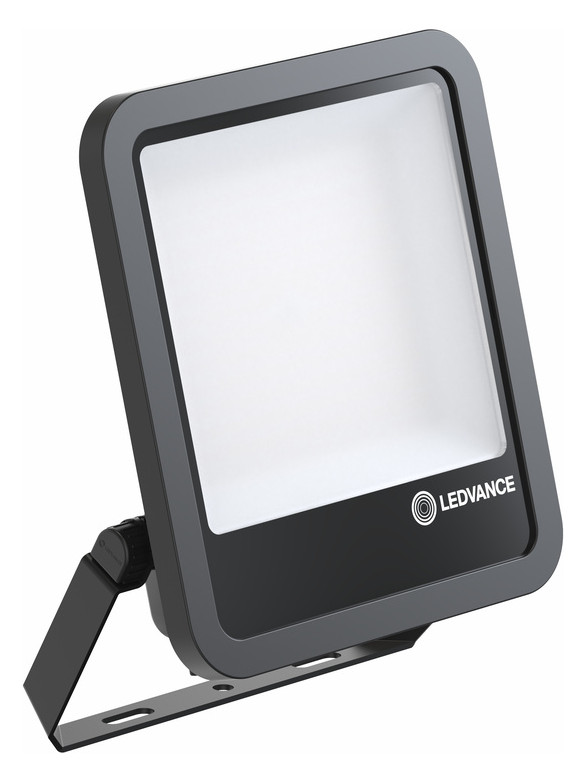

Versatile floodlights with up to 15000 lm luminous flux

145,05 € inkl. MwSt

SKU: 02-4099854306327
For more information, please refer to the data sheet!
Versatile floodlights with up to 15000 lm luminous flux. Product features: High luminous efficiency: up to 150 lm/W. Degree of protection: IP66. Pre-installed, flexible cable (H05RN-F) with 1 m length, 3 x 1.0 mm? crimped. Reflector-based, symmetrical light distribution with 100° x 100° beam angle. Mounting bracket with 30° angle and large rotation range. Product advantages: Climate membrane for optimized air exchange, with a consistently high degree of IP protection. Very versatile thanks to a wattage setting (multi lumens) that can be selected on the housing. Robust cable gland with integrated waterstop function. Safe and very uniform illumination, thanks to opal, tempered glass diffuser. Bright, robust and durable. Energy savings of up to 90% compared to halogen lamp floods. No light emission in the upper half-space (ULOR 0%) at 0° inclination. Areas of application: Replacement for floodlights with halogen lamps. Outdoor use (IP66). D-mark according to EN 60598-2-24 for business premises at risk of fire, e.g. due to accumulation of dust. Public space. Illumination of facades. Sites. Parking place.
Weight
2,82 kg
Dimensions
100 × 5,5 × 34,3 cm (L/W/H)
Connection type

Plug-in terminal

Color rendering index CRI

80-89

Adjustability

pivotable

Light source

LED not replaceable

Version

Without

Material of the housing

Aluminum

Housing color

black

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

EVG

Dimmable

No

Color temperature

6.500 K

Suitable for surface mounting
Yes
Suitable for recessed mounting
No
Suitable for wall mounting
Yes
Suitable for pendant suspension
No
Suitable for ceiling mounting
No
Suitable for truss mounting
No
Suitable for platform/floor mounting
Yes
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
With motion detector
No
With light sensor
No
With illuminant
Yes
Suitable for number of light sources
0
Surface protection
powder-coated
Cover material
Glass opal
Brushed surface
No
Rated current
443 - 368 mA
With control gear
Yes
Replaceable operating device
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
dull
Light distributor
Reflector
Light distribution
symmetrical
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
C
Ambient product after 2019/2020/EU
Yes
Distortion factor (THD)
20 %
Rated service life L70/B50 at 25 °C
100.000 h
Constant luminous flux control
No
Impact resistance
IK08
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
-30 - 50 °C
Max. System performance
100 W
Adjustable color temperature
No
Rated luminous flux according to IEC 62722-2-1
15.000 - 12.500 lm
Adjustable luminous flux
No
Luminaire luminous efficacy
150 lm/W
Adjustable beam angle
No
Type of wiring
Conclusion
Number of poles
3
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
Yes
Max. number of luminaires per miniature circuit breaker B16
5
Max. number of luminaires per miniature circuit breaker C16
9
Photobiological safety according to EN 62471
RG1
Suitable for VDU workstations according to EN 12464-1
No
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Color consistency (McAdam ellipse)
SDCM5
Compatible with Apple HomeKit
No
Operation via Bluetooth
No
Compatible with Google Assistant
No
Compatible with Casambi
No
Compatible with Amazon Alexa
No
