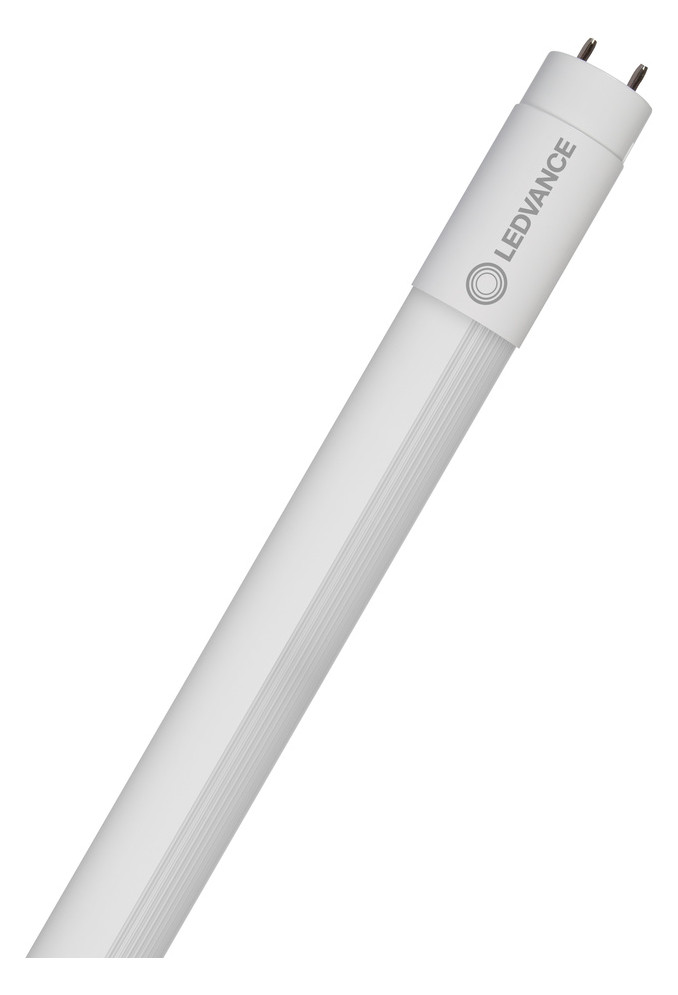

High-performance LED tubes for electromagnetic ballasts (KVG/WG) and mains voltage, and for high-bay applications

36,57 € inkl. MwSt

SKU: 02-4099854258671
For more information, please refer to the data sheet!
High-performance LED tubes for electromagnetic ballasts (KVG/WG) and mains voltage, and for high-bay applications. Product features: LED replacement for conventional T8 fluorescent lamps with G13 base in KVG luminaires or on mains voltage. Narrow beam angle: 90°. Low flicker according to EU 2019/2020 (SVM ?0.4 / PstLM ? 1). ENEC 10 VDE mark. Service life: up to 75,000 h. Degree of protection: IP20. Mercury-free and RoHS compliant. Product advantages: Very high illuminance compared to standard LED tubes. Very high switching strength. High luminous flux for demanding lighting tasks. Simple, fast and safe lamp replacement without rewiring. Energy savings of up to 62% (compared to T8 fluorescent lamps). Full brightness without a warm-up phase, making it ideal in combination with sensors. Also suitable for operation at low temperatures. Areas of application: General lighting in ambient temperatures of -20...+50 °C. Storage areas (high-bay warehouse). Lighting in industrial production. Industry. Technical equipment: Replacement starter for LED tubes.
Weight
0,32 kg
Dimensions
151,4 cm (L)
Protection class (IP)

IP20

Dimmable

No

Beam angle

90 °

Housing color

white

Color temperature

4.000 K

Color rendering index CRI

80-89

Nominal voltage

220 V

Voltage type

AC

Color

white

Rated current
105 mA
Power factor
0,9
Lamp wattage
22,1 W
Suitable for ECG
No
Suitable for magnetic ballast
Yes
Luminous flux
4.100 lm
Rated luminous flux according to IEC 62612
4.100 lm
Lamp luminous efficacy
185 lm/W
Lamp shape
Tube, double-ended
Filament lamp
No
Material Bulb
Plastic
Glass/cover version
frosted
Light color according to EN 12464-1
neutral white 3300 to 5300 K
Base
G13
Color consistency (McAdam ellipse)
SDCM5
Dimming phase cut-off
No
Phase control dimming
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
Diameter
28 mm
Energy efficiency class according to EU Directive 2019/2015
B
Lamp designation
T8
Distortion factor (THD)
11 %
Min. number of switching operations
200.000
Weighted energy consumption in 1,000 hours
23 kWh
Average rated service life
75.000 h
Remote control possible
No
With motion detector
No
With remote control
No
With twilight switch
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
