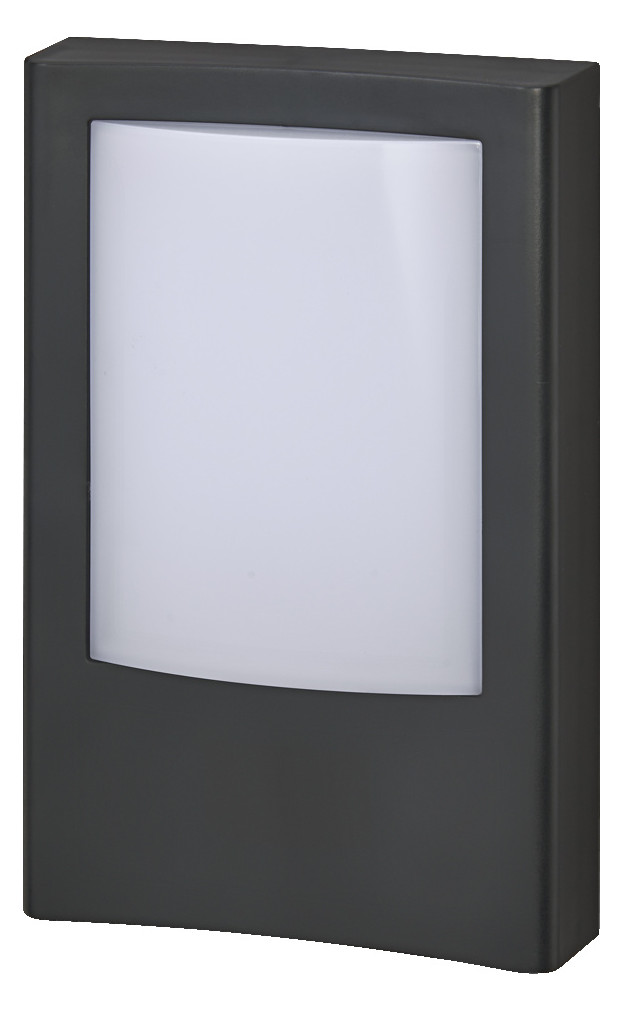

Dark grey wall lights for house entrances with frosted diffuser and optional sensor

SKU: 02-4099854185328
Datasheet: Download PDF
For more information, please refer to the data sheet!
Dark grey wall lights for house entrances with frosted diffuser and optional sensor. Product features: Option with PIR motion detector and daylight sensor, available to match the housing color. Degree of protection: IP44. ABS housing. Polycarbonate diffuser (PC). Product advantages: Easy and quick installation. High-quality materials. Areas of application: Garages. Gains. Technical equipment: Full mounting and connection accessories included. Including mounting screws and dowels.
Weight
0,64 kg
Suitable for wall mounting

Yes

Suitable for pendant suspension

No

Suitable for ceiling mounting

No

Suitable for recessed mounting

No

Suitable for surface mounting

Yes

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Light source

LED not replaceable

With illuminant

Yes

Suitable for number of light sources

0

Material of the housing

Aluminum

Housing color

gray

Cover material

Plastic opal

Design of the grid

dull

Voltage type

AC

Nominal voltage

220 – 240 V

Rated current

65 mA

Operating device

EVG

With control gear

Yes

Replaceable operating device

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Color consistency (McAdam ellipse)

SDCM6

Light emission

direct

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Rated service life L70/B50 at 25 °C

50.000 h

Max. Number of lights Circuit breaker C16

200

Protection class (IP)

IP44

Impact resistance

IK05

Protection class

I

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

-20 – 40 °C

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

With light sensor

No

Covering the luminaire with thermal insulation material possible

No

With air vents

No

Max. System performance

12,5 W

Luminaire luminous efficacy

72 lm/W

Rated luminous flux according to IEC 62722-2-1

900 lm

Light color

white

Color temperature

3.000 K

Color rendering index CRI

80-89

Power factor

0,8

Constant luminous flux control

No

Width

62 mm

Height/depth

235 mm

Length

150 mm

Type of wiring

Conclusion

Number of poles

3

Connection type

Plug-in terminal

Photobiological safety according to EN 62471

RG0

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Operation via Bluetooth

No

Compatible with Casambi

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)

No
