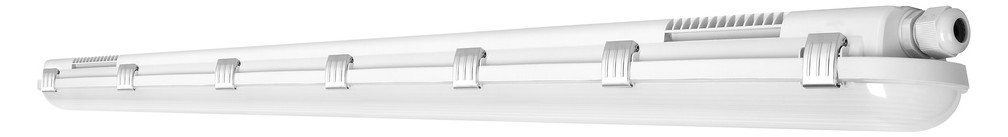

Feuchtraumleuchten, klassische Bauform mit Hochfrequenzsensor

44,78 € inkl. MwSt

SKU: 4058075836082
For more information, please refer to the data sheet!

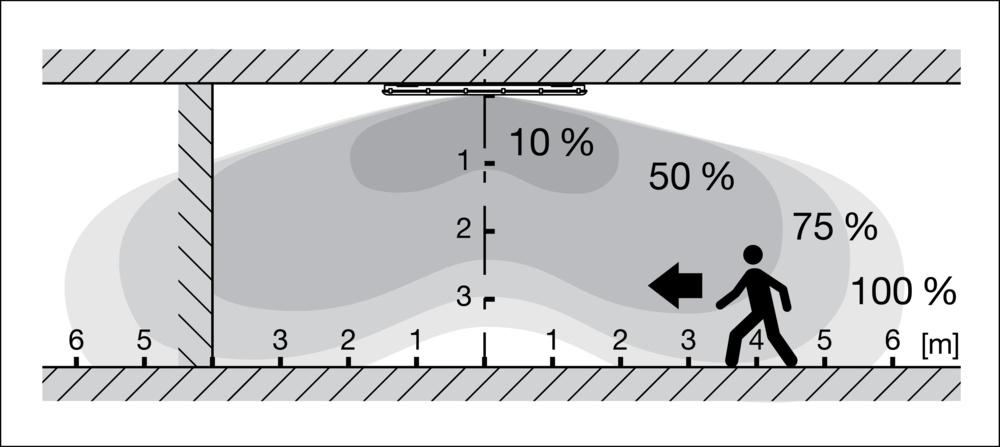

Feuchtraumleuchten, klassische Bauform mit Hochfrequenzsensor. Produkteigenschaften: Hochfrequenzsensor für Tageslicht- und Bewegungserfassung. Sensor mit Master-Slave und Master-Master Funktionalität. Hohe Lichtausbeute: bis zu 139 lm/W. Ausstrahlungswinkel: 110°. Produktvorteile: Installation einer größeren Anzahl von Sensor-gesteuerten Leuchten möglich dank der Master-Slave und Master-Master Funktionalität. Mehrfache Einstellmöglichkeiten von Sensorbereich, Tageslichterkennung und Haltezeit. Flimmerarmes Licht ≤ 10 %. Einfache Installation, werkzeugloser Anschluss. 5 Jahre Garantie. Anwendungsgebiete: Industrie- und Lagerareale. Parkplätze und Unterführungen. Garagen. Werkstätten, Fertigungsstraßen. Technische Ausstattung: Haltebügel, Diebstahlschutz, Abhängebügel, zweite Kabelverschraubung und 2 Würgenippel beiliegend.
Weight
1,715 kg
Dimensions
150 × 8,2 × 6,8 cm (L/W/H)
Light source

LED not replaceable

Connection type

Plug-in terminal

Color temperature

4.000 K

Material of the housing

Plastic

Housing color

gray

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

EVG

Dimmable

No

Light color

white

Color rendering index CRI

80-89

Suitable for wall mounting
Yes
Suitable for pendant suspension
Yes
Suitable for ceiling mounting
Yes
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for strip light configuration
No
Suitable for clamp mounting
No
Suitable for VDU workstations according to EN 12464-1
No
With illuminant
Yes
Suitable for number of light sources
0
Surface protection housing
untreated
Cover material
Transparent plastic
Design of the grid
other
Rated current
125 mA
With control gear
Yes
Replaceable operating device
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
DALI dimming
No
Dimming DALI-2
No
DMX dimming
No
Dimming DSI
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Programmable dimming
No
Dimming potentiometer (device-integrated)
No
RF dimming
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Diffuser lens/optics/panel
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
D
Ambient product after 2019/2020/EU
Yes
Rated service life L70/B50 at 25 °C
70.000 h
Max. number of luminaires per miniature circuit breaker C10
44
Max. number of luminaires per miniature circuit breaker B16
56
Max. number of luminaires per miniature circuit breaker C16
44
Impact resistance
IK08
Protection class according to IEC 61140
I
Emergency power supply system
central (central battery)
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Suitable for emergency lighting
Yes
Emergency function monitoring system
Without
With switch
No
With motion detector
Yes
With light sensor
Yes
Covering the luminaire with thermal insulation material possible
No
With air vents
No
Luminaire luminous efficacy
135 lm/W
Max. System performance
26 W
Rated luminous flux according to IEC 62722-2-1
3.500 lm
Constant luminous flux control
No
Number of poles
5
Distortion factor (THD)
20 %
Photobiological safety according to EN 62471
RG0
Adjustable color temperature
No
Adjustable luminous flux
No
Adjustable beam angle
No
Operation via Bluetooth
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)
No
