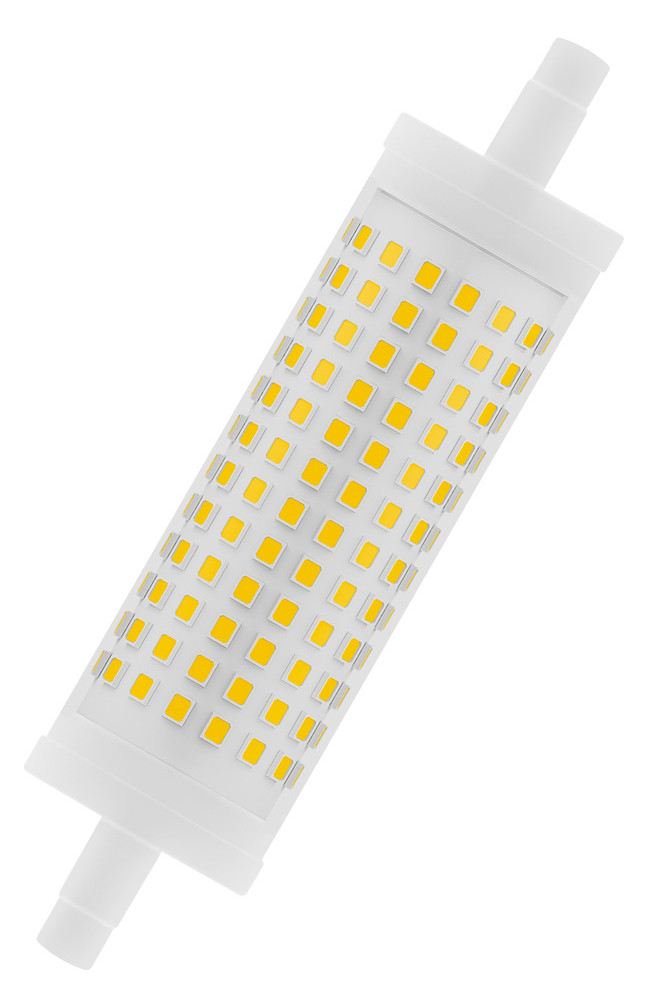

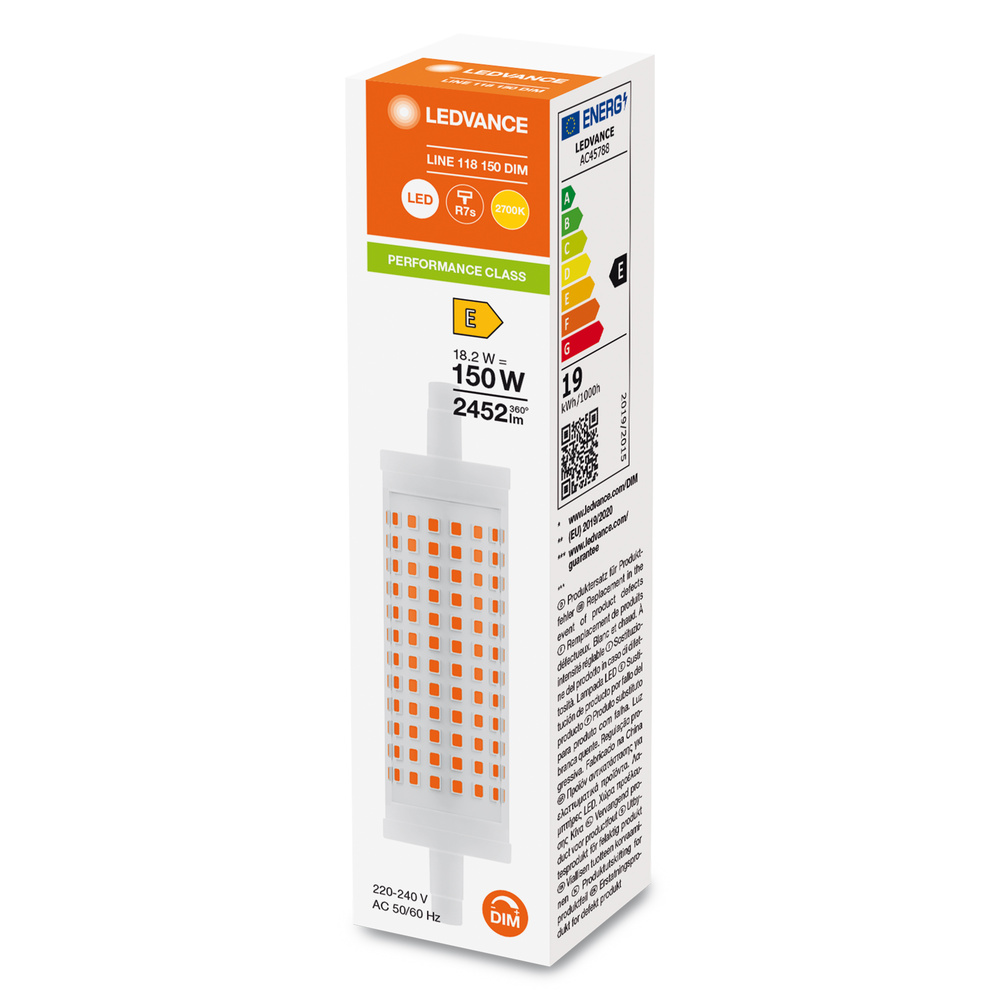

Dimmable double-sided socketed LED special lamps

19,73 € inkl. MwSt

SKU: 02-4099854048678
For more information, please refer to the data sheet!
Dimmable double-sided LED special lamps. Product features: Dimmable (on many commercially available dimmers, see auchwww.ledvance.de/dim). LED alternative to conventional R7s lamps. Good light quality; Color rendering index Ra: ≥ 80; constant color location. Product advantages: Fits into most R7s luminaires due to off-center bases. Good all-round light emission. Less heat generation (compared to the standard reference product). Five-year warranty. Areas of application: General lighting at ambient temperatures of -20...+40 °C. Gastronomy. Household applications. Outdoor use only in suitable outdoor luminaires.
Weight
0,09 kg
Dimensions
11,8 cm (L)
Color temperature

2.700 K

Color

multicolored

Color rendering index CRI

80-89

Nominal voltage

220 V

Voltage type

AC

Housing color

white

Beam angle

300 °

Dimmable

Yes

Protection class (IP)

IP20

Rated current
75 mA
Lamp wattage
18,2 W
Suitable for ECG
No
Suitable for magnetic ballast
No
Luminous flux
2.452 lm
Rated luminous flux according to IEC 62612
2.452 lm
Lamp luminous efficacy
134 lm/W
Lamp shape
Tube, double-ended
Filament lamp
No
Material Bulb
Plastic
Glass/cover version
clear
Base
R7s
Color consistency (McAdam ellipse)
SDCM6
Dimming phase cut-off
Yes
Phase control dimming
Yes
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
Diameter
28 mm
Energy efficiency class according to EU Directive 2019/2015
E
Lamp designation
other
Distortion factor (THD)
17 %
Min. number of switching operations
100.000
Weighted energy consumption in 1,000 hours
19 kWh
Average rated service life
25.000 h
Remote control possible
No
With motion detector
No
With remote control
No
With twilight switch
No
Photobiological safety according to EN 62471
RG1
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
