Ring-shaped LED tubes for electromagnetic ballasts (KVG/VVG) and mains voltage

9,54 € inkl. MwSt

SKU: 02-4099854042461
For more information, please refer to the data sheet!
Ring-shaped LED tubes for electromagnetic ballasts (KVG/VVG) and mains voltage. Product features: LED alternative for classic T9 fluorescent lamps in KVG luminaires. Homogeneous illumination. Service life: up to 30,000 h. Mercury-free and RoHS compliant. Product advantages: Simple, fast and safe lamp replacement without rewiring. Energy savings of up to 50% (compared to T9 fluorescent lamps). Also suitable for operation at low temperatures. Operation directly at 230 V mains voltage possible. Areas of application: General lighting in ambient temperatures of -20...+45 °C. corridors, stairwells and parking garages. Household applications. Decorative applications.
Weight
0,158 kg
Dimensions
21,2 cm (L)
Color temperature

4.000 K

Color

white

Color rendering index CRI

80-89

Nominal voltage

220 V

Voltage type

AC

Housing color

white

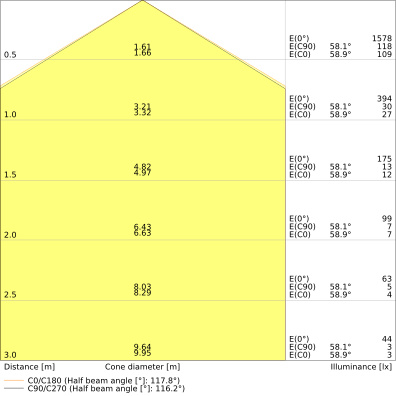

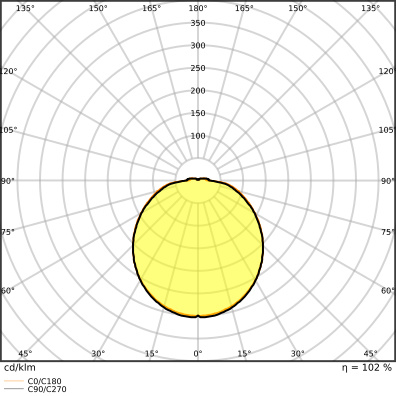

Beam angle

110 °

Dimmable

No

Protection class (IP)

IP20

Rated current
51 mA
Lamp wattage
11 W
Suitable for ECG
No
Suitable for magnetic ballast
Yes
Luminous flux
1.320 lm
Rated luminous flux according to IEC 62612
1.320 lm
Lamp luminous efficacy
120 lm/W
Lamp shape
Ball
Filament lamp
No
Material Bulb
Plastic
Glass/cover version
frosted
Light color according to EN 12464-1
neutral white 3300 to 5300 K
Base
G10q
Color consistency (McAdam ellipse)
SDCM6
Dimming phase cut-off
No
Phase control dimming
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
Diameter
212 mm
Energy efficiency class according to EU Directive 2019/2015
E
Lamp designation
other
Distortion factor (THD)
20 %
Min. number of switching operations
200.000
Weighted energy consumption in 1,000 hours
11 kWh
Average rated service life
30.000 h
Remote control possible
No
With motion detector
No
With remote control
No
With twilight switch
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
