ledvance/asset-13061768.jpg

For a wide range of applications in street and area lighting

55,10 € inkl. MwSt

SKU: 02-4099854030390
Datasheet: Download PDF
For more information, please refer to the data sheet!

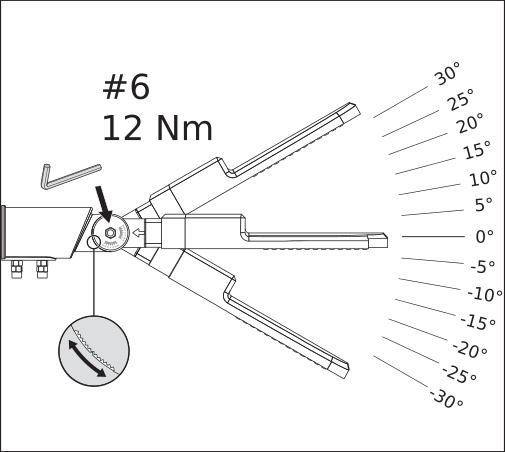

For a wide range of applications in street and area lighting. Product features: Light distribution for roads with a similar road width as the light point height. Mast adapter included, suitable for masts with 48-60 mm braid size. Adjustable pole adapter, suitable for pole attachment and pole attachment mounting. +/- 30° tilt adjustment without opening the housing. High luminous efficiency: up to 135 lm/W. Operating ambient temperature range: -30-50 °C. High surge protection of up to 10 kV (L/N-PE). Product advantages: Functional and minimalist design. Low maintenance and operating costs thanks to long LED life. 5-year warranty. Areas of application: Outdoor application (IP66). Roads of classes M, C and P in accordance with EN 13201. Area lighting.
Weight
1,49 kg
Mounting type

Essay

Light source

LED not replaceable

With illuminant

Yes

Suitable for number of light sources
Version

Without

Material of the housing

Aluminum

Surface protection

powder-coated

Housing color

gray

Cover material

Plastic opal

Voltage type

AC

Nominal voltage

100 – 240 V

Rated current

186 mA

With control gear

Yes

Replaceable operating device

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

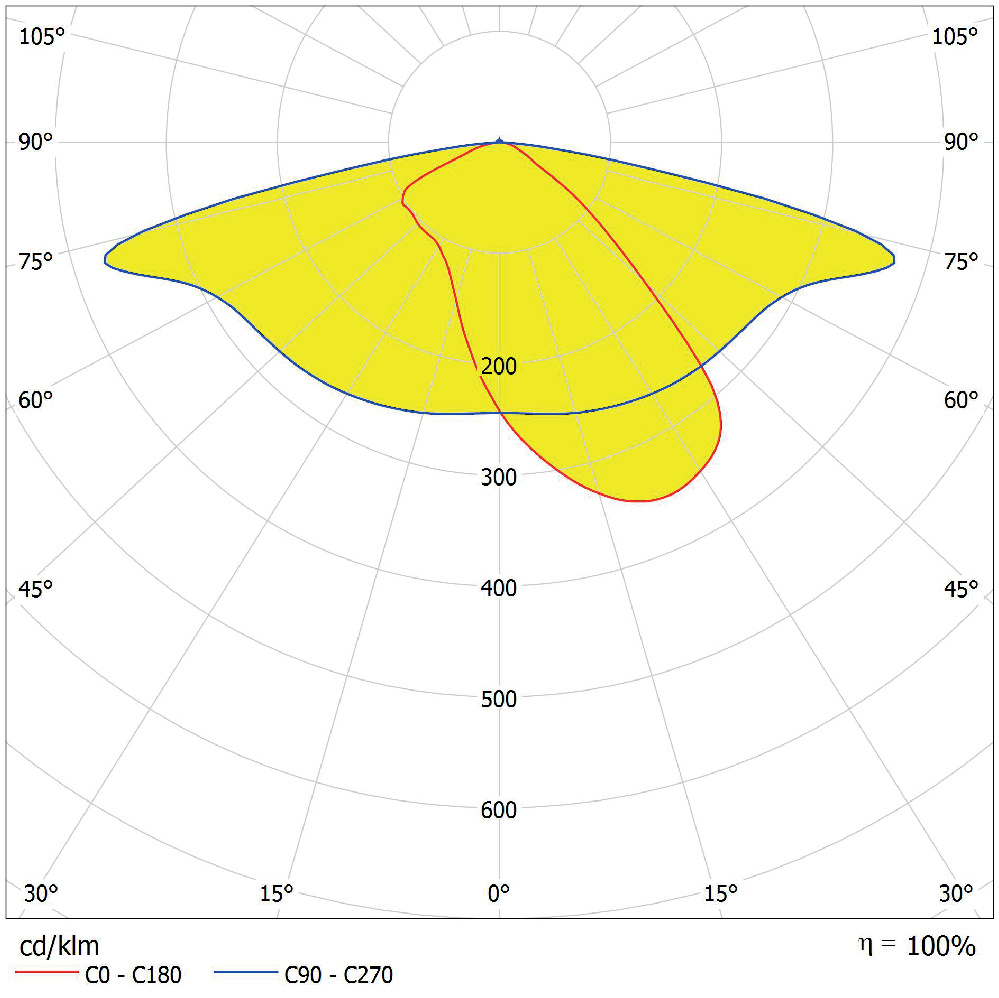

Light distributor

Focus lens

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Rated service life L70/B50 at 25 °C

100.000 h

Max. Number of lights Circuit breaker C16

64

Protection class (IP)

IP66

Adjustable optics

No

Suitable for plait size

60 mm

Impact resistance

IK08

Protection class

I

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

-30 – 50 °C

Remote control

Without

With radio control

No

Constant luminous flux control

No

With program-controlled lighting control

No

With connection cable

Yes

Cable length

0,5 m

Max. System performance

45 W

Rated luminous flux according to IEC 62722-2-1

6.075 lm

Luminaire luminous efficacy

135 lm/W

Light color

white

Color temperature

4.000 K

Color rendering index CRI

70-79

Power factor

0,9

Width

172 mm

Height/depth

73 mm

Length

448 mm

Type of wiring

Conclusion

Number of poles

3

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Connection type

other

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Operation via Bluetooth

No

With light sensor

No
