LED replacement for KLLni with 4 pin. GX24q socket for operation on ECG and mains voltage

11,42 € inkl. MwSt

SKU: 02-4058075822351
For more information, please refer to the data sheet!
LED replacement for KLLni with 4 pin. GX24q socket for operation on electronic ballast or mains voltage. Product features: LED replacement for conventional compact fluorescent lamps in electronic ballast luminaires or on mains voltage. Lifetime: up to 30,000 h. Single-sided 4-pin socket GX24q. Rotatable base around its longitudinal axis (± 90 °). Degree of protection: IP20. Mercury-free lamps. Product advantages: Easy installation. Low energy consumption. Easy lamp replacement thanks to compact design. Operation directly at 230 V mains voltage possible. Areas of application: General lighting in ambient temperatures of -20...+45 °C. Supermarkets and department stores. Corridors and corridors. Hotels, Restaurants.
Weight
0,115 kg
Dimensions
15,5 cm (L)
Color temperature

4.000 K

Color

white

Color rendering index CRI

80-89

Nominal voltage

220 V

Voltage type

AC

Housing color

white

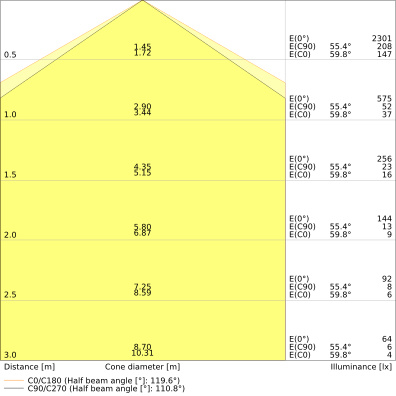

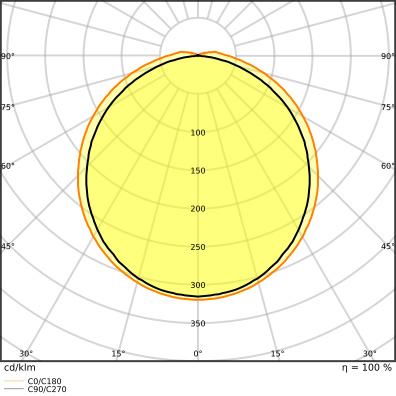

Beam angle

120 °

Dimmable

No

Protection class (IP)

IP20

Rated current
68 mA
Lamp wattage
16 W
Suitable for ECG
Yes
Suitable for magnetic ballast
No
Luminous flux
1.800 lm
Rated luminous flux according to IEC 62612
1.800 lm
Lamp luminous efficacy
112 lm/W
Lamp shape
Tube, single-ended
Filament lamp
No
Material Bulb
Plastic
Glass/cover version
frosted
Light color according to EN 12464-1
neutral white 3300 to 5300 K
Base
GX24q-3
Color consistency (McAdam ellipse)
SDCM6
Dimming phase cut-off
No
Phase control dimming
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming Bluetooth
No
Dimming Wi-Fi
No
Diameter
41 mm
Energy efficiency class according to EU Directive 2019/2015
E
Distortion factor (THD)
30 %
Min. number of switching operations
200.000
Weighted energy consumption in 1,000 hours
16 kWh
Average rated service life
30.000 h
Remote control possible
No
With motion detector
No
With remote control
No
With twilight switch
No
Photobiological safety according to EN 62471
RG0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
