Recessed spotlight for indoor use, fixed

22,99 € inkl. MwSt

SKU: 02-4058075799547
For more information, please refer to the data sheet!

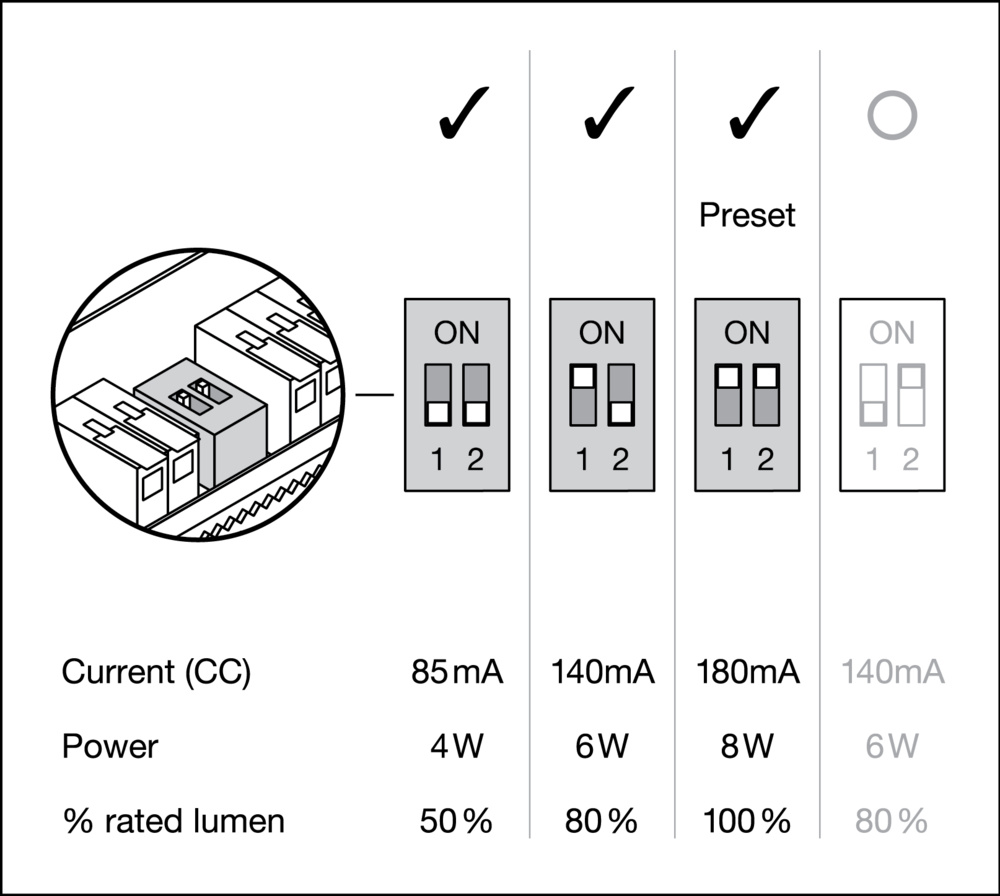

Recessed spotlight for indoor use, fixed. Product features: Colour rendering index Ra: 90. Degree of protection: IP44 (room side). Beam angle: 36°. Die-cast aluminum housing. Springs with soft silicone coating. Dimmable (on many commercially available dimmers, see auchwww.ledvance.de/dim). through-wiring possible. Product advantages: Energy savings of up to 90% compared to halogen lamp spotlights. Powerselect: Adjust the brightness via dip switches on the driver. Easy replacement of the external driver thanks to the bayonet connector. Easy installation and electrical connection thanks to tool-free terminals. SCALE Design - great appearance, high-quality materials and small size fit into any environment. 5-year warranty. Areas of application: Direct replacement for recessed spotlights with halogen lamps. General lighting. Hotel rooms and corridors. Bars, Restaurants. Accent. Galleries, museums. Living. Technical equipment: External ballast with dip switches included to adjust the power during installation. Renovation rings are available as accessories. Selected DALI 2.0 driver is available as an accessory.
Weight
0,24 kg
Dimensions
8,1 × 5 cm (W/H)
Color rendering index CRI

90-100

Color temperature

3.000 K

Adjustability

not adjustable

Light source

LED not replaceable

Version

Without

Material of the housing

Aluminum

Housing color

white

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Dimmable

Yes

Light color

white

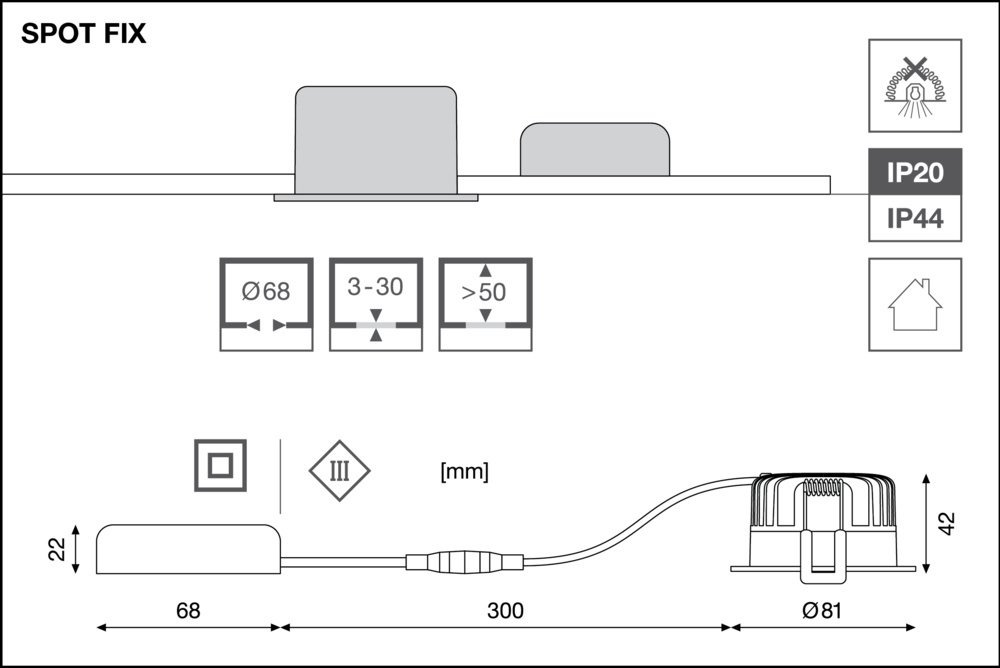

Outer diameter

81 mm

Installation height

50 mm

Suitable for surface mounting
Yes
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for pendant suspension
No
Suitable for ceiling mounting
Yes
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
With motion detector
No
With presence detector
No
With light sensor
No
With illuminant
Yes
Suitable for number of light sources
0
Surface protection
powder-coated
Cover material
Transparent plastic
Brushed surface
No
Rated current
38 mA
With control gear
Yes
Replaceable operating device
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
Yes
Phase control dimming
Yes
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
Without
Light distributor
Focus lens
Light distribution
symmetrical
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
F
Ambient product after 2019/2020/EU
Yes
Distortion factor (THD)
20 %
Rated service life L70/B50 at 25 °C
50.000 h
Constant luminous flux control
No
Degree of protection (IP), rear
IP20
Degree of protection (IP), front
IP44
Impact resistance
IK05
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Max. System performance
8 W
Adjustable color temperature
No
Rated luminous flux according to IEC 62722-2-1
680 - 340 lm
Adjustable luminous flux
No
Luminaire luminous efficacy
85 lm/W
Luminous intensity
1.300 cd
Power factor
0,9
Adjustable beam angle
No
Installation length
68 mm
Installation width
68 mm
Installation diameter
68 mm
Number of poles
2
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Max. number of luminaires per miniature circuit breaker B16
336
Max. number of luminaires per miniature circuit breaker C16
336
Photobiological safety according to EN 62471
RG1
Suitable for VDU workstations according to EN 12464-1
No
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Color consistency (McAdam ellipse)
SDCM3
Compatible with Apple HomeKit
No
Operation via Bluetooth
No
Compatible with Google Assistant
No
Compatible with Casambi
No
Compatible with Amazon Alexa
No
