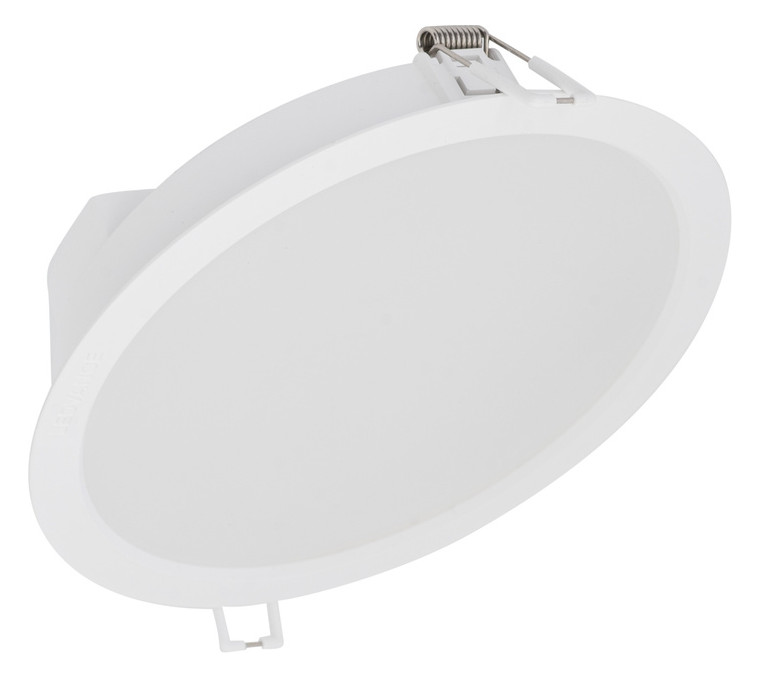

ledvance/asset-13061304.jpg

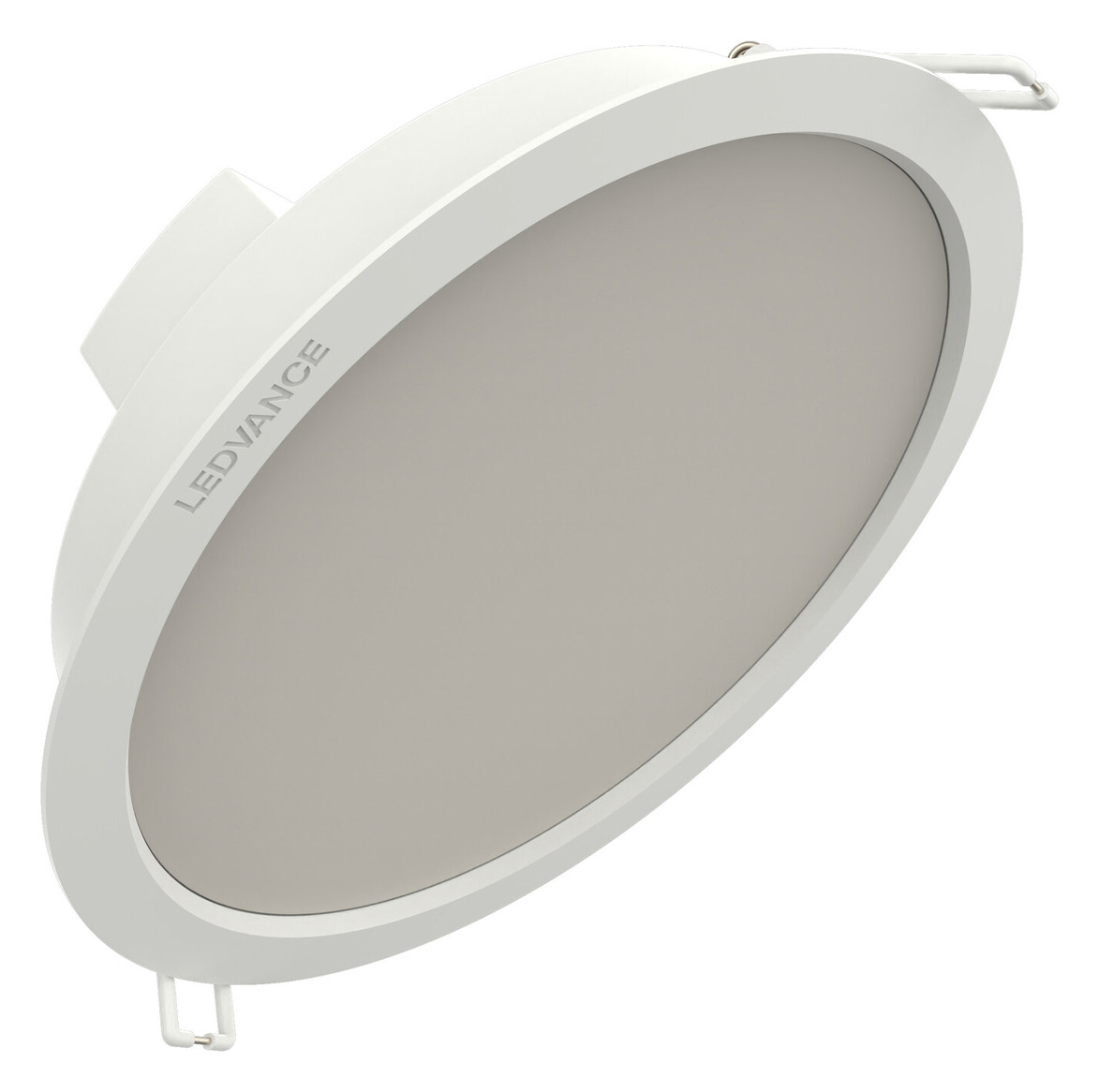

Downlight mit IP44-Schutz

6,57 € inkl. MwSt

SKU: 4058075703049
For more information, please refer to the data sheet!
Downlight mit IP44-Schutz. Produkteigenschaften: Schutzart: IP44. Lichtausbeute: 100 lm/W. Produktvorteile: Hohe Lichtausbeute. Sehr homogenes Licht. Einfache Installation dank integriertem Treiber. Anwendungsgebiete: Direkter Ersatz für Leuchten mit Leuchtstofflampen. Allgemeinbeleuchtung. Öffentlicher Raum. Treppenhäuser. Flure. Geschäfte. Badezimmer. Technische Ausstattung: Rahmen für Anbaumontage als Zubehör erhältlich.
Weight
0,14 kg
Dimensions
16,5 × 4 cm (W/H)
Color rendering index CRI

80-89

Color temperature

3.000 K

Adjustability

not adjustable

Light source

LED not replaceable

Version

Without

Material of the housing

Plastic

Housing color

white

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Dimmable

No

Light color

white

Outer diameter

165 mm

Installation height

40 mm

Suitable for surface mounting
Yes
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for pendant suspension
No
Suitable for ceiling mounting
Yes
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
With motion detector
No
With light sensor
No
With illuminant
Yes
Suitable for number of light sources
0
Surface protection
untreated
Cover material
Plastic opal
Brushed surface
No
Rated current
100 mA
With control gear
Yes
Replaceable operating device
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
Without
Light distributor
Diffuser lens/optics/panel
Light distribution
symmetrical
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
F
Ambient product after 2019/2020/EU
Yes
Distortion factor (THD)
90 %
Rated service life L70/B50 at 25 °C
20.000 h
Constant luminous flux control
No
Impact resistance
IK03
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Max. System performance
13 W
Adjustable color temperature
No
Rated luminous flux according to IEC 62722-2-1
1.300 lm
Adjustable luminous flux
No
Luminaire luminous efficacy
100 lm/W
Power factor
0,5
Adjustable beam angle
No
Installation length
150 mm
Installation width
150 mm
Installation diameter
150 mm
Type of wiring
Conclusion
Number of poles
2
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Max. number of luminaires per miniature circuit breaker B16
112
Max. number of luminaires per miniature circuit breaker C16
96
Photobiological safety according to EN 62471
RG0
Suitable for VDU workstations according to EN 12464-1
No
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Operation via Bluetooth
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
4058075703049.pdf
4058075703049_tds_de.pdf
asset-13097007.pdf
asset-13265228.pdf

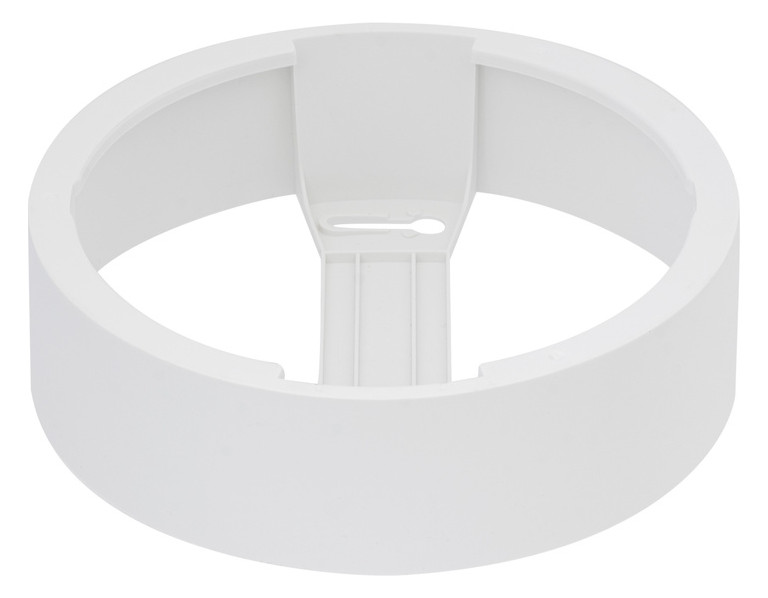

Matching accessories for this product
