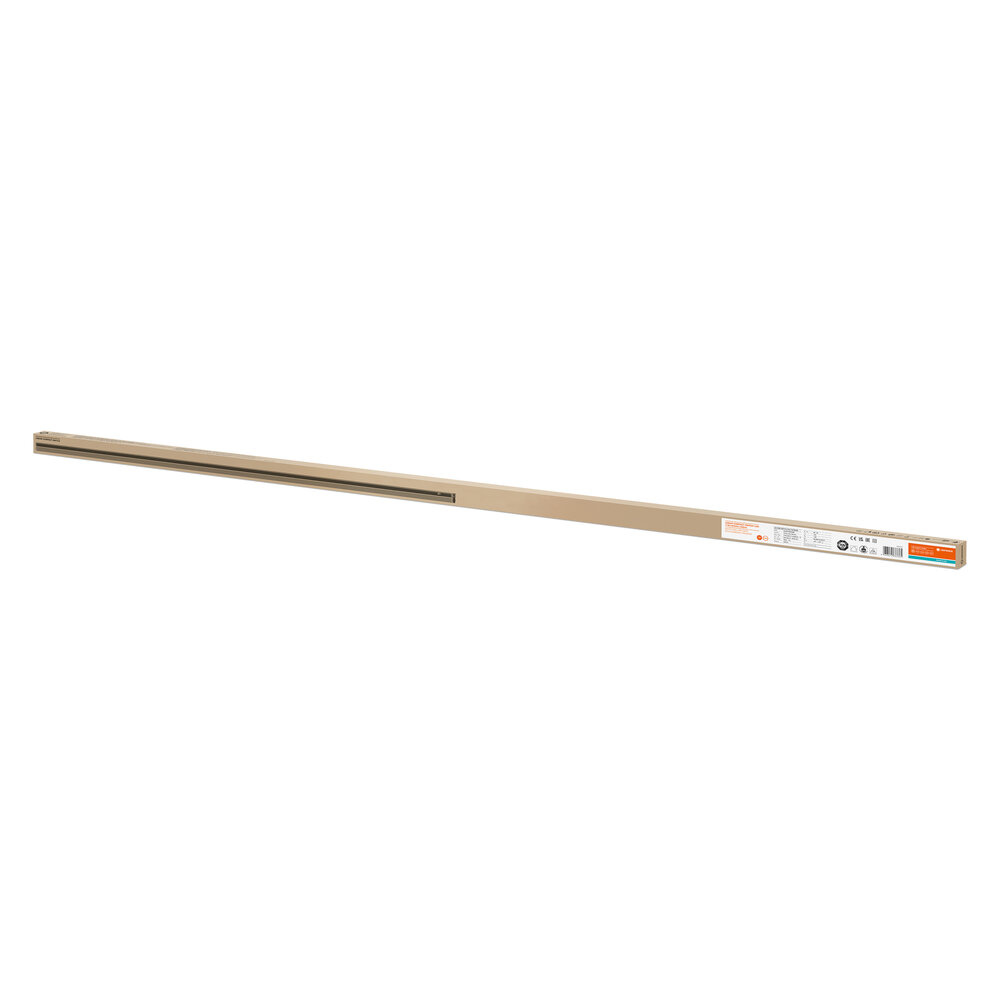

Compact luminaire with switch for single or continuous lighting applications

16,40 € inkl. MwSt

SKU: 02-4058075683365
For more information, please refer to the data sheet!
Compact luminaire with switch for single or continuous lighting applications. Product features: Built-in switch. Up to 10 luminaires can be connected to each other. Transparent end caps. Versions with luminous flux 400... 1900 lm available. 5 different lengths available. High luminous efficiency: up to 112 lm/W. Glow wire test according to IEC 60695-2-12: 850 °C. Product advantages: Compact dimensions. Takes up little space thanks to its compact dimensions. Seamless connection option with up to 10 luminaires per continuous lighting installation. Practical switch installed directly on the luminaire. Low-flicker light thanks to special electronic ballast. Flexible installation at 2 different angles thanks to 2 mounting options. Flexible application due to a wide range of available lengths from 300 to 1500 mm. Angular connection possible with enclosed cable. Areas of application: Direct replacement for luminaires with fluorescent lamps. Interior applications. Corridors, entrance areas, stairwells, living rooms, basements. Accent. Public space. Cove lighting. shelves, furniture integration or substructure. Seamless light strips. Technical equipment: Equipped with power plug, cable connector and line connector for connecting other luminaires. Mounting material for wall and ceiling mounting included.
Weight
0,52 kg
Dimensions
147,3 × 2,8 × 3,6 cm (L/W/H)
Connection type

Screw terminal

Color rendering index CRI

80-89

Protection class (IP)

IP20

Operating device

EVG

Voltage type

AC

Material

Plastic

Light source

LED not replaceable

Version

Without

Housing color

white

Nominal voltage

220 – 240 V

Dimmable

No

Color temperature

4.000 K

With illuminant
Yes
Suitable for number of light sources
0
Rated current
130 mA
With control gear
Yes
Replaceable operating device
No
Dimming 0-10 V
No
Dimming 1-10 V
No
DALI dimming
No
Dimming DALI-2
No
DMX dimming
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming Mains voltage modulation
No
Dimming manufacturer-specific
No
Dimming phase cut-off
No
Phase control dimming
No
Dimming potentiometer (device-integrated)
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming with push-button
No
Dimming Zigbee
No

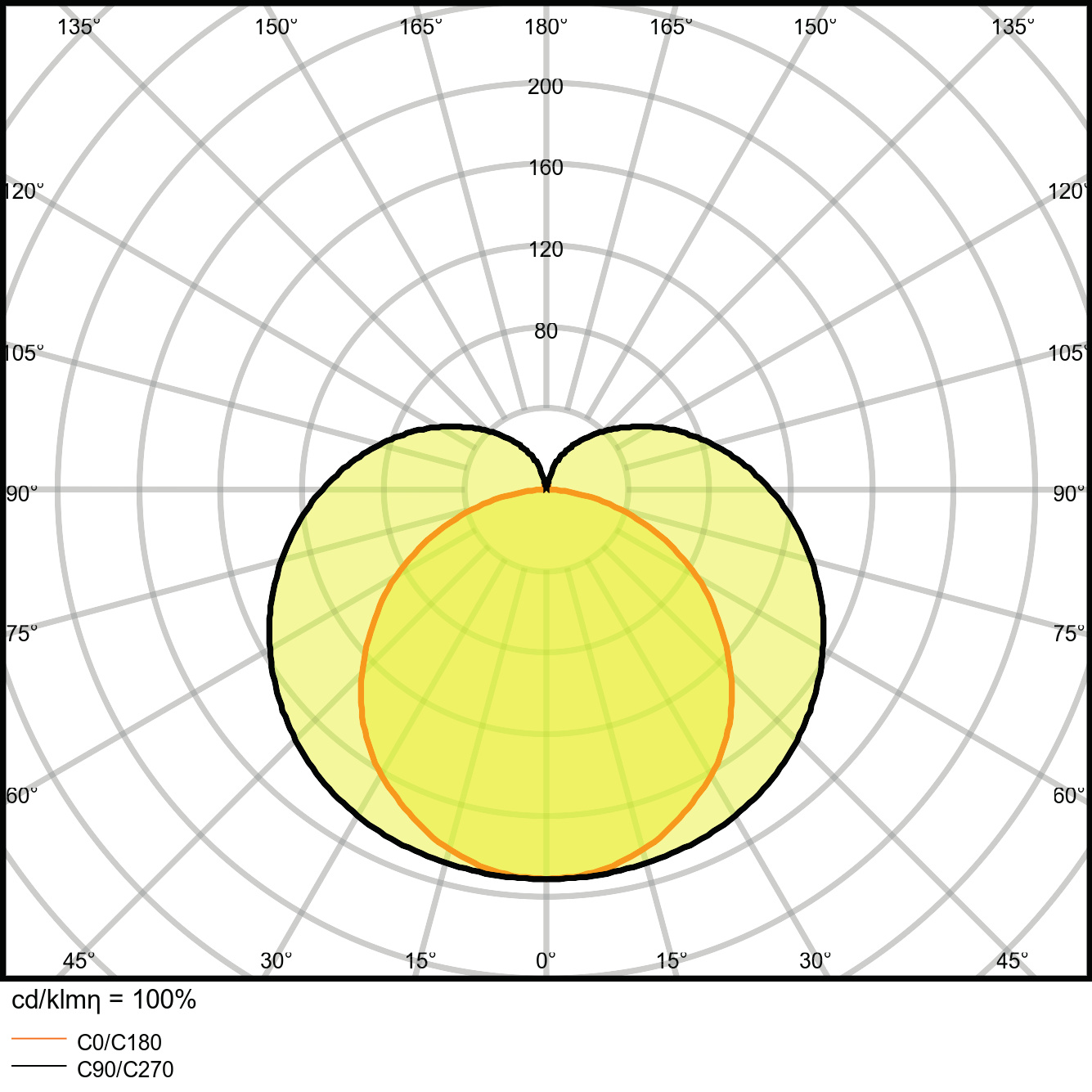

Light distributor
Diffuser lens/optics/panel
Energy efficiency class of the light source according to EU Directive 2019/2015
E
Ambient product after 2019/2020/EU
Yes
Rated service life L70/B50 at 25 °C
50.000 h
Constant luminous flux control
No
Protection class according to IEC 61140
II
Impact resistance
IK03
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Covering the luminaire with thermal insulation material possible
No
Suitable for emergency lighting
No
With motion detector
No
With switch
Yes
With light sensor
No
Max. System performance
17 W
Rated luminous flux according to IEC 62722-2-1
1.900 lm
Luminaire luminous efficacy
112 lm/W
Adjustable color temperature
No
Adjustable luminous flux
No
Adjustable beam angle
No
Number of poles
2
Electrical connection with plug-in system
No
Operation via Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
