Blendarme Downlights, geeignet für Bildschirmarbeitsplätze und DALI-2 IoT Technologie

81,50 € inkl. MwSt

Out of stock. Order confirmation will follow.
SKU: 4058075459311
Stock: Out of stock. Order confirmation will follow.
For more information, please refer to the data sheet!

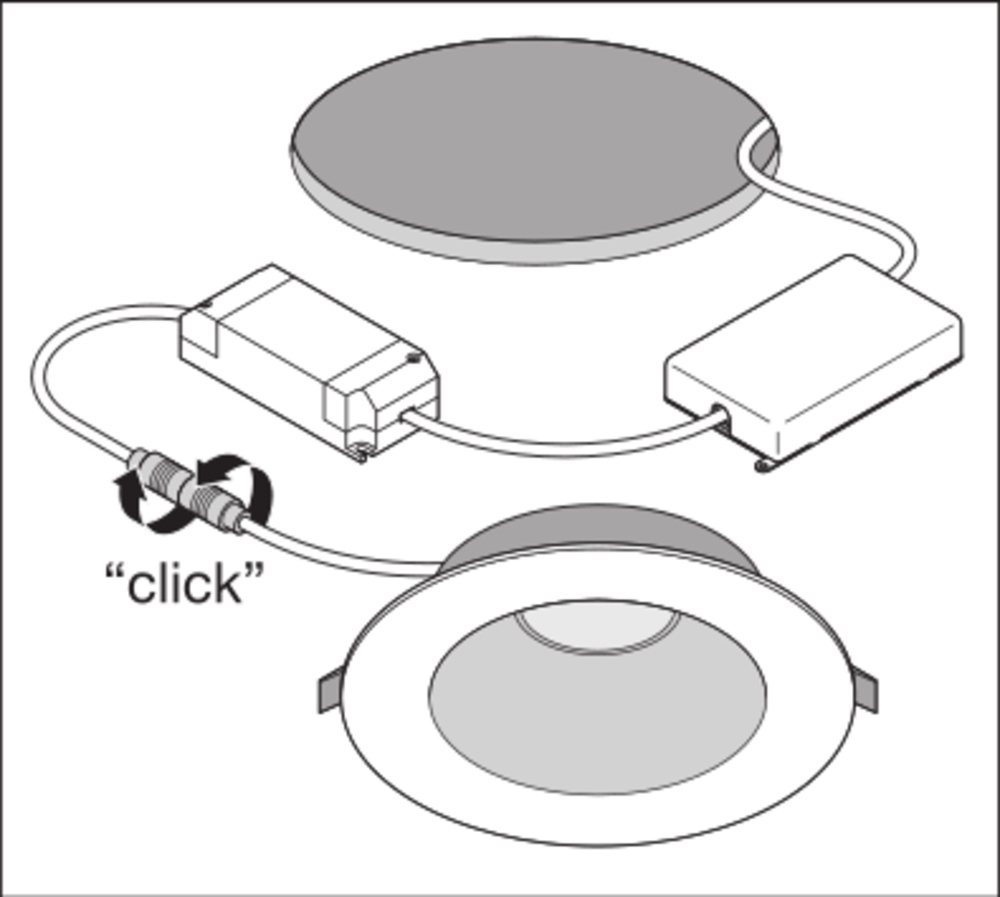

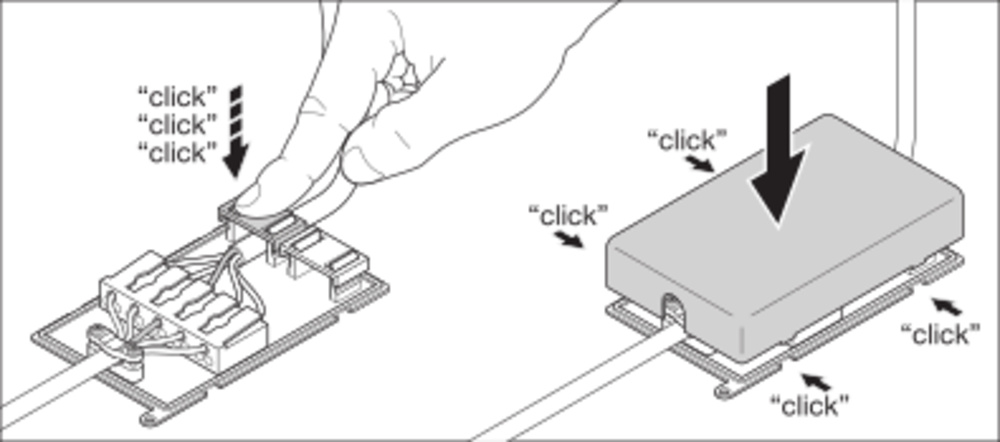

Blendarme Downlights, geeignet für Bildschirmarbeitsplätze und DALI-2 IoT Technologie. Produkteigenschaften: IoT-fähige Leuchte mit DALI-2 Technologie. Gehäusematerial: Aluminium mit Hochglanzreflektor. Schutzart: IP54 (raumseitig) / IP20 (rückseitig). Anschlussbox mit Steckklemme für werkzeuglosen Anschluss. Durchverdrahtung möglich. Produktvorteile: Geeignete Leuchte für VIVARES und andere DALI-2 Licht Management Systeme. Gute Entblendung (UGR ≤ 19) und Cut-Off-Winkel bis 30° für eine komfortable Innenbeleuchtung. Einfache und schnelle Installation dank einer Anschlußbox mit 5-poliger, werkzeugloser Anschlußklemme. Flimmerarmes Licht. Geeignet für Verwendung in staubigen und feuchten Umgebungen dank hoher Schutzart. 5 Jahre Garantie. Anwendungsgebiete: Geeignet für Büroanwendungen, insbesondere Bildschirmarbeitsplätze. Direkter Ersatz für Leuchten mit Kompaktleuchtstofflampen. Gänge / Flure. Bäder, Küchen und überdachte Aussenbereiche. Allgemeinbeleuchtung. Technische Ausstattung: Externes Vorschaltgerät enthalten.
Weight
0,65 kg
Dimensions
18 × 12 cm (W/H)
Connection type

Plug-in terminal

Outer diameter

180 mm

Voltage type

AC

Color temperature

4.000 K

Dimmable

Yes

Version

Without

Adjustability

not adjustable

Light source

LED not replaceable

Material of the housing

Aluminum

Housing color

white

Nominal voltage

220 – 240 V

Light color

white

Color rendering index CRI

80-89

Installation height

100 mm

Suitable for surface mounting
Yes
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for pendant suspension
No
Suitable for ceiling mounting
Yes
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
With motion detector
No
With light sensor
No
With illuminant
Yes
Suitable for number of light sources
0
Surface protection
powder-coated
Cover material
Plastic opal
Brushed surface
No
Rated current
154 mA
With control gear
Yes
Replaceable operating device
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
Yes
DALI dimming
Yes
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
high gloss
Light distributor
Diffuser lens/optics/panel

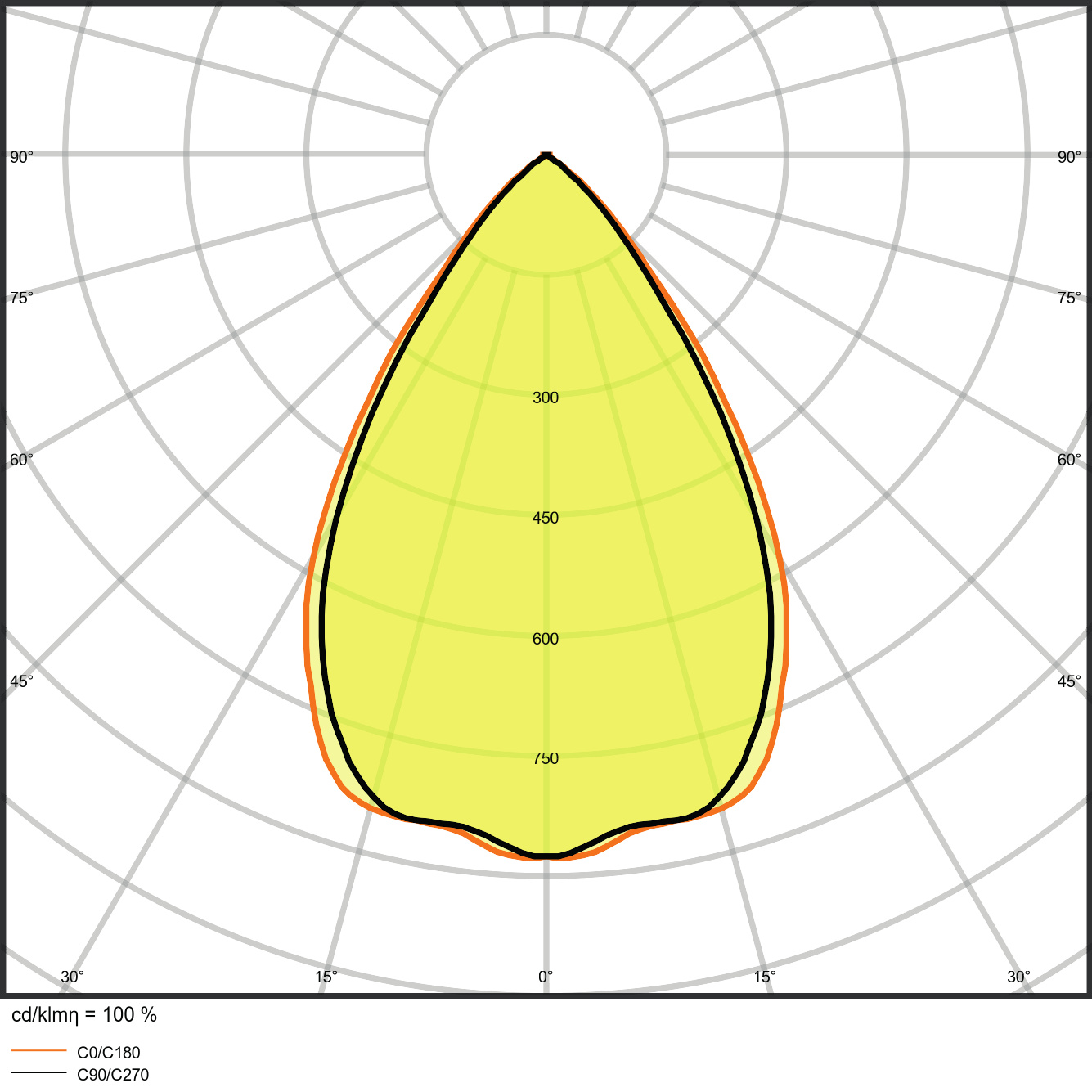

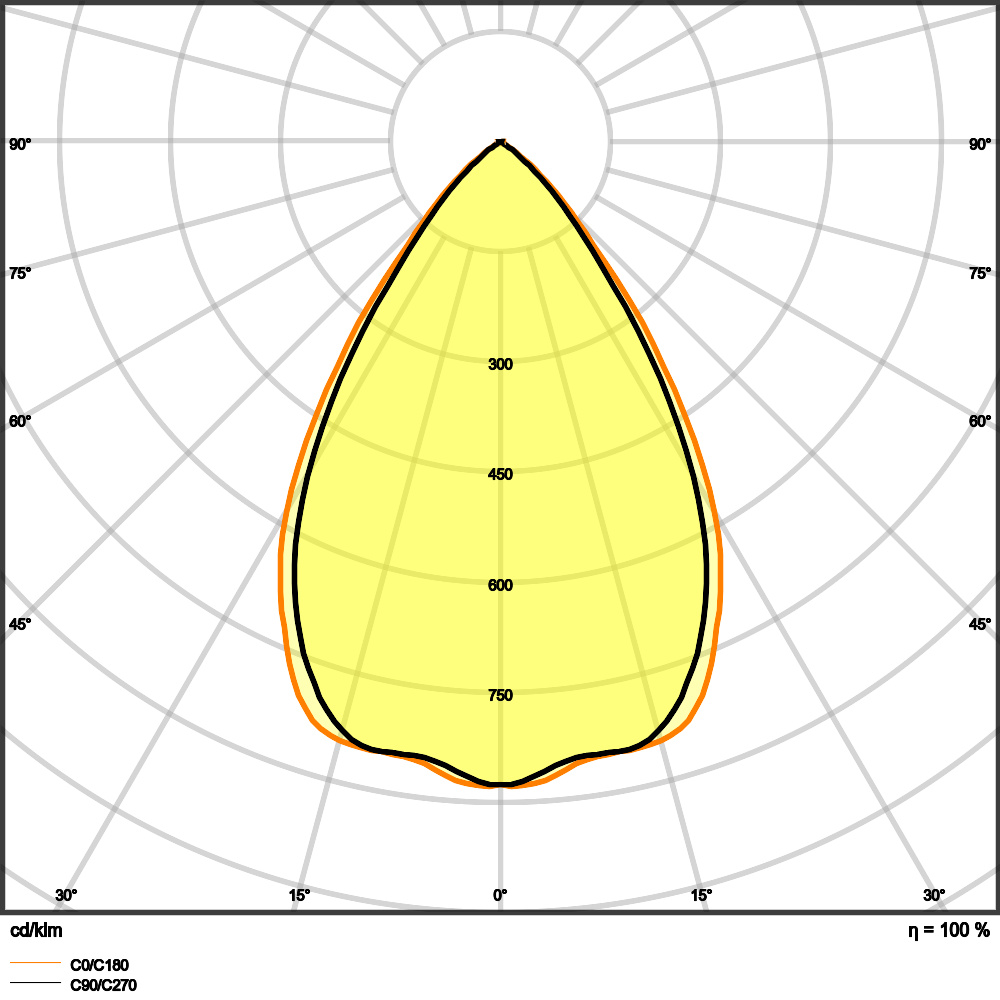

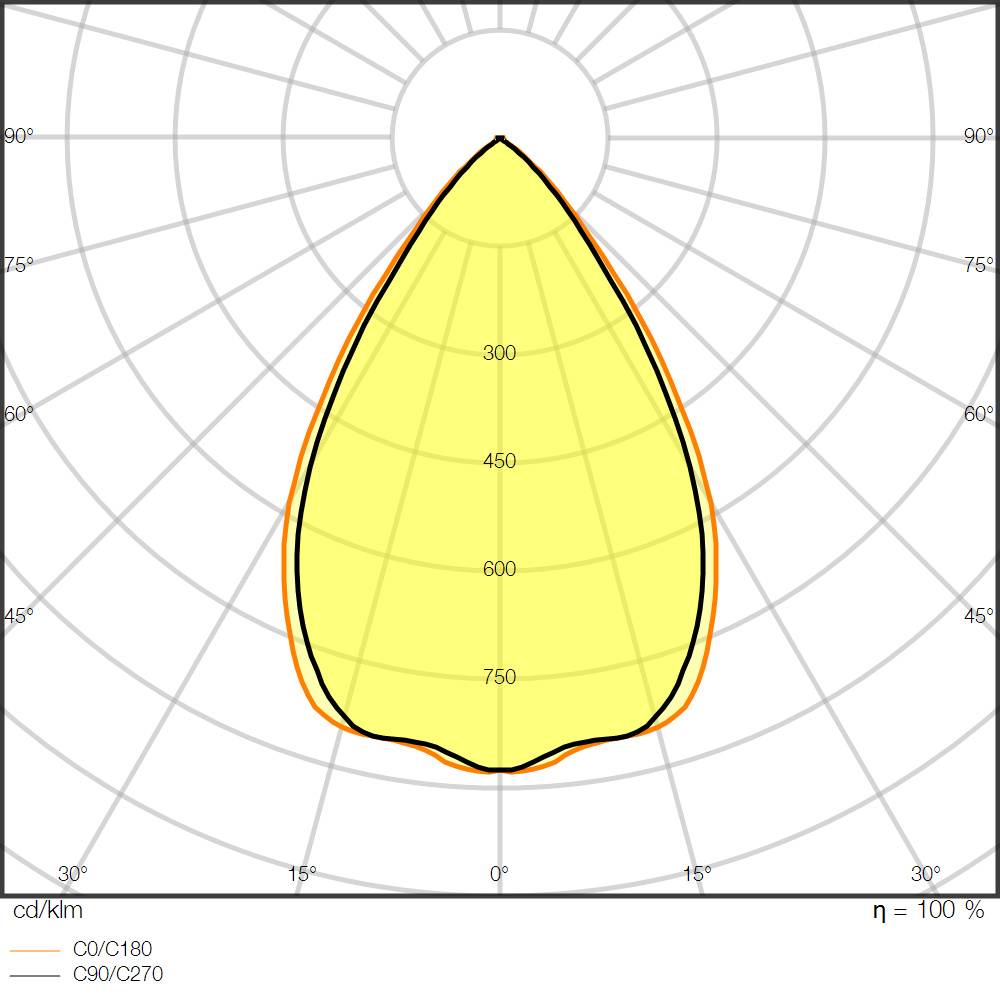

Light distribution
symmetrical
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
E
Ambient product after 2019/2020/EU
Yes
Distortion factor (THD)
15 %
Rated service life L70/B50 at 25 °C
70.000 h
Constant luminous flux control
No
Degree of protection (IP), rear
IP20
Degree of protection (IP), front
IP54
Impact resistance
IK03
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Max. System performance
14 W
Adjustable color temperature
No
Rated luminous flux according to IEC 62722-2-1
1.600 lm
Adjustable luminous flux
No
Luminaire luminous efficacy
115 lm/W
Adjustable beam angle
No

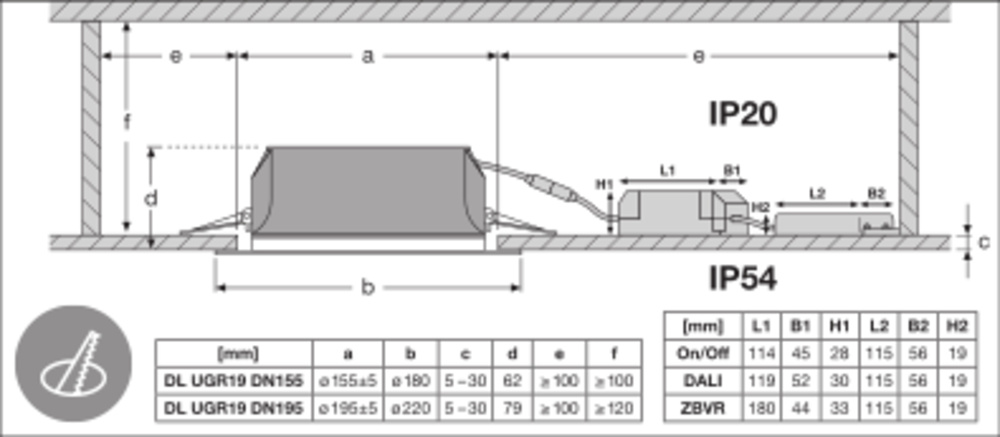

Installation length
155 mm
Installation width
155 mm
Installation diameter
155 mm
Number of poles
5
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Max. number of luminaires per miniature circuit breaker B16
120
Max. number of luminaires per miniature circuit breaker C16
120
Photobiological safety according to EN 62471
RG1
Suitable for VDU workstations according to EN 12464-1
Yes
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Color consistency (McAdam ellipse)
SDCM5
Compatible with Apple HomeKit
No
Operation via Bluetooth
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
