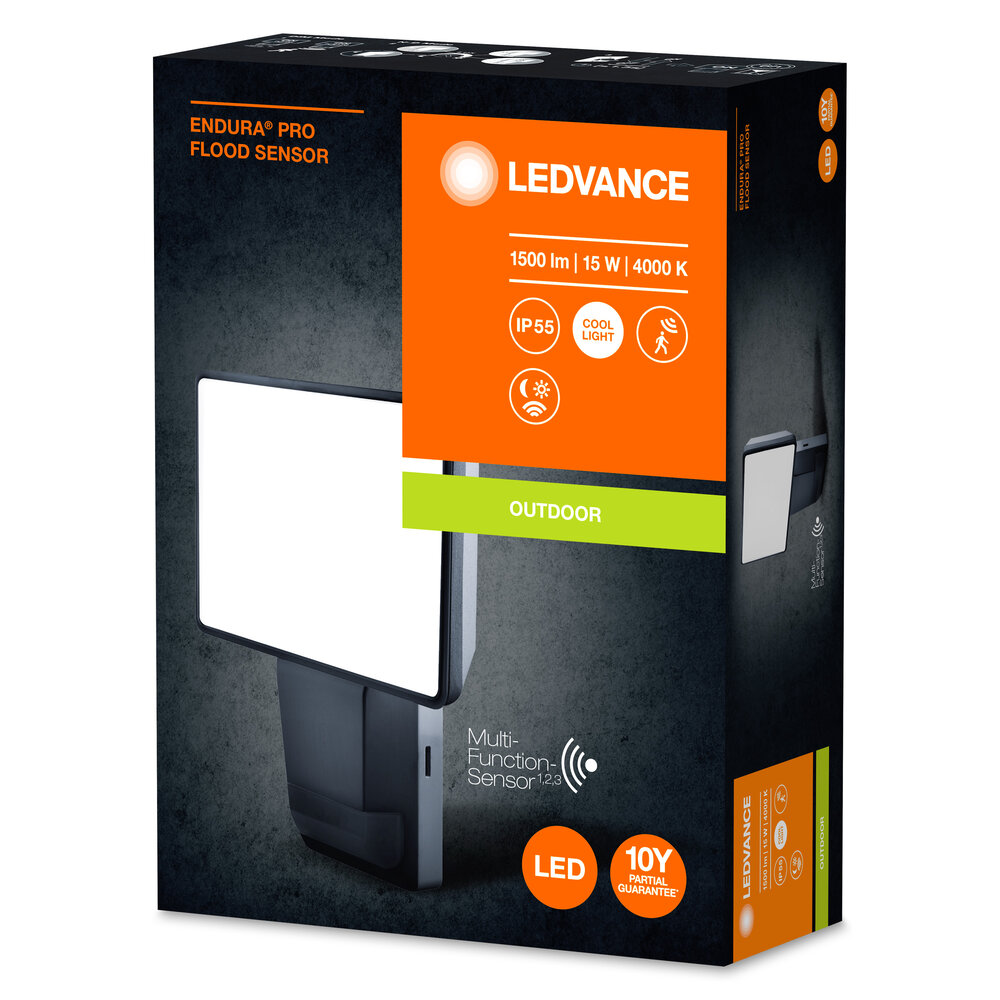

Hocheffiziente Aussenwand-Sensorstrahler mit weitem Ausstrahlungswinkel in innovativem optischen Design

61,15 € inkl. MwSt

Out of stock. Order confirmation will follow.
SKU: 4058075228801
Stock: Out of stock. Order confirmation will follow.
For more information, please refer to the data sheet!
Hocheffiziente Aussenwand-Sensorstrahler mit weitem Ausstrahlungswinkel in innovativem optischen Design. Produkteigenschaften: 4 Einstellmöglichkeiten wählbar (Licht 6h permanent an, stand-by, Einschalten bei Bewegung oder Dämmerung). Verstellbarer Leuchtenkopf. Schutzart: IP55. Stoßfestigkeit: IK05. Schutzklasse: II. Produktvorteile: Gleichmässige Flächenausleuchtung. Schwenkbarer Leuchtenkopf ermöglicht eine bedarfsgerechte Beleuchtung. Einfache und schnelle Installation. Anwendungsgebiete: Außenbereiche. Parkplätze, Plätze, Parks. Arkadengänge. Sicherheitshinweise: Alle elektrischen Anschlüsse dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Vorsicht, Gefahr des elektrischen Schlages. Um die Gefahr einer Strangulierung zu verringern, muss die an der Leuchte angeschlossene flexible Zuleitung, sofern sich diese in Armreichweite befindet, direkt und fest an der Wand montiert werden.
Weight
0,365 kg
Dimensions
15,1 × 5,6 × 20,5 cm (L/W/H)
Color rendering index CRI

80-89

Light color

white

Operating device

EVG

Voltage type

AC

Version

Without

Adjustability

Rotatable and swiveling

Light source

LED not replaceable

Material of the housing

Plastic

Nominal voltage

220 – 240 V

Dimmable

No

Color temperature

4.000 K

Suitable for surface mounting
Yes
Suitable for recessed mounting
No
Suitable for wall mounting
Yes
Suitable for pendant suspension
No
Suitable for ceiling mounting
No
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
With motion detector
Yes
Motion Detector/Presence Detector Technology
passive infrared
With light sensor
Yes
With illuminant
Yes
Suitable for number of light sources
0
Cover material
Plastic opal
Brushed surface
No
Rated current
8.000 mA
With control gear
Yes
Replaceable operating device
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
Without
Energy efficiency class of the light source according to EU Directive 2019/2015
E
Ambient product after 2019/2020/EU
Yes
Distortion factor (THD)
0 %
Rated service life L70/B50 at 25 °C
30.000 h
Constant luminous flux control
No
Impact resistance
IK05
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Max. System performance
15 W
Adjustable color temperature
No
Rated luminous flux according to IEC 62722-2-1
1.500 lm
Adjustable luminous flux
Steps
Luminaire luminous efficacy
100 lm/W
Adjustable beam angle
No
Type of wiring
Conclusion
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Max. number of luminaires per miniature circuit breaker B16
94
Max. number of luminaires per miniature circuit breaker C16
120
Photobiological safety according to EN 62471
RG1
Suitable for VDU workstations according to EN 12464-1
No
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Color consistency (McAdam ellipse)
SDCM6
Compatible with Apple HomeKit
No
Operation via Bluetooth
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
