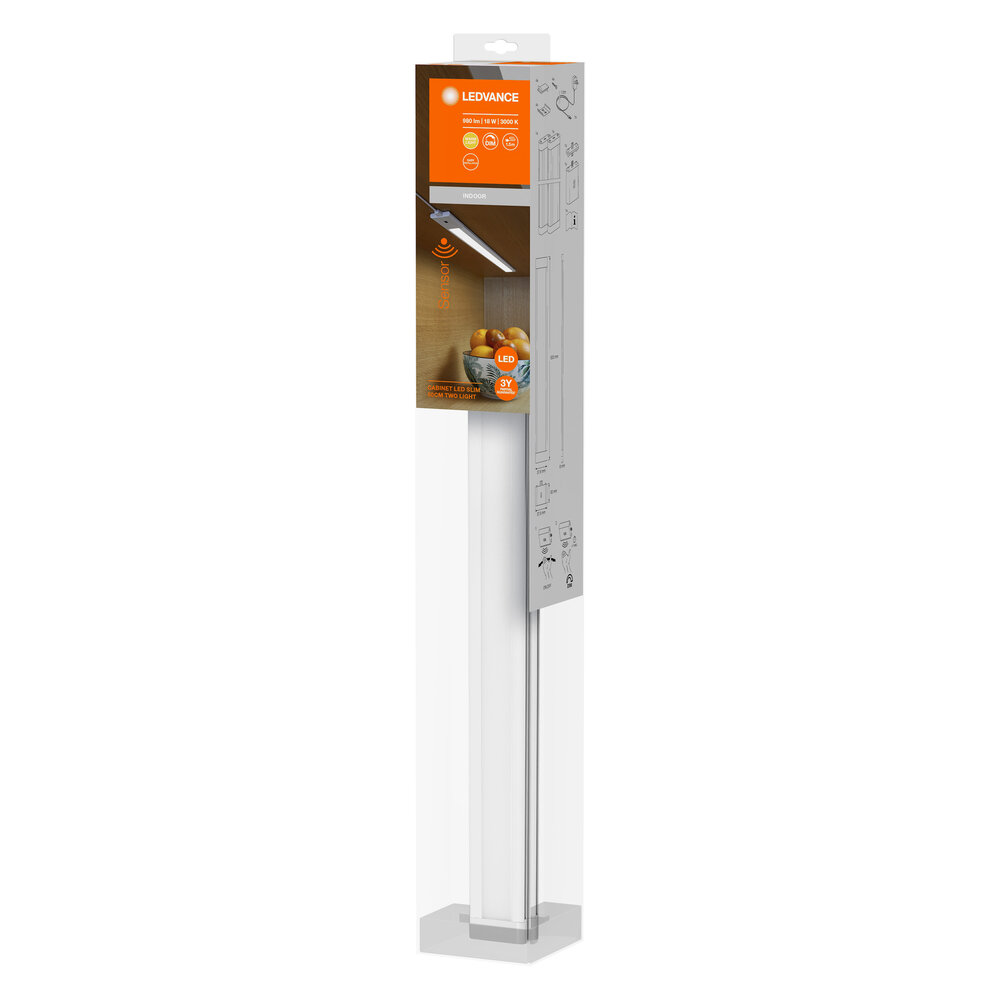

Lineare Niedervolt-Unterbauleuchten

24,69 € inkl. MwSt

SKU: 4058075227736
For more information, please refer to the data sheet!
Lineare Niedervolt-Unterbauleuchten. Produkteigenschaften: Lichtstrom: bis zu 470 lm. Ein- und Ausschalten durch Bewegungen mit 5 cm Abstand vor dem Infrarot-Bewegungssensor. Stufenloses Dimmen durch Abdecken des Infrarot-Bewegungssensor in 5 cm Abstand für mind eine Sekunde. Material: Aluminium. Produktfarbe: Weiß. Verfügbar in zwei Längen: 30 cm und 50 cm. Verfügbar als einfaches und doppeltes Leuchten-Set. Produktvorteile: Niedervoltleuchte für DC-Betrieb mit externem Treiber. Sehr schlanke Form. Homogene Lichtverteilung. Einfache und schnelle Befestigung auf fast jeder Oberfläche (Klebestreifen oder Schrauben). Anwendungsgebiete: Regal- und Unterbaubeleuchtung. Technische Ausstattung: Externer Netzadapter (Kabellänge: 1,5 m) enthalten.
Weight
0,525 kg
Dimensions
50 × 3,76 × 0,8 cm (L/W/H)
Housing color

white

Color temperature

3.000 K

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

EVG

Protection class (IP)

IP20

Light color

white

Color rendering index CRI

80-89

Suitable for wall mounting
Yes
Suitable for pendant suspension
No
Suitable for ceiling mounting
No
Suitable for recessed mounting
No
Suitable for surface mounting
Yes
Suitable for strip light configuration
No
Suitable for VDU workstations according to EN 12464-1
No
With illuminant
Yes
Cover material
Plastic opal
Rated current
180 mA
With control gear
Yes
Replaceable operating device
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Without dimming function
No
Color consistency (McAdam ellipse)
SDCM6
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
not required
Rated service life L70/B50 at 25 °C
30.000 h
Impact resistance
IK03
Protection class
II
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Suitable for emergency lighting
No
Integrated emergency power supply
No
With motion detector
Yes
With light sensor
No
Covering the luminaire with thermal insulation material possible
No
With air vents
No
Max. System performance
18 W
Luminaire luminous efficacy
54 lm/W
Rated luminous flux according to IEC 62722-2-1
980 lm
Power factor
0,5
Constant luminous flux control
No
Type of wiring
Conclusion
Number of poles
2
Photobiological safety according to EN 62471
RG1
Adjustable color temperature
No
Adjustable luminous flux
No
Adjustable beam angle
No
Operation via Bluetooth
No
Compatible with Casambi
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
Yes
Meets min. EIA service life criterion L90 (at 50,000 h at tq = 25 °C)
No
