Sleek, minimalist 3-phase track spotlight, high wattage

106,02 € inkl. MwSt

SKU: 02-4058075113664
For more information, please refer to the data sheet!

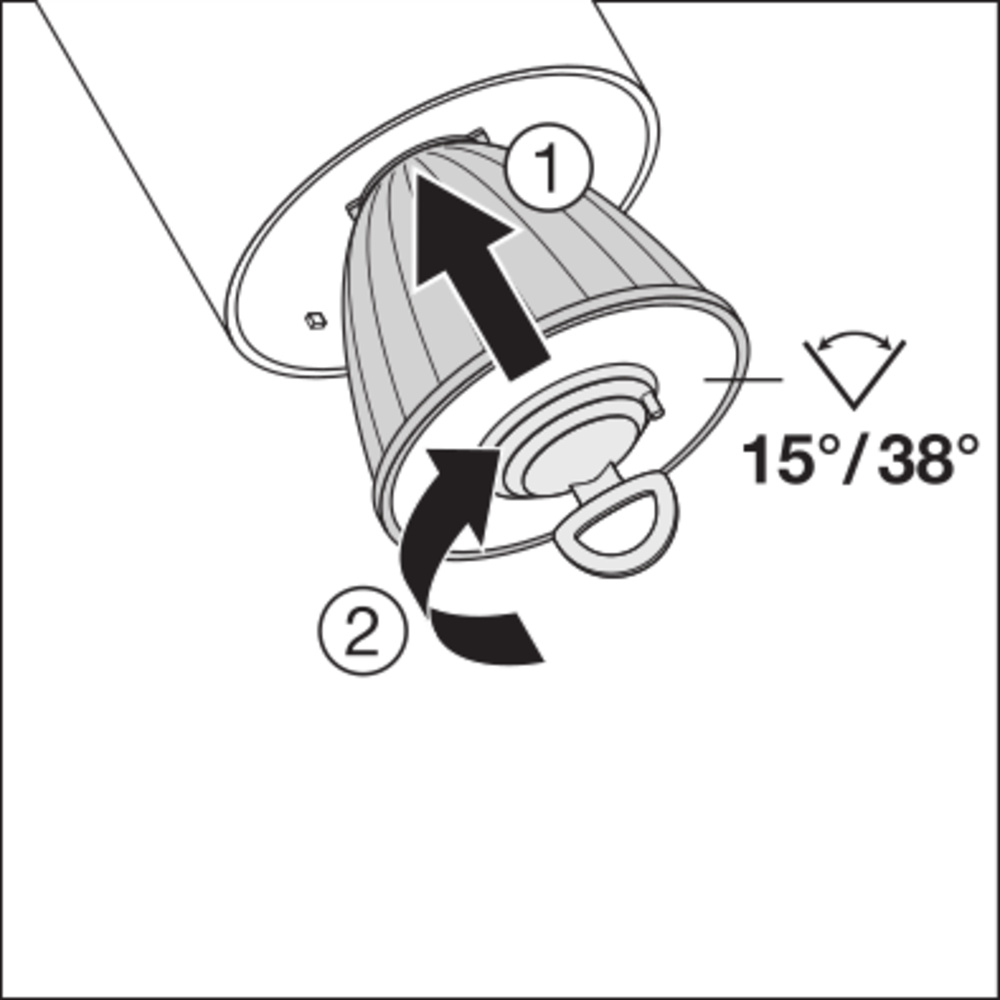

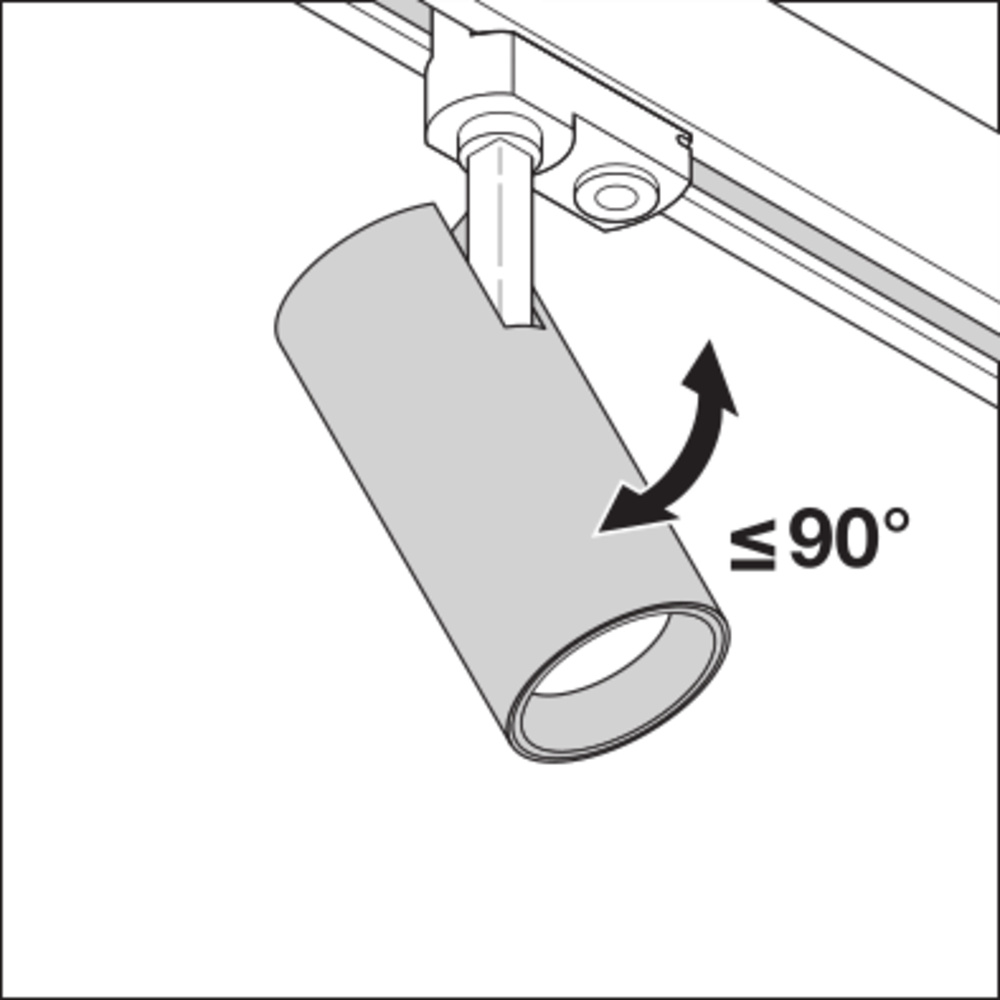

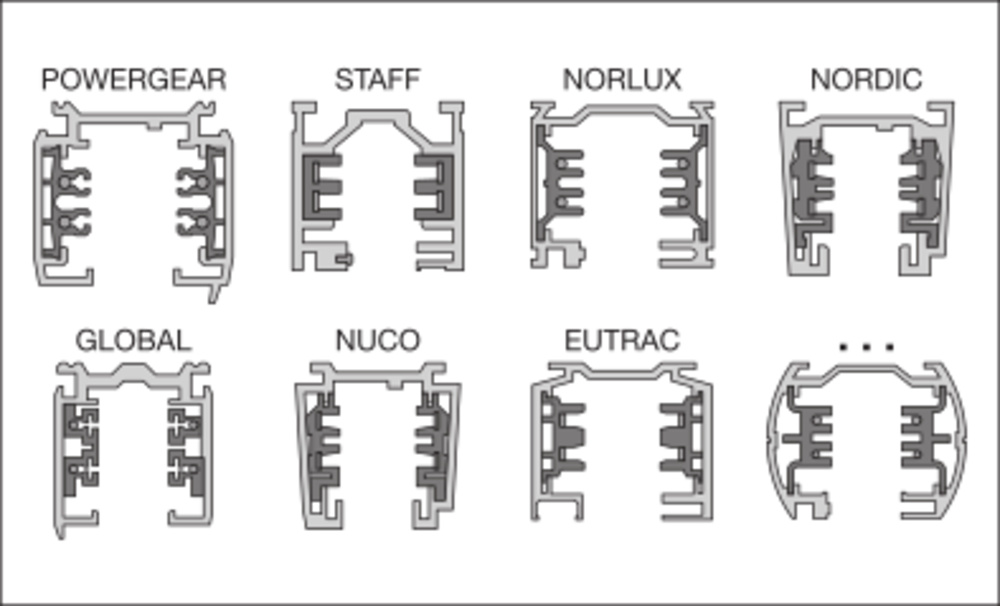

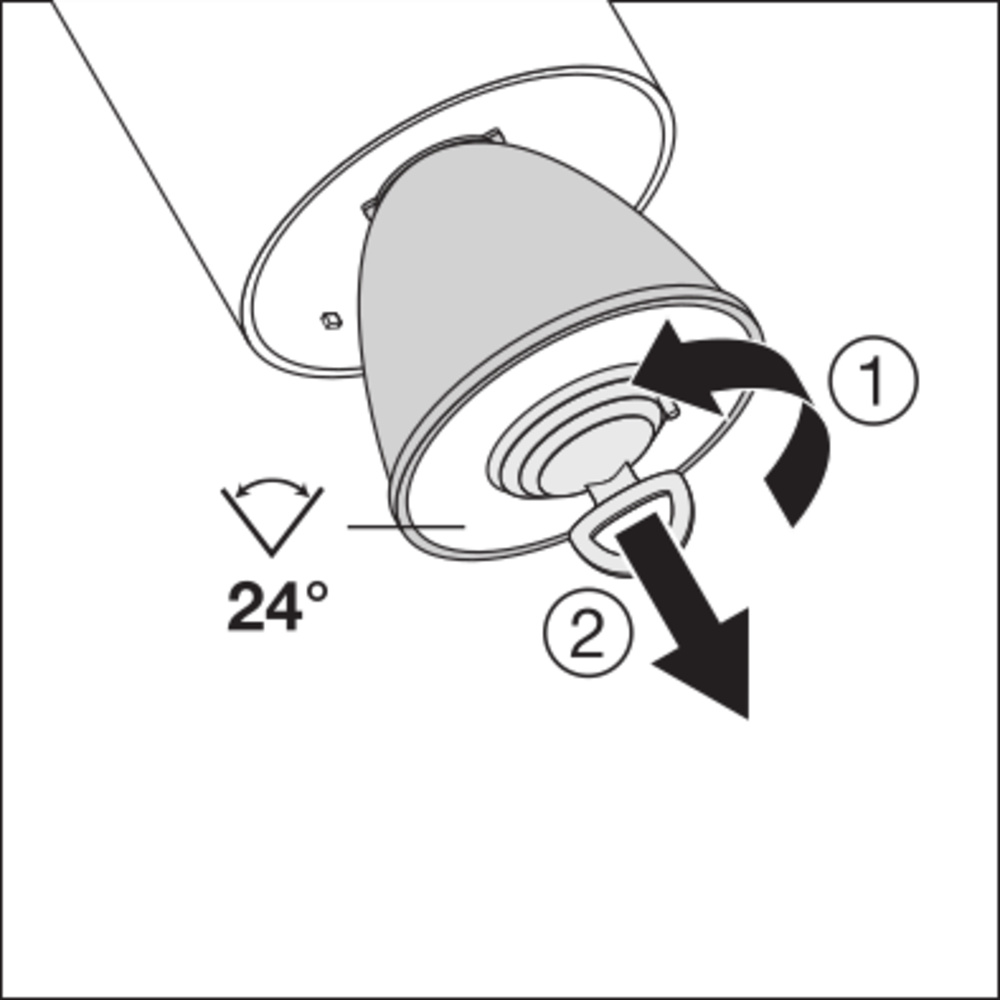

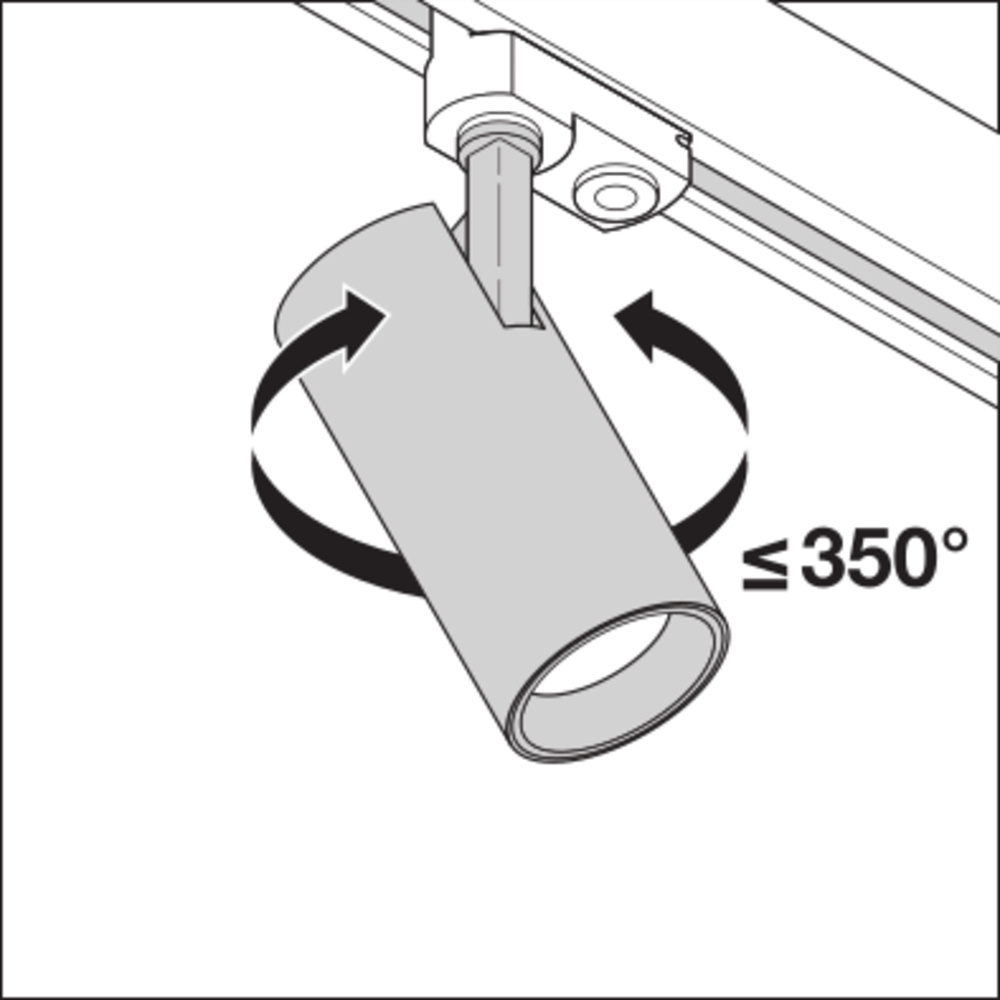

Sleek, minimalist 3-phase track spotlight, high wattage. Product features: Compact track spotlight with integrated ballast. Rotation angle: 350°, tilt angle: 90°. Luminaire luminous efficiency: up to 80 lm/W. Available with colour temperature 3000 K or 4000 K. Very good colour rendering index Ra: > 90. Colour rendering index Ra9: > 50. Initial colour consistency: ≤ 3 SDCM (threshold value unit). Equipped with reflector with 24° beam angle. Follows the uniform design language of LEDVANCE (SCALE Design). Housing made of robust die-cast aluminium. Available in Matte White (similar RAL9016), Matte Black (similar RAL9004), Concrete Gray (similar RAL7042). Product advantages: Included 3-phase adapter compatible with common busbars (GLOBAL, EUTRAC, POWERGEAR, STAFF, NORLUX, NUCO, NORDIC). Deep reflector and black anti-glare ring for minimal glare (UGR < 16). Reflector easily replaceable thanks to bayonet lock and rubber suction cup. No distraction of attention from the illuminated objects thanks to the compact design. Low-flicker light thanks to special electronic ballast. 5-year warranty. Applications: Direct replacement for luminaires that use HID lamps. Accent. Fashion stores, accessory stores. Retail. Hotels, Restaurants, Shops. Technical equipment: Accessory reflectors with 15° or 38° beam angle available.
Weight
1,52 kg
Dimensions
9,5 × 9,5 × 29,7 cm (L/W/H)
Color rendering index CRI

90-100

Color temperature

4.000 K

Adjustability

Rotatable and swiveling

Light source

LED not replaceable

Version

Without

Material of the housing

Aluminum

Housing color

black

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Dimmable

No

Light color

white

Outer diameter

95 mm

Connection type

Busbar adapter

Suitable for surface mounting
Yes
Suitable for recessed mounting
No
Suitable for wall mounting
Yes
Suitable for pendant suspension
Yes
Suitable for ceiling mounting
No
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
With motion detector
No
With light sensor
No
Suitable for number of light sources
0
Surface protection
powder-coated
Cover material
Structured plastic
Brushed surface
No
Rated current
240 mA
With control gear
Yes
Replaceable operating device
No
Dimming DALI-2
No
DALI dimming
No
Dimming phase cut-off
No
Phase control dimming
No
Reflector
high gloss
Light distributor
Reflector
Light distribution
symmetrical
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
F
Ambient product after 2019/2020/EU
Yes
Distortion factor (THD)
15 %
Rated service life L70/B50 at 25 °C
50.000 h
Impact resistance
IK02
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Max. System performance
55 W
Adjustable color temperature
No
Rated luminous flux according to IEC 62722-2-1
4.200 lm
Adjustable luminous flux
No
Luminaire luminous efficacy
75 lm/W
Adjustable beam angle
No
Number of poles
2
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Max. number of luminaires per miniature circuit breaker B16
30
Max. number of luminaires per miniature circuit breaker C16
38
Photobiological safety according to EN 62471
RG1
Suitable for VDU workstations according to EN 12464-1
No
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Color consistency (McAdam ellipse)
SDCM3
Compatible with Apple HomeKit
No
Operation via Bluetooth
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
