Pendant lamp for single or continuous lighting applications
5. August 2026
ledvance/asset-3417738.jpg

Pendant lamp for single or continuous lighting applications

62,46 € inkl. MwSt

SKU: 02-4058075109766
For more information, please refer to the data sheet!

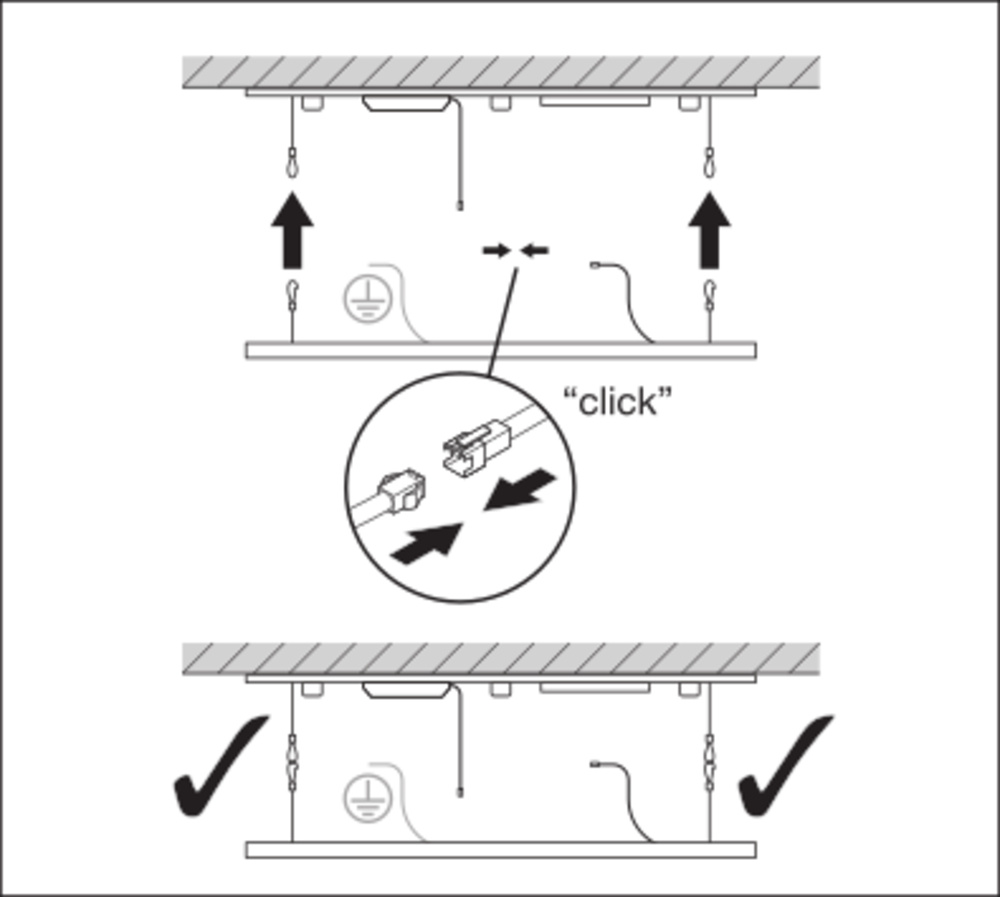

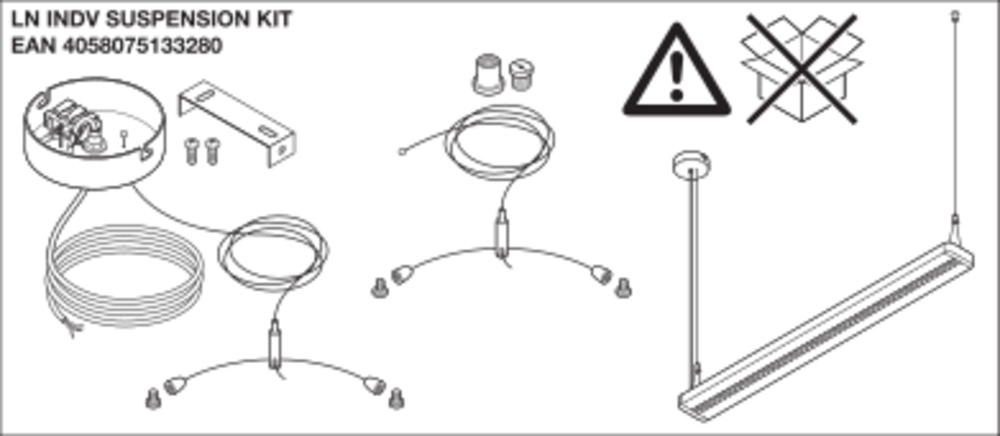

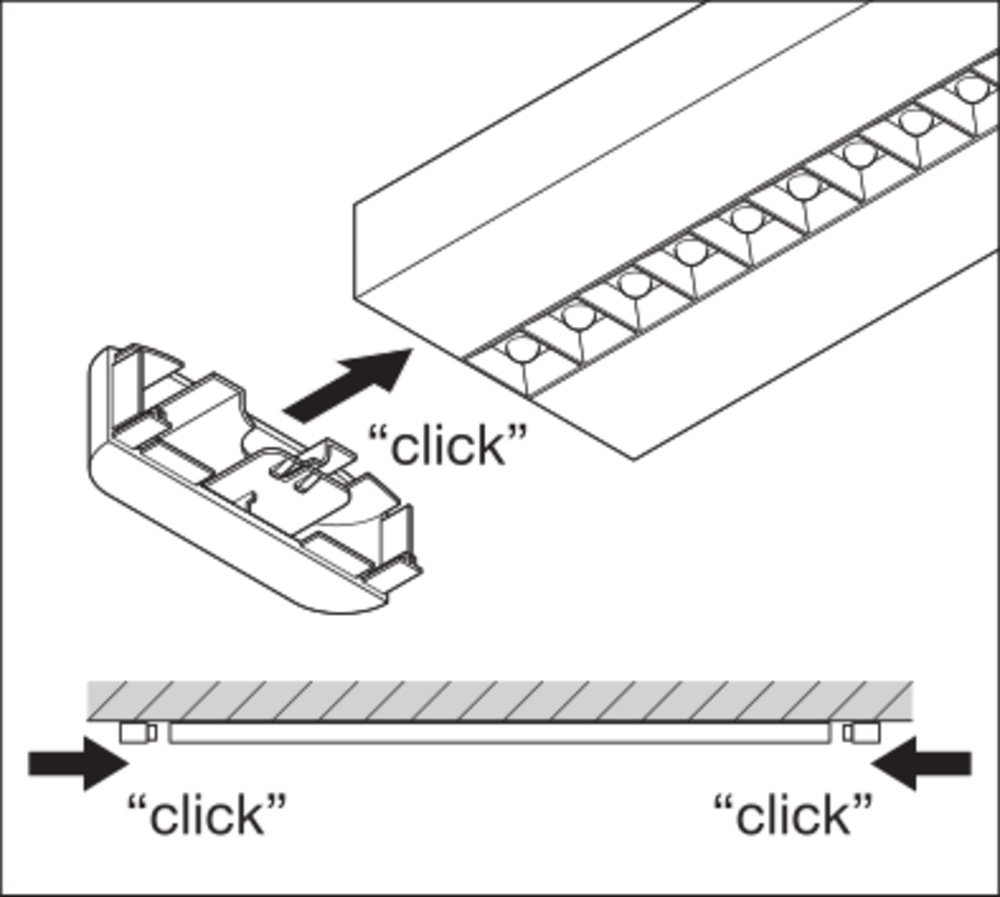

Pendant lamp for single or continuous rooflight applications. Product features: Each LED with individual lens and reflector for UGR < 16 and homogeneous light distribution. Indirect lighting with 850 lm. Suspended mounting with suspension set. Can be connected to a seamless continuous rooflight using a mechanical connector (for surface-mounted or suspended mounting). Versions with lengths of 1200 or 1500 mm are available. Luminous flux up to 6550 lm. Luminous efficiency: up to 120 lm/W. Initial colour consistency: 3 SDCM (threshold value unit). Glow wire test according to IEC 60695-2-12: 850 °C. Lifetime (L70/B50): 60,000 h (at 25 °C). Product advantages: Homogeneous light distribution and reduced glare thanks to the IndiviLED® optics. Increased lighting comfort with direct and indirect beam characteristics. The product family offers comprehensive solutions for a wide range of applications. Up to 50% energy savings compared to T5 light strips. Rugged housing with IK06. Versions with DALI-ECG available. 5-year warranty. Areas of application: Direct replacement for luminaires with fluorescent lamps. Offices, schools. General interior lighting. Corridors, entrance areas. Seamless light strips. Shop lighting. Technical equipment: Ceiling junction box available. Suspension set available. Mechanical connector available. Through-wiring set available.
Weight
3,2 kg
Dimensions
148,8 × 12 × 4 cm (L/W/H)
Color rendering index CRI

80-89

Light color

white

Dimmable

No

Voltage type

AC

Material of the housing

Aluminum

Light source

LED not replaceable

Version

Without

Housing color

white

Nominal voltage

220 – 240 V

Protection class (IP)

IP20

Color temperature

3.000 K

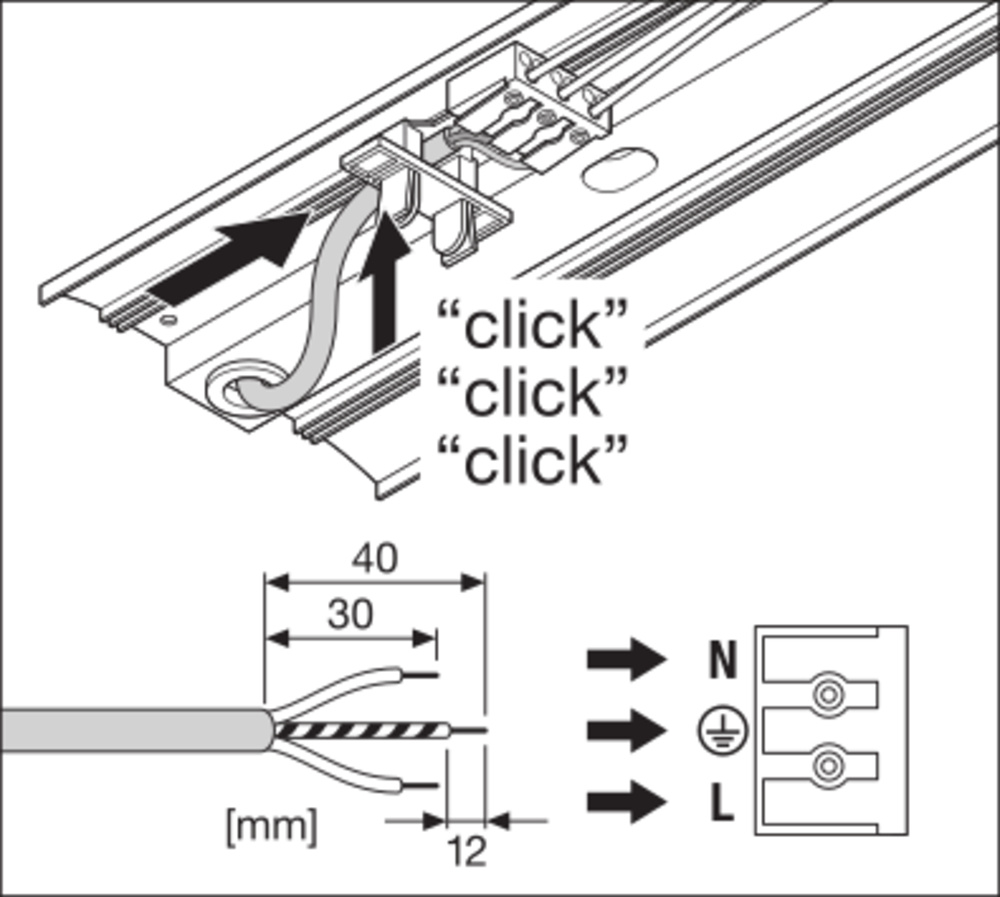

Connection type

Plug-in terminal

Suitable for strip light configuration
No
Suitable for VDU workstations according to EN 12464-1
Yes
With illuminant
Yes
Suitable for number of light sources
0
Cover material
sonstige
Design of the grid
other
Rated current
320 mA
With control gear
Yes
Replaceable operating device
No
Dimming 0-10 V
No
Dimming 1-10 V
No
DALI dimming
No
Dimming DALI-2
No
DMX dimming
No
Dimming DSI
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Dimming potentiometer (device-integrated)
No
Phase control dimming
No
Programmable dimming
No
Dimming Touch and Dim
No
RF dimming
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Focus lens
Reflector
Without

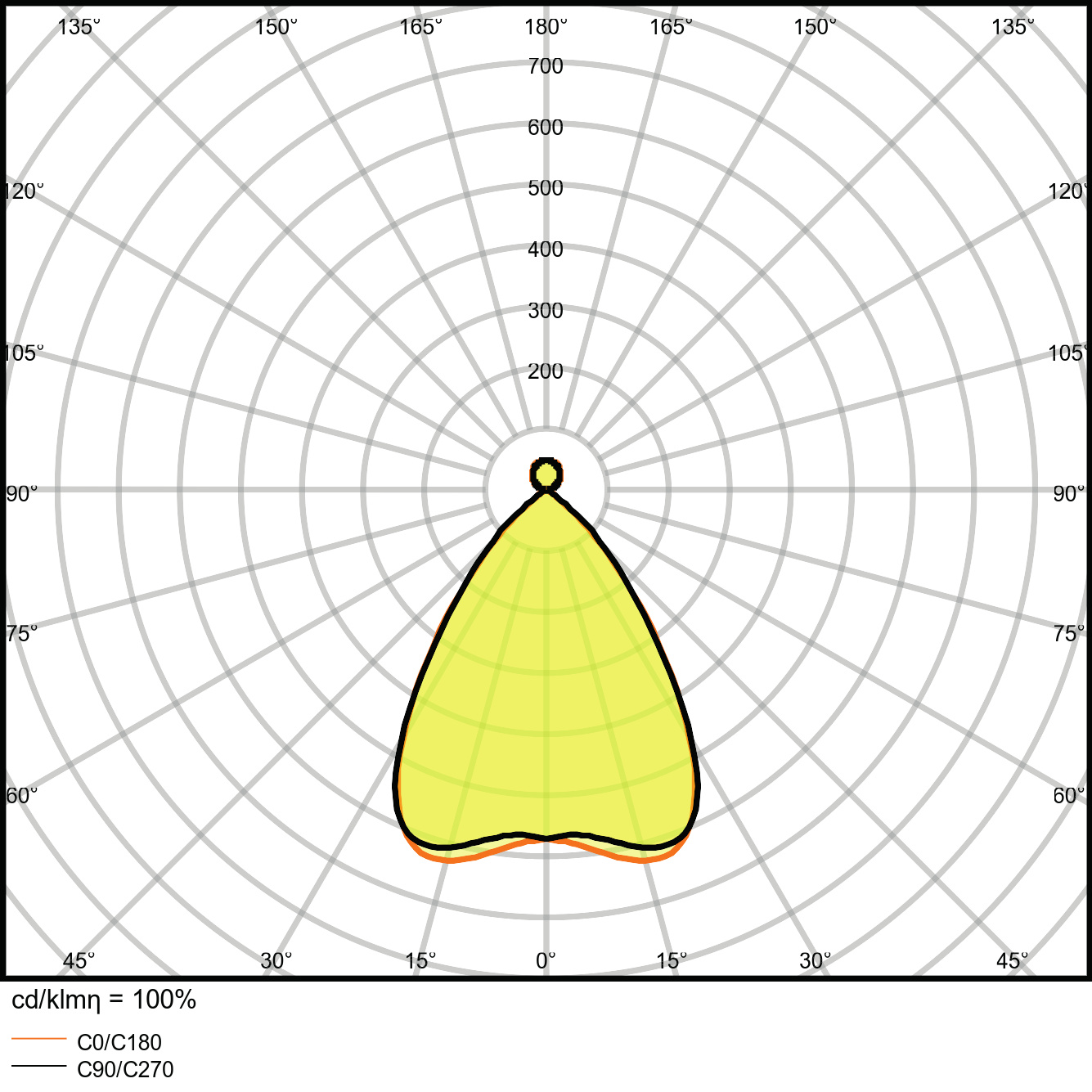

Light distribution
symmetrical
Color consistency (McAdam ellipse)
SDCM3
Light emission
direct/indirect
Direct/indirect components separately adjustable
No
Energy efficiency class of the light source according to EU Directive 2019/2015
F
Ambient product after 2019/2020/EU
Yes
Rated service life L70/B50 at 25 °C
60.000 h
Max. number of luminaires per miniature circuit breaker B16
16
Max. number of luminaires per miniature circuit breaker C16
24
Impact resistance
IK06
Protection class according to IEC 61140
I
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Suitable for emergency lighting
No
With motion detector
No
With light sensor
No
Rated luminous flux according to IEC 62722-2-1
6.150 lm
Max. System performance
56 W
Constant luminous flux control
No
Adjustable color temperature
No
Adjustable luminous flux
No
Adjustable beam angle
No
With suspension
No
Pendulum length
1.500 mm
Number of poles
2
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation via Bluetooth
No
