Pendant lamp for single or continuous lighting applications

Kein Preis verfügbar

Request quotation »There is currently no price information available for this item.
SKU: 02-4058075109728
For more information, please refer to the data sheet!
Pendant lamp for single or continuous rooflight applications. Product features: Each LED with individual lens and reflector for UGR < 16 and homogeneous light distribution. Indirect lighting with 850 lm. Suspended mounting with suspension set. Can be connected to a seamless continuous rooflight using a mechanical connector (for surface-mounted or suspended mounting). Versions with lengths of 1200 or 1500 mm are available. Luminous flux up to 6550 lm. Luminous efficiency: up to 120 lm/W. Initial colour consistency: 3 SDCM (threshold value unit). Glow wire test according to IEC 60695-2-12: 850 °C. Lifetime (L70/B50): 60,000 h (at 25 °C). Product advantages: Homogeneous light distribution and reduced glare thanks to the IndiviLED® optics. Increased lighting comfort with direct and indirect beam characteristics. The product family offers comprehensive solutions for a wide range of applications. Up to 50% energy savings compared to T5 light strips. Rugged housing with IK06. Versions with DALI-ECG available. 5-year warranty. Areas of application: Direct replacement for luminaires with fluorescent lamps. Offices, schools. General interior lighting. Corridors, entrance areas. Seamless light strips. Shop lighting. Technical equipment: Ceiling junction box available. Suspension set available. Mechanical connector available. Through-wiring set available.
Dimensions
119,9 × 12 × 4 cm (L/W/H)

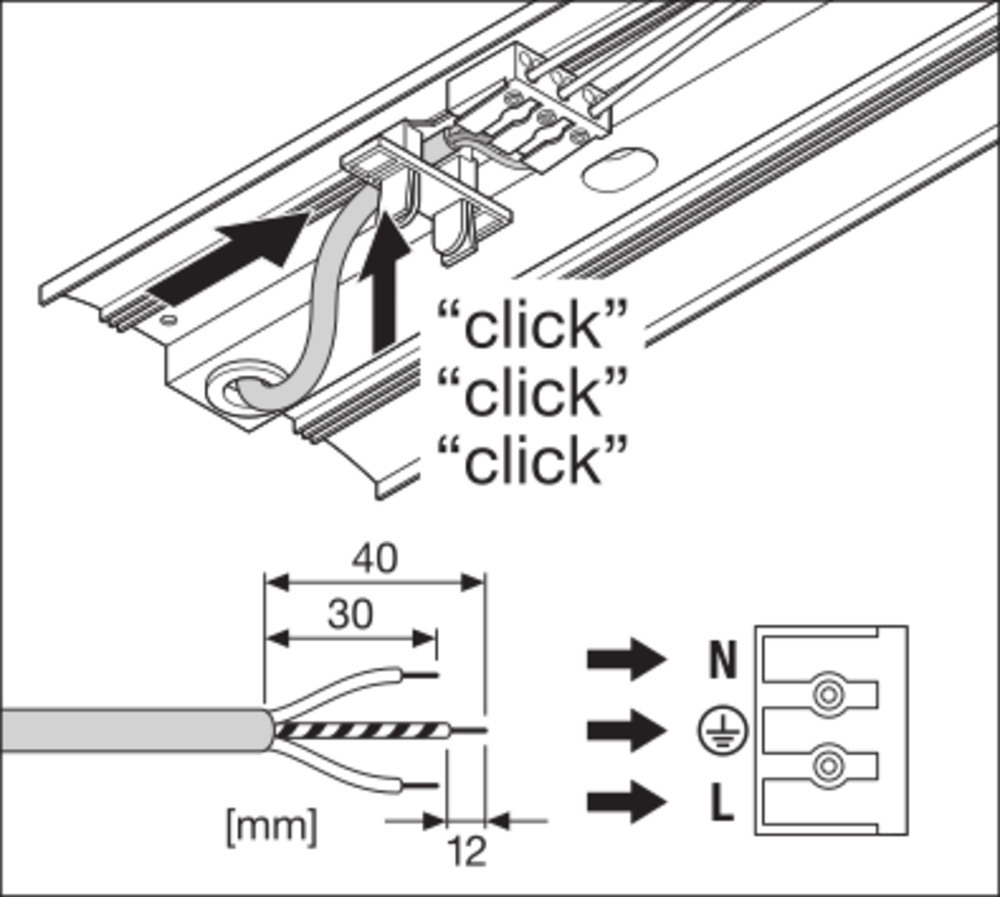

Connection type

Plug-in terminal

Color temperature

3.000 K

Protection class (IP)

IP20

Voltage type

AC

Material of the housing

Aluminum

Light source

LED not replaceable

Version

Without

Housing color

white

Nominal voltage

220 – 240 V

Light color

white

Color rendering index CRI

80-89

Suitable for strip light configuration
No
Suitable for VDU workstations according to EN 12464-1
Yes
With illuminant
Yes
Suitable for number of light sources
0
Design of the grid
other
Rated current
230 mA
With control gear
Yes
Replaceable operating device
No
Dimming 0-10 V
No
Dimming 1-10 V
No
DALI dimming
No
Dimming DALI-2
No
DMX dimming
No
Programmable dimming
No
Dimming DSI
No
RF dimming
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Without dimming function
Yes
Light distributor
Focus lens
Reflector
Without

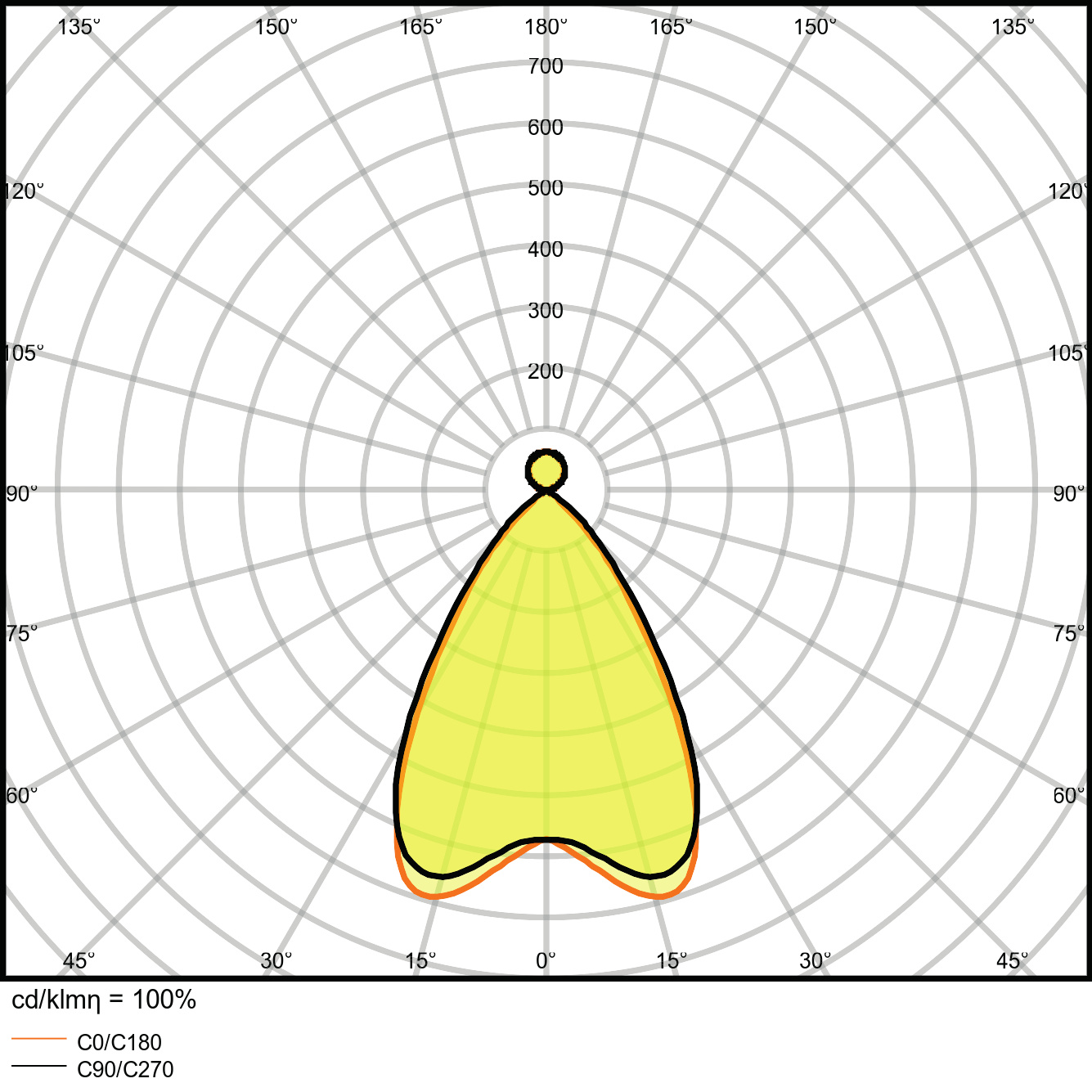

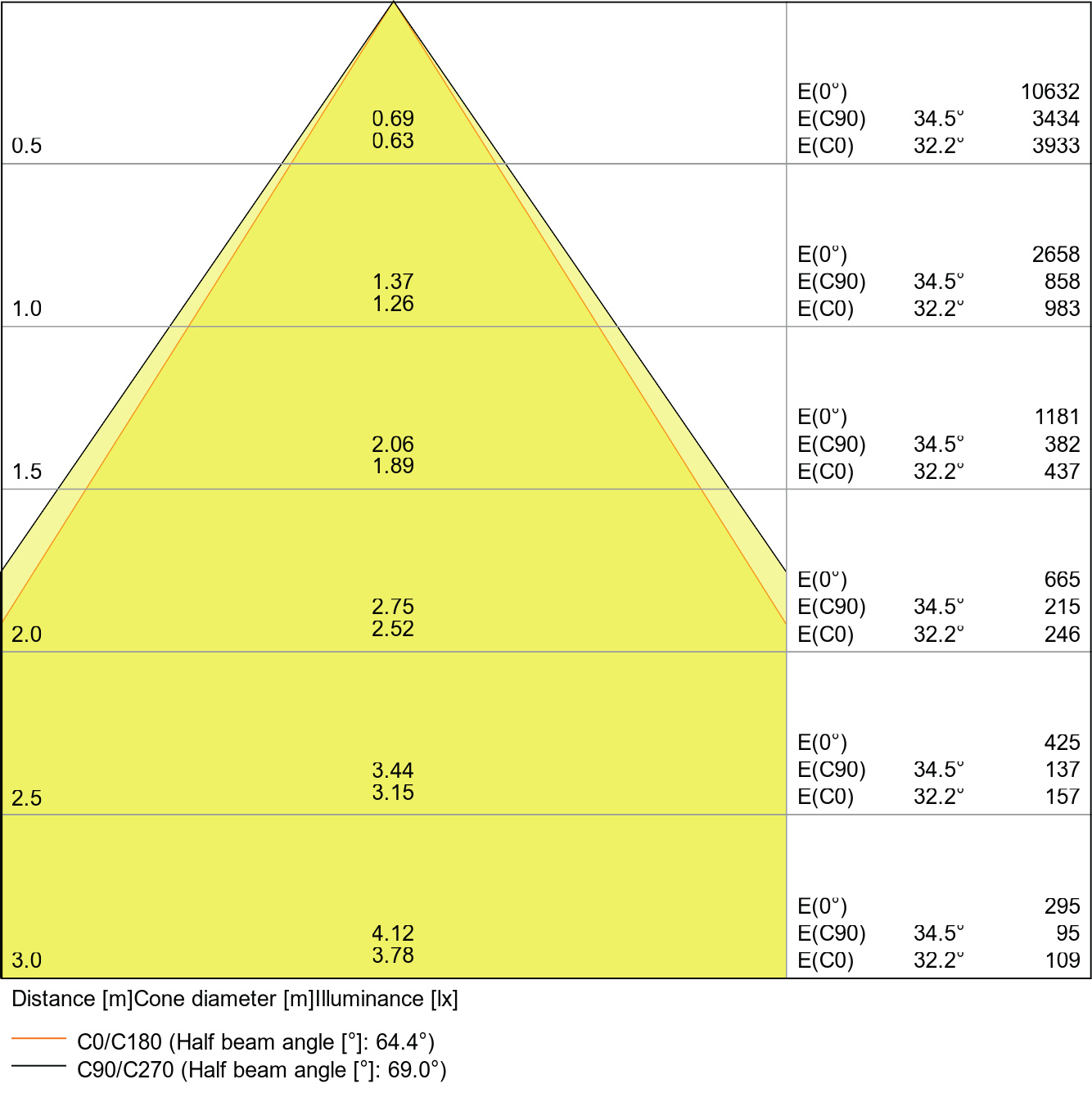

Light distribution
symmetrical
Color consistency (McAdam ellipse)
SDCM3
Light emission
direct/indirect
Direct/indirect components separately adjustable
No
Energy efficiency class of the light source according to EU Directive 2019/2015
not required
Rated service life L70/B50 at 25 °C
60.000 h
Max. number of luminaires Miniature circuit breaker B16
25
Max. Number of lights Circuit breaker C16
32
Impact resistance
IK06
Protection class
I
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Suitable for emergency lighting
No
Integrated emergency power supply
No
Max. System performance
42 W
Rated luminous flux according to IEC 62722-2-1
4.650 lm
Luminaire luminous efficacy
110 lm/W
Glare limitation (UGR)
16
Power factor
0,9
Constant luminous flux control
No
Adjustable color temperature
No
Adjustable luminous flux
No
Adjustable beam angle
No
With suspension
No
Pendulum length
1.500 mm
Type of wiring
Suitable for through-wiring
Number of poles
2
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
Yes
Operation via Bluetooth
No
