Compact luminaire with high luminous flux for single or continuous continuous lighting applications
31. October 2024
Compact luminaire with high luminous flux for single or continuous continuous lighting applications
31. October 2024

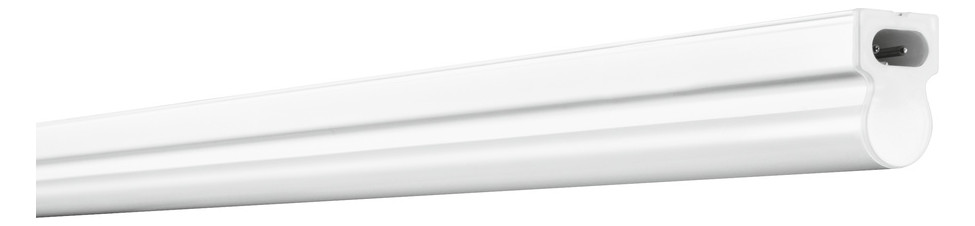

ledvance/asset-55298.jpg

Compact luminaire with high luminous flux for single or continuous continuous lighting applications

SKU: 02-4058075106352
Datasheet: Download PDF
For more information, please refer to the data sheet!
Compact luminaire with high luminous flux for single or continuous lighting applications. Product features: Replacement for conventional T8 or T5 luminaires. Up to 10 luminaires can be connected to each other. Transparent end caps. Linear Compact Batten connectable at the beginning of the continuous rooflight with wiring on the back. Versions with luminous flux 1000... 2500 lm available. 4 different lengths available. High luminous efficiency: up to 100 lm/W. Glow wire test according to IEC 60695-2-12: 850 °C. Product advantages: Compact dimensions. Takes up little space thanks to its compact dimensions. Seamless connection option with up to 10 luminaires per continuous lighting installation. High luminous flux up to 2500 lm. Seamless connection without visible cables when combined with Linear Compact Batten. Low-flicker light thanks to special electronic ballast. Angular connection possible with enclosed cable. Flexible installation at 2 different angles thanks to 2 mounting options. Flexible application thanks to a wide range of available lengths from 600 to 1500 mm. 5-year warranty. Areas of application: Direct replacement for luminaires with fluorescent lamps. Interior applications. Corridors, entrance areas, stairwells, living rooms, basements. Accent. Public space. Cove lighting. shelves, furniture integration or substructure. Seamless light strips. Technical equipment: Equipped with power plug, cable connector and line connector for connecting other luminaires. Mounting material for wall and ceiling mounting included.
Weight
0,6 kg
Minimum order quantity

25 pieces

Order step

25 pieces

Weight

0,6 kg

Product group

Light strip (EC000109)

Replaceable operating device

No

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes

Light source

LED not replaceable

Suitable for number of light sources

0

Version

Without

Material

Plastic

Housing color

white

Voltage type

AC

Nominal voltage

220 – 240 V

LED rated current with constant current

0,12 mA

Operating device

EVG

Without dimming function

Yes

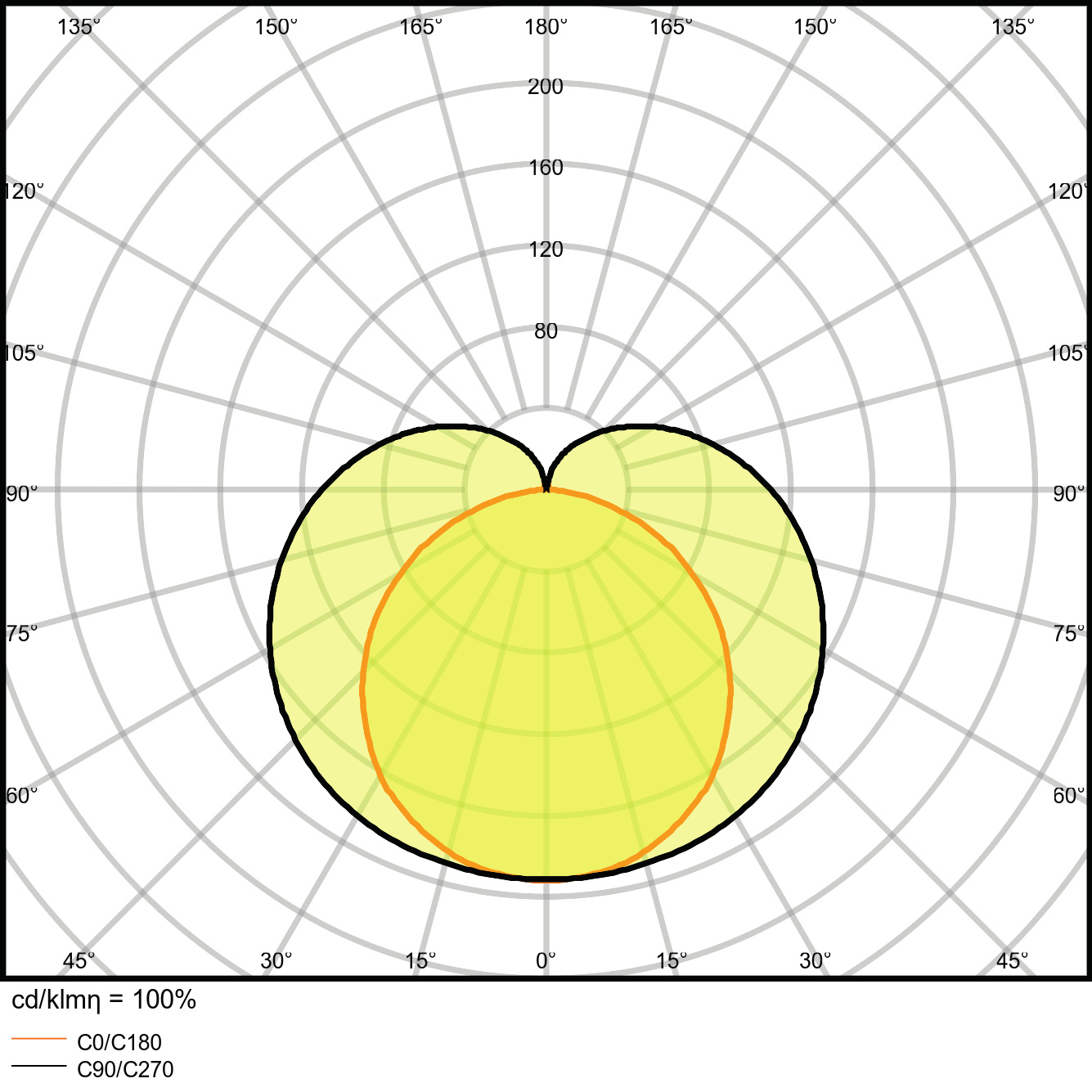

Light distributor

Diffuser lens/optics/panel

Rated service life L70/B50 at 25 °C

50.000 h

Rated service life L80/B10 at 25 °C

40.000 h

Protection class (IP)

IP20

Protection class

II

With switch

No

Max. System performance

25 W

Rated luminous flux according to IEC 62722-2-1

2.500 lm

Color temperature

3.000 K

Width

24 mm

Height/depth

36 mm

Length

1.473 mm

Type of wiring

with through-wiring

Number of poles

3

Connection type

Screw terminal

Electrical connection with plug-in system

No

With illuminant

Yes

With control gear

Yes

RoHS applicable

Yes

Country of origin

China (CN)

Commodity code

Chandeliers and other electric ceiling and wall lights, with LED light source, made of plastic or ceramic materials (94051140)

REACH Indicator

No

Datenblatt
4058075106352_tds_de.pdfasset-4013529-1.pdfasset-4245892-1.pdfasset-3598905.jpgasset-13040037-1.pdfasset-11535548.jpg
Suitable for number of light sources

0

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

DMX dimming

No

Dimming DSI

No

Dimming potentiometer (device-integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Covering the luminaire with thermal insulation material possible

No

Suitable for emergency lighting

No

Integrated emergency power supply

No

With motion detector

No

Rated current

0,12 mA

Energy efficiency class of the light source according to EU Directive 2019/2015

not required

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Luminaire luminous efficacy

100 lm/W

Color rendering index CRI

80-89

Power factor

0,9

Operation via Bluetooth

No
