Schwenkbarer Einbaustrahler
5. August 2026
ledvance/asset-3152824.jpg

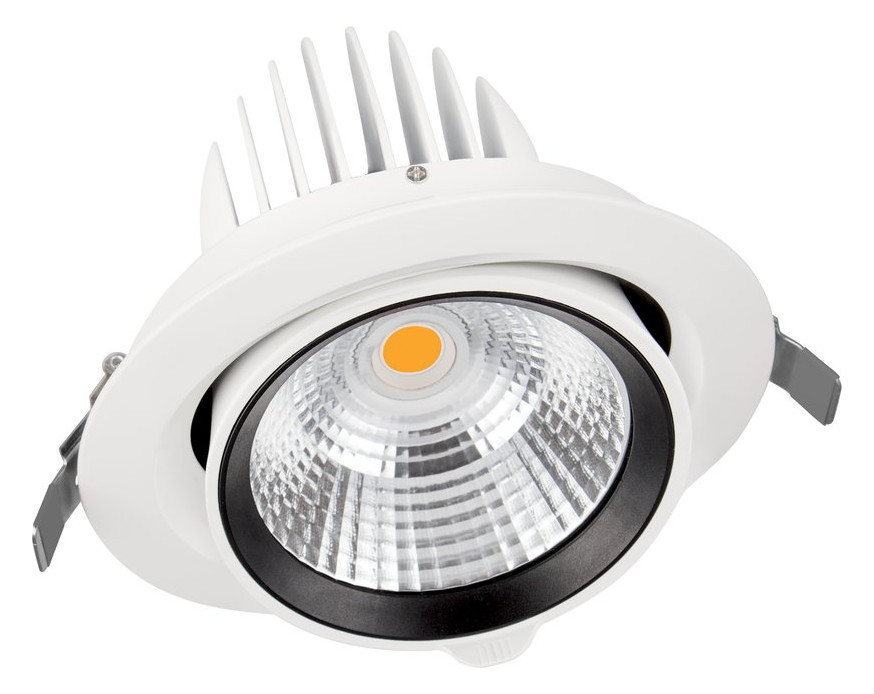

Schwenkbarer Einbaustrahler

80,74 € inkl. MwSt

SKU: 4058075104020
For more information, please refer to the data sheet!

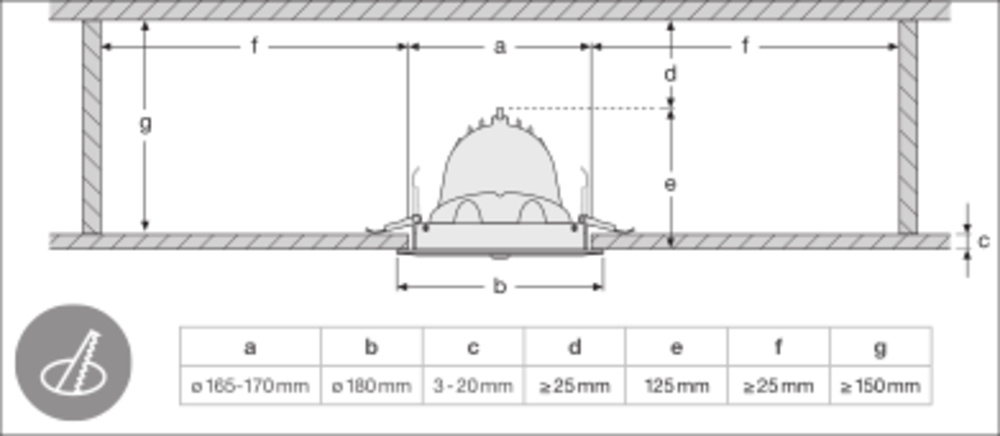

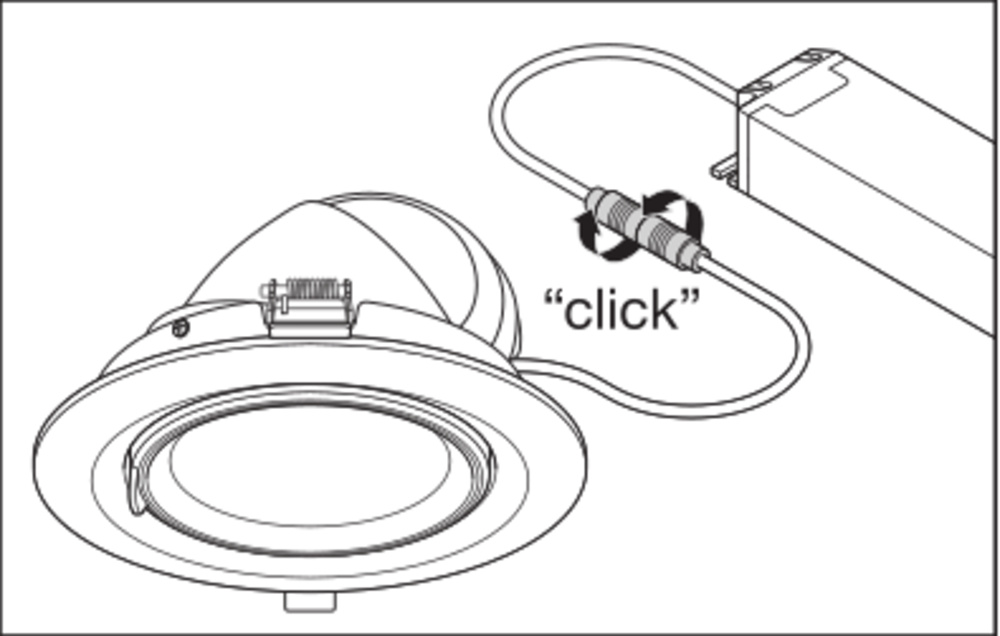

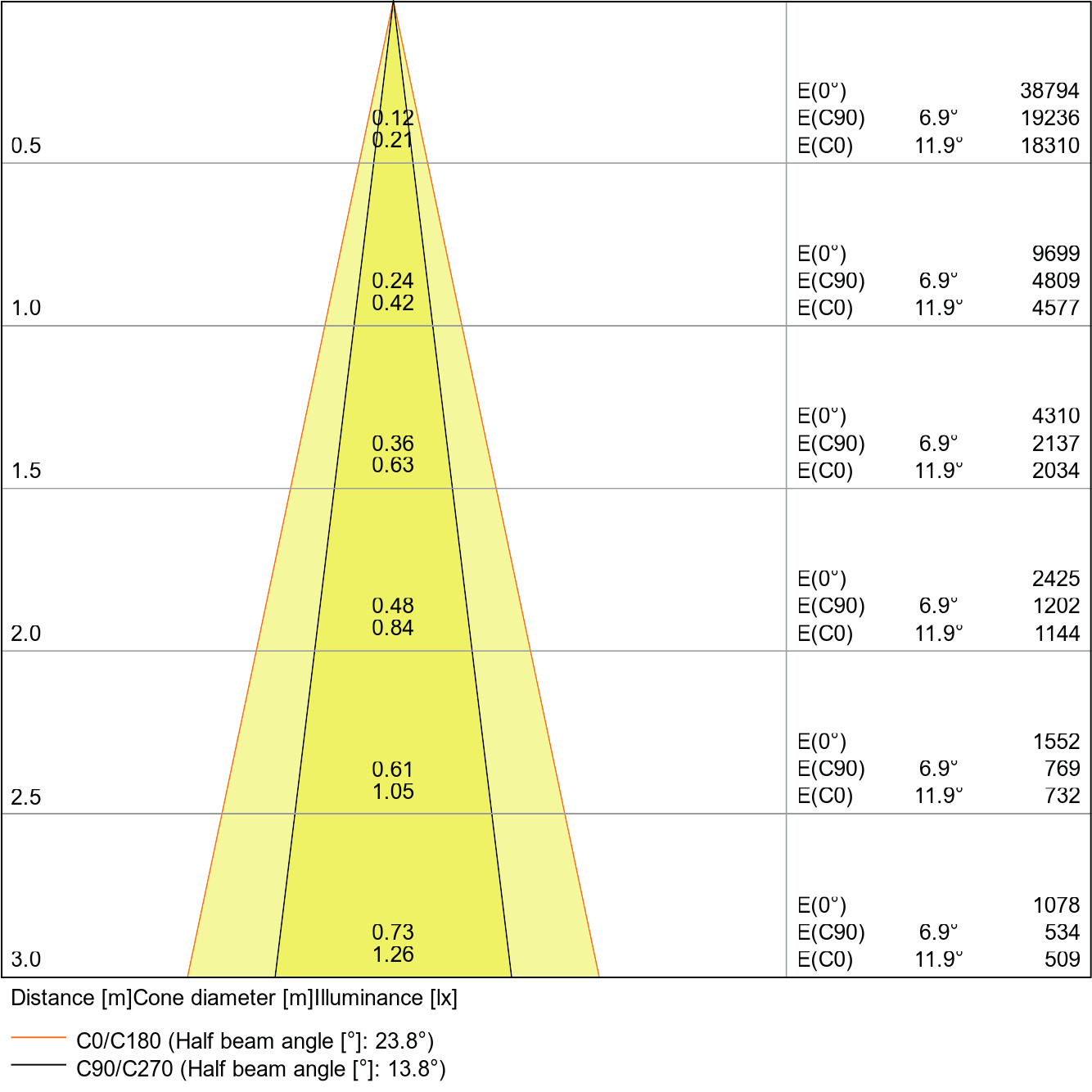

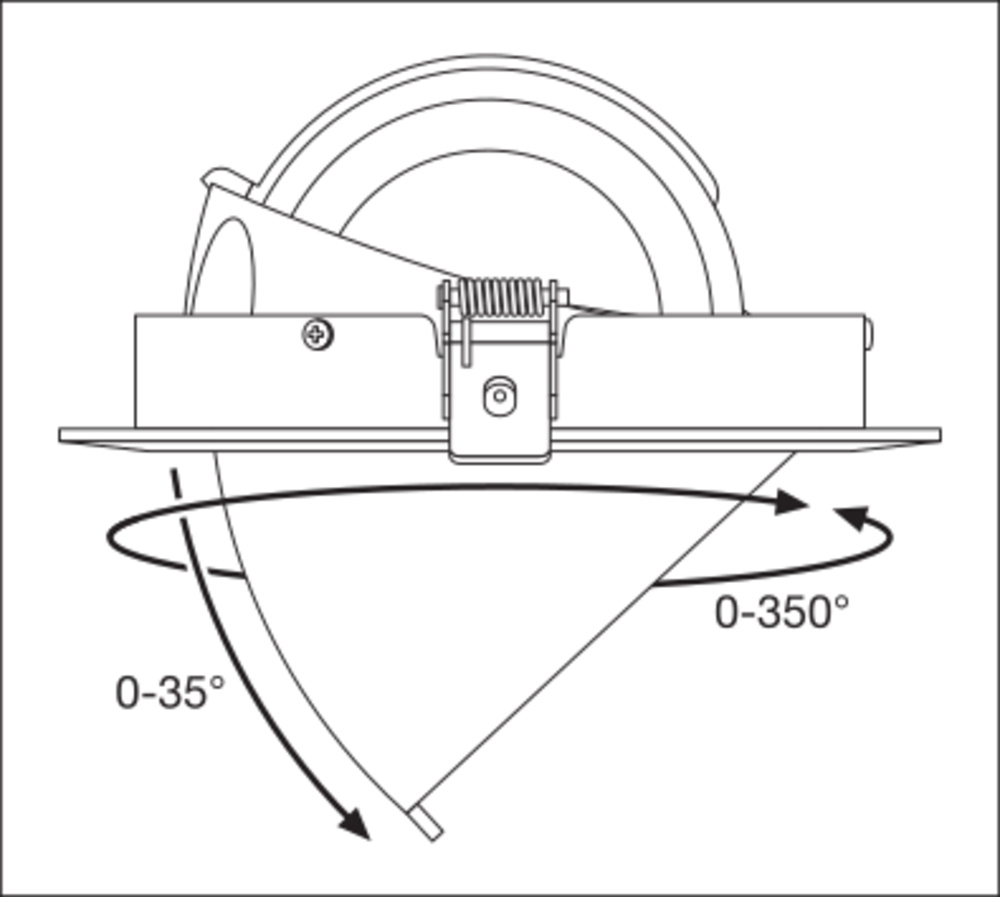

Schwenkbarer Einbaustrahler. Produkteigenschaften: Großer facettierter Reflektor für hohe Lichtausbeute. Ausstrahlungswinkel: 24°. Drehwinkel: 0°...350°, Neigungswinkel: 0°...35°. Durchmesser des erforderlichen Deckenausschnitt: 165 ... 170 mm. Produktvorteile: Flimmerarmes Licht dank speziellem elektronischen Vorschaltgerät. Hohe Lichtausbeute. Gehäuse aus Druckgussaluminium für verbesserte Wärmeableitung. Einfacher Austausch des externen Treibers dank Stecker mit Bajonettverschluss. Design passt zur LEDVANCE Spot-, Down- und Tracklight-Leuchtenfamilie. Geringe Einbautiefe. Vielfältige Möglichkeiten, die Zielbereiche zu akzentuieren. 5 Jahre Garantie. Anwendungsgebiete: Akzent- und Allgemeinbeleuchtung für alle Arten von Verkaufsräumen. Einzelhandel. Supermärkte. Shops, Boutiquen. Hotelzimmer. Treppenhäuser. Flure. Lobbys. Technische Ausstattung: Treiber inbegriffen. Sicherheitshinweise: Alle elektrischen Anschlüsse dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Vorsicht, Gefahr des elektrischen Schlages. Die Leuchten sind nicht für die Abdeckung mit wärmedämmenden Material bestimmt.
Weight
1,126 kg
Dimensions
18 × 15 cm (W/H)
Color rendering index CRI

80-89

Color temperature

3.000 K

Adjustability

Rotatable and swiveling

Light source

LED not replaceable

Version

Without

Material of the housing

Aluminum

Housing color

white

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

Dimmable

No

Light color

white

Outer diameter

180 mm

Installation height

150 mm

Suitable for surface mounting
Yes
Suitable for recessed mounting
Yes
Suitable for wall mounting
No
Suitable for pendant suspension
No
Suitable for ceiling mounting
Yes
Suitable for truss mounting
No
Suitable for platform/floor mounting
No
Suitable for busbar mounting
No
Suitable for clamp mounting
No
Suitable for cable system
No
With motion detector
No
With light sensor
No
With illuminant
Yes
Suitable for number of light sources
0
Surface protection
powder-coated
Cover material
Structured plastic
Brushed surface
No
Rated current
850 mA
With control gear
Yes
Replaceable operating device
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI-2
No
DALI dimming
No
DMX dimming
No
Dimming DSI
No
Dimming potentiometer (device-integrated)
No
Dimming LineSwitch
No
Dimming manufacturer-specific
No
Dimming Mains voltage modulation
No
Dimming phase cut-off
No
Phase control dimming
No
Programmable dimming
No
RF dimming
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Reflector
high gloss
Light distributor
Reflector

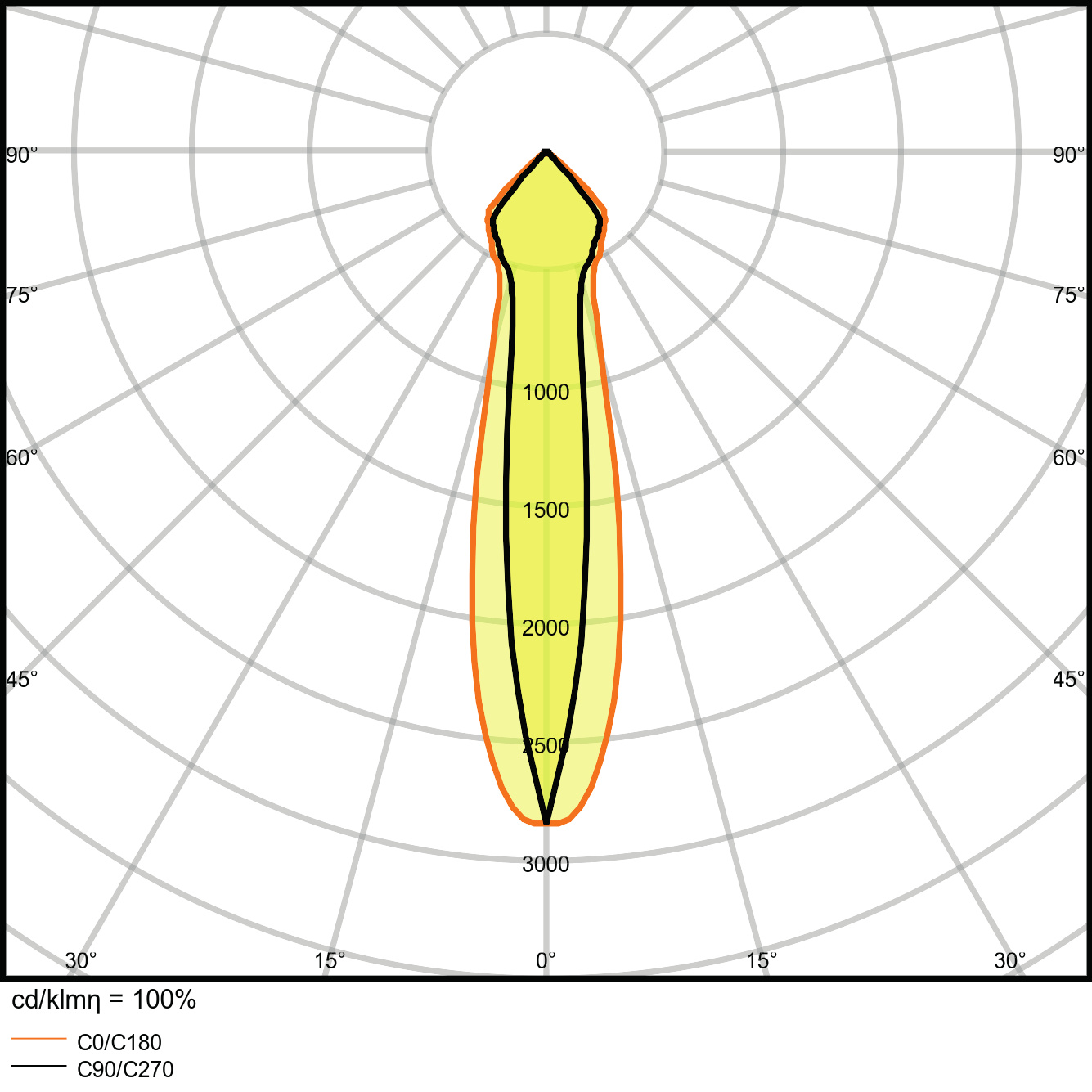

Light distribution
symmetrical
Light emission
direct
Energy efficiency class of the light source according to EU Directive 2019/2015
F
Ambient product after 2019/2020/EU
Yes
Distortion factor (THD)
20 %
Rated service life L70/B50 at 25 °C
50.000 h
Constant luminous flux control
No
Impact resistance
IK03
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-20 - 45 °C
Max. System performance
35 W
Adjustable color temperature
No
Rated luminous flux according to IEC 62722-2-1
3.350 lm
Adjustable luminous flux
No
Luminaire luminous efficacy
95 lm/W
Adjustable beam angle
No
Installation length
170 mm
Installation width
170 mm
Installation diameter
170 mm
Type of wiring
Conclusion
Number of poles
2
Luminaire with limited surface temperature "D mark" according to EN 60598-2-24
No
Max. number of luminaires per miniature circuit breaker B16
15
Max. number of luminaires per miniature circuit breaker C16
15
Photobiological safety according to EN 62471
RG1
Suitable for VDU workstations according to EN 12464-1
No
Covering the luminaire with thermal insulation material possible
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Operation via Bluetooth
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
