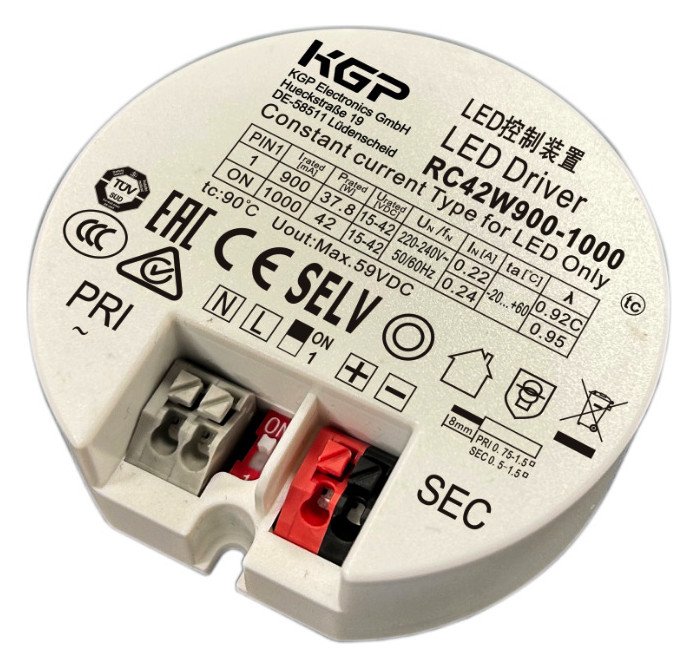

KGP LED Driver Constant Current 220-240VAC 50/60Hz, 0/1000mA, 13.50-42.0W, IP20 RC42W900-1000

SKU: 873-RC42W900-1000
Datasheet: Download PDF
For more information, please refer to the data sheet!
Constant Current LED Driver, IP20, Output Current 900-1000mA, Output Power 13.5 - 42W, Output Voltage 15-42V, Overload Protection, Short Circuit Protection, Open Circuit Protection, 5 Years Warranty
Manufacturer

KGP Electronics GmbH

Execution

Static

Suitable for outdoor use

No

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DSI

No

DMX dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Programmable dimming

No

RF dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Constant luminous flux control

No

Without dimming function

Yes

Housing

Plastic housing

Suitable for constant current

Yes

Suitable for constant voltage

No

Output voltage

15 – 42 V

Output current

900 – 1.000 mA

Suitable for DC voltage (primary side)

No

Output power

W

Power consumption

W

Protection class (IP)

IP20

Protection class

II

Height

25 mm

Diameter

64 mm

Operation via Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Compatible with Casambi

No

IFTTT support available

No

Datenblatt
RC42W900-1000.pdfkgp_reach_declaration_md05-247.pdf
