NANO 3 - Designer Lights white 3W 14° 3000K CRI80 880502011
31. October 2024
NANO 3 - Designer Lights Black 3W 14° 3000K CRI80 880502013
31. October 2024

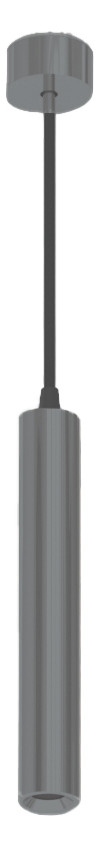

NANO 3 - Designer light fixtures silver 3W 14° 3000K CRI80 880502012

SKU: 850-880502012
Datasheet: Download PDF
For further information, please refer to the data sheet!
Elegant design, the perfect choice for reception rooms, bars and restaurants. Standard version monochrome. Housing made of aluminum. Color tolerance 3 SDCM. Luminous flux decrease after 50,000h L80/B10. Integrated, non-dimmable control gear. Includes canopy and connection cable. Other product configurations on request. 5-year warranty.
Weight
0,6 kg
Family

NANO 3

Suitable for strip light configuration

No

Suitable for VDU workstations according to EN 12464-1

No

Light source

LED replaceable

With illuminant

Yes

Suitable for number of light sources

1

Version

Without

Material of the housing

Aluminum

Housing color

silver

Design of the grid

Without

Voltage type

AC

Nominal voltage

220 – 240 V

Operating device

LED control gear, current-controlled

With control gear

Yes

Replaceable operating device

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

DALI dimming

No

Dimming DALI-2

No

DMX dimming

No

Programmable dimming

No

Dimming DSI

No

RF dimming

No

Dimming potentiometer (device-integrated)

No

Dimming LineSwitch

No

Dimming manufacturer-specific

No

Dimming Mains voltage modulation

No

Dimming phase cut-off

No

Phase control dimming

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Without dimming function

Yes

Light distributor

Diffuser lens/optics/panel

Reflector

other

Color consistency (McAdam ellipse)

SDCM3

Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015

nicht erforderlich

Luminous flux maintenance with average service life 50,000 h at 25 °C ambient temperature

80 %

Failure rate with average service life of 50,000 h at 25 °C ambient temperature (tq)

10 %

Protection class (IP)

IP20

Protection class

I

Luminaire with limited surface temperature "D mark" according to EN 60598-2-24

No

Suitable for emergency lighting

No

Integrated emergency power supply

No

Max. System performance

3 W

Light color

white

Luminaire luminous efficacy

52 lm/W

Color temperature

3.000 K

Color rendering index CRI

80-89

Constant luminous flux control

No

Adjustable color temperature

No

Adjustable luminous flux

No

Adjustable beam angle

No

Height/depth

220 mm

Diameter

35 mm

With suspension

Yes

Pendulum length

1.000 mm

Type of wiring

Conclusion

Connection type

Screw terminal

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Operation via Bluetooth

No
