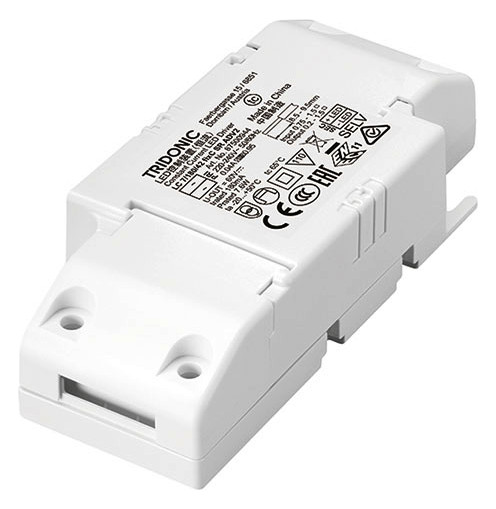

TRIDONIC LED Driver Constant Current LC 7/180/42 fixC SR ADV2 87500944

SKU: 73-87500944
For further information, please refer to the data sheet!
Weight
0,059 kg
Manufacturer

Tridonic Germany GmbH

Independent LED driver with strain relief housing, Extra flat design for limited installation conditions (small ceiling cutouts and low ceiling cavities), For Class I and Class II luminaires, Temperature protection according to EN 61347-2-13 C5e, Output current 180 mA, Nominal service life up to 50,000 h, 5 years warranty, Housing: Polycarbonate, white, IP20 protection, Plug terminals, 2 separate strain reliefs for input and output cables with very robust terminals, Overload protection, Short circuit protection, Open circuit protection, No overshoot of the output current when the mains is switched on or off, Protection against burst voltages 1 kV, Protection against burst voltages 1 kV (between L and N), Protection against surge voltages 2 kV (between L/N and ground), For spotlight and downlight in retail and catering applications, For panel and area lighting in office and education applications
