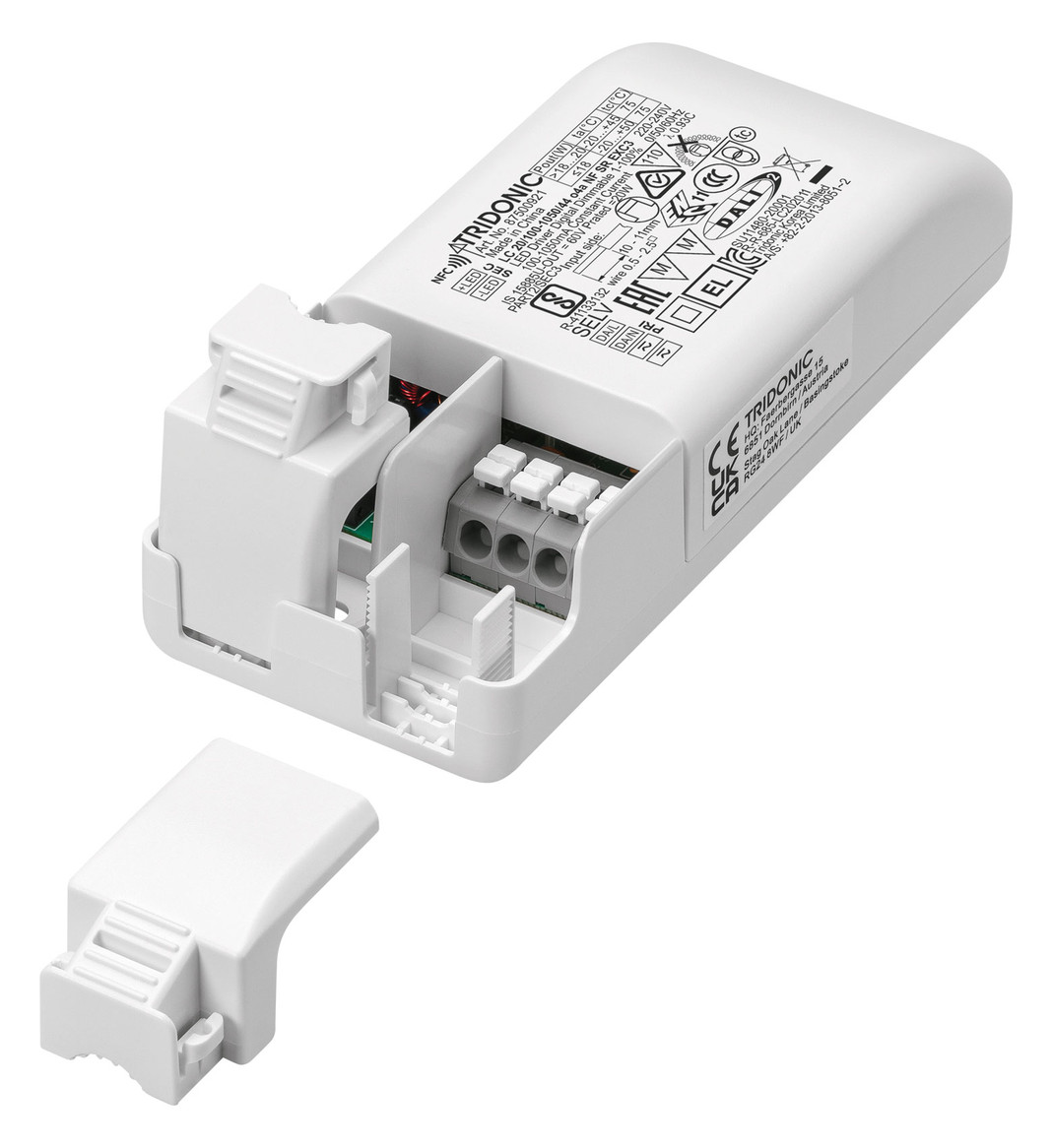

TRIDONIC LED Driver Constant Current LC 20/100-1050/44 o4a NF SR EXC3 87500921

SKU: 73-87500921
For further information, please refer to the data sheet!
Weight
0,104 kg
Manufacturer

Tridonic Germany GmbH

Independent constant current LED driver, Dimmable with DALI-2, Dimming range from 1 – 100 % (min. 5 mA), Output current adjustable between 100 – 1,050 mA with DALI or NFC, Max. output power 20 W, Up to 85 % efficiency, Stand-by < power consumption 0.4 W, Nominal service life up to 100,000 h, 5-year warranty, Housing: Polycarbonate, white, IP20 protection, Tool-free installation of strain relief, Near-field communication (NFC), one4all (DALI-2 DT 6, switchDIM, corridorFUNCTION V2), Adjustable output current in 1 mA steps (NFC, DALI-2), Constant Light Output Function (CLO), Protection functions (overtemperature, short circuit, overload, no-load), Shock protection voltage 1 kV (L – N), Suitable for emergency lighting systems according to EN 50172, For wire diameters up to 2.5 mm², Flexible configuration via companionSUITE (NFC, DALI-2), Application-oriented operating window for maximum compatibility, New strain relief concept – Faster installation and pre-assembled clamping of the LED load possible, For applications in downlights and decorative luminaires
