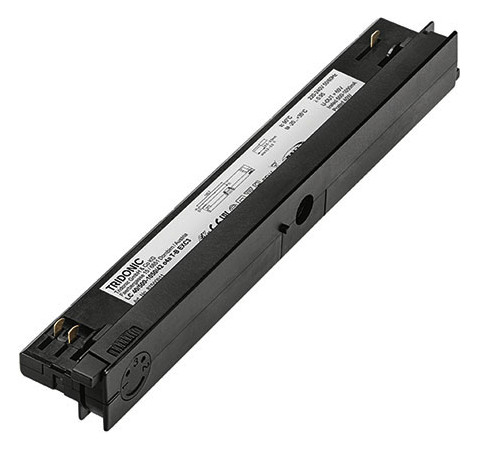

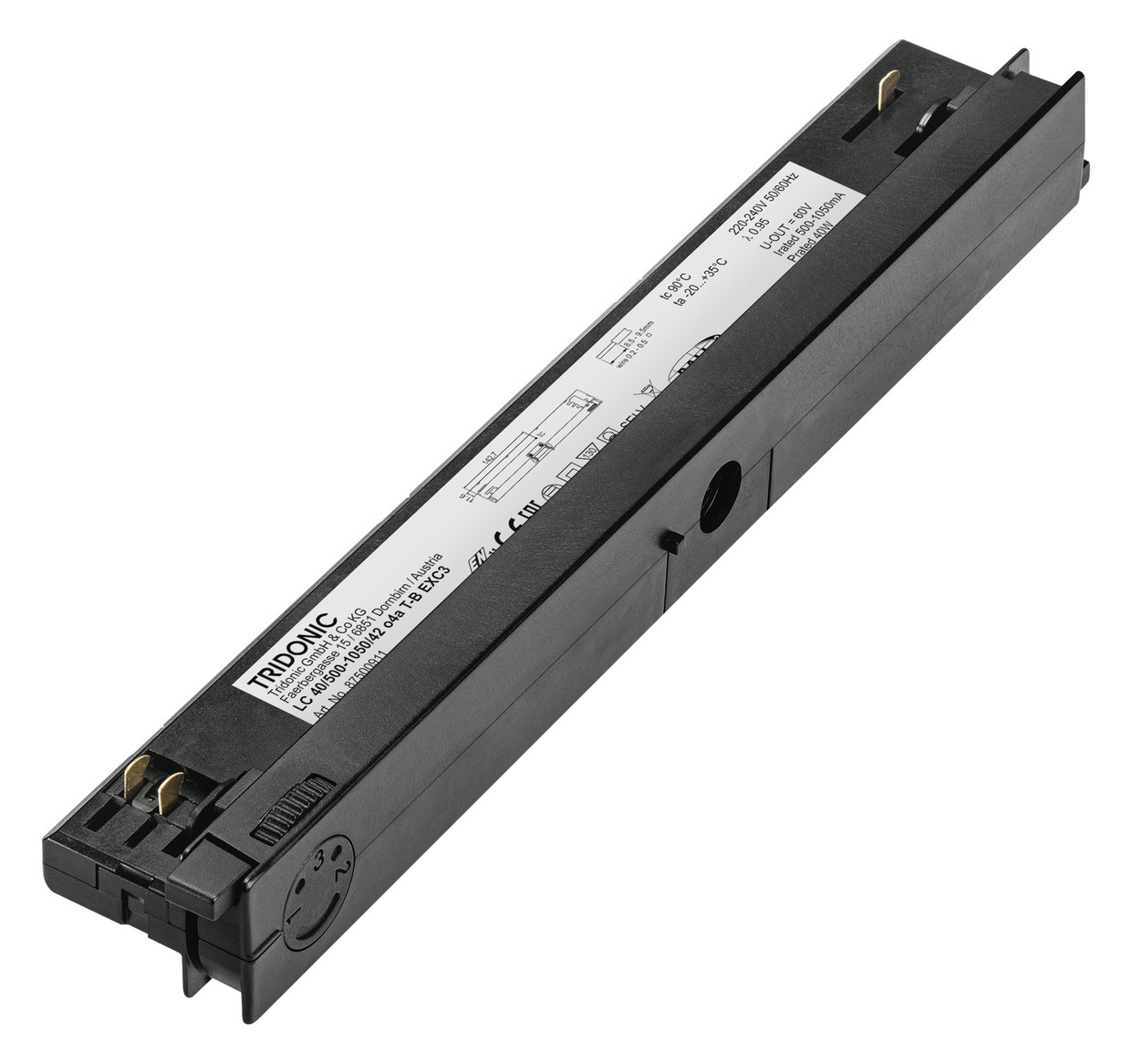

TRIDONIC LED Driver Constant Current LC 40/500-1050/42 o4a T-B EXC3 87500911

SKU: 73-87500911
For further information, please refer to the data sheet!
Weight
0,166 kg
Manufacturer

Tridonic Germany GmbH

Dimmable constant current / track LED driver, Optional accessories ACU ALU NIPPLE M10x1 for fixing the luminaire head, Compatible with Global Trac PULSE by Nordic Aluminium and OneTrack by Stucchi, see data sheet chapter 3.8, dimming range from 1 – 100 % (min. 5 mA), For luminaires of protection class II, temperature protection according to EN 61347-2-13 C5e, output current adjustable between 500 – 1,050 mA with I-SELECT 2 plugs or DALI, Max. output power 40 W, Up to 85% efficiency, Stand-by < power consumption 0.5 W, Nominal lifetime up to 100,000 h, 5-year warranty, Housing: Polycarbonate black, white or grey, IP20 protection, one4all (DALI-2, switchDIM, corridorFUNCTION), Terminals: 45° plug-in terminals, Adjustable output current in 1 mA steps (DALI-2, I-SELECT 2), Overtemperature protection, Overload protection, Short circuit protection, Open circuit protection, Protection against burst voltages 2 kV, Protection against surge voltages 1 kV (between L and N), Flexible configuration via companionSUITE (DALI-2), For spotlight in retail and hospitality applications
