TRIDONIC LED Driver Constant Current LC 50/250/200 fixC lp SNC2 87500841
31. October 2024
TRIDONIC LED Driver Constant Current LC 44/1050/42 fixC SR ADV2 87500868
31. October 2024

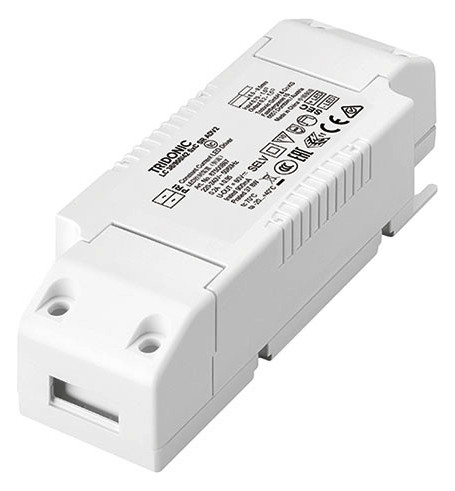

TRIDONIC LED Driver Constant Current LC 38/900/42 fixC SR ADV2 87500867

SKU: 73-87500867
For further information, please refer to the data sheet!
Weight
0,094 kg
Manufacturer

Tridonic Germany GmbH

Independent LED driver with strain relief housing, Extra flat design for limited installation conditions (small ceiling cut-outs and low ceiling cavities), For luminaires of protection class II, For luminaires with M and MM according to EN 60598, VDE 0710 and VDE 0711, Temperature protection according to EN 61347-2-13 C5e, Output current 900 mA, Nominal service life up to 50,000 h, 5 years warranty, Housing: polycarbonate, white, protection class IP20, Plug-in terminals, 2 separate strain reliefs for input and output cables with very robust terminals, overload protection, short-circuit protection, open-circuit protection, No overshoot of the output current when the mains is switched on or off, Protection against burst voltages 1.4 kV, Protection against burst voltages 1 kV (between L and N), Protection against surge voltages 2 kV (between L/N and ground), For spotlight and downlight in retail and catering applications, For panel and area lighting in office and educational applications
