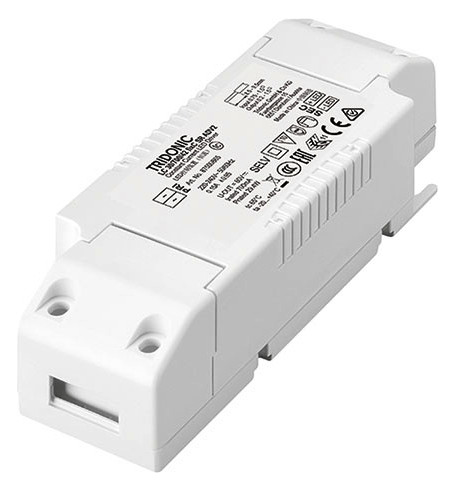

TRIDONIC LED Driver Constant Current LC 30/700/42 fixC SR ADV2 87500865

SKU: 73-87500865
For further information, please refer to the data sheet!
Weight
0,085 kg
Manufacturer

Tridonic Germany GmbH

Independent LED driver with strain relief housing, Extra flat design for limited installation conditions (small ceiling cut-outs and low ceiling cavities), For luminaires of protection class II, For luminaires with M and MM according to EN 60598, VDE 0710 and VDE 0711, Output current 700 mA, Temperature protection according to EN 61347-2-13 C5e, Nominal service life up to 50,000 h, 5 years warranty, Housing: polycarbonate, white, protection class IP20, Plug-in terminals, 2 separate strain reliefs for input and output cables with very robust terminals, overload protection, short-circuit protection, open-circuit protection, No overshoot of the output current when the mains is switched on or off, Protection against burst voltages 1.4 kV, Protection against burst voltages 1 kV (between L and N), Protection against surge voltages 2 kV (between L/N and ground), For spotlight and downlight in retail and catering applications, For panel and area lighting in office and educational applications
