TRIDONIC LED Driver Constant Current LC 20/200-650/54 0-10V NAX lp EXC2 UNV 87500847
31. October 2024
TRIDONIC LED Driver Constant Current LC 75/900-1800/54 0-10V NAX lp EXC2 UNV 87500850
31. October 2024

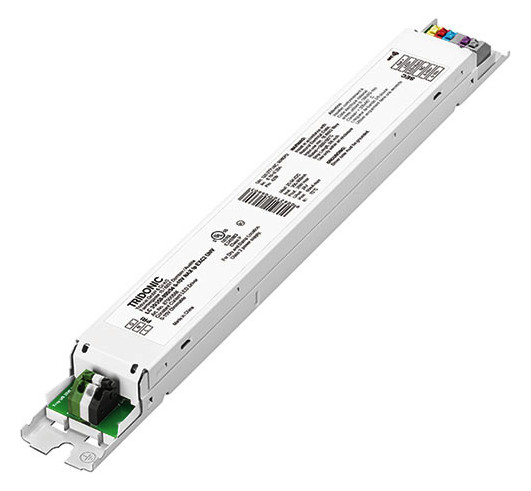

TRIDONIC LED Driver Constant Current LC 35/350-900/54 0-10V NAX lp EXC2 UNV 87500848

SKU: 73-87500848
For further information, please refer to the data sheet!
Weight
0,211 kg
Manufacturer

Tridonic Germany GmbH

Constant current LED driver, dimmable by means of 0 ... 10 V (incl. stand-by), Dimming range from 1 – 100 %, Class 2, UL Listed Class P, FCC Part 15, Meets UL 8750 SF3.1, Output current adjustable between 350 – 900 mA via NFC, Max. output power 35 W, Up to 87% efficiency, Nominal service life up to 100,000 h, 5-year warranty, Housing: Metal, white, IP20 protection, Dry and humid environment, Adjustable output current in 1 mA increments (NFC), AUX output, programmable fade-out time, protection functions (over-temperature, short circuit, overload, open-circuit, input voltage range), operating window for max. compatibility, energy saving by dimming above 0.... 10 V interface, configuration via NFC, Adjust dimming with linear, logarithmic or square dimming curves, For linear and area lighting in office, education, healthcare and general lighting
