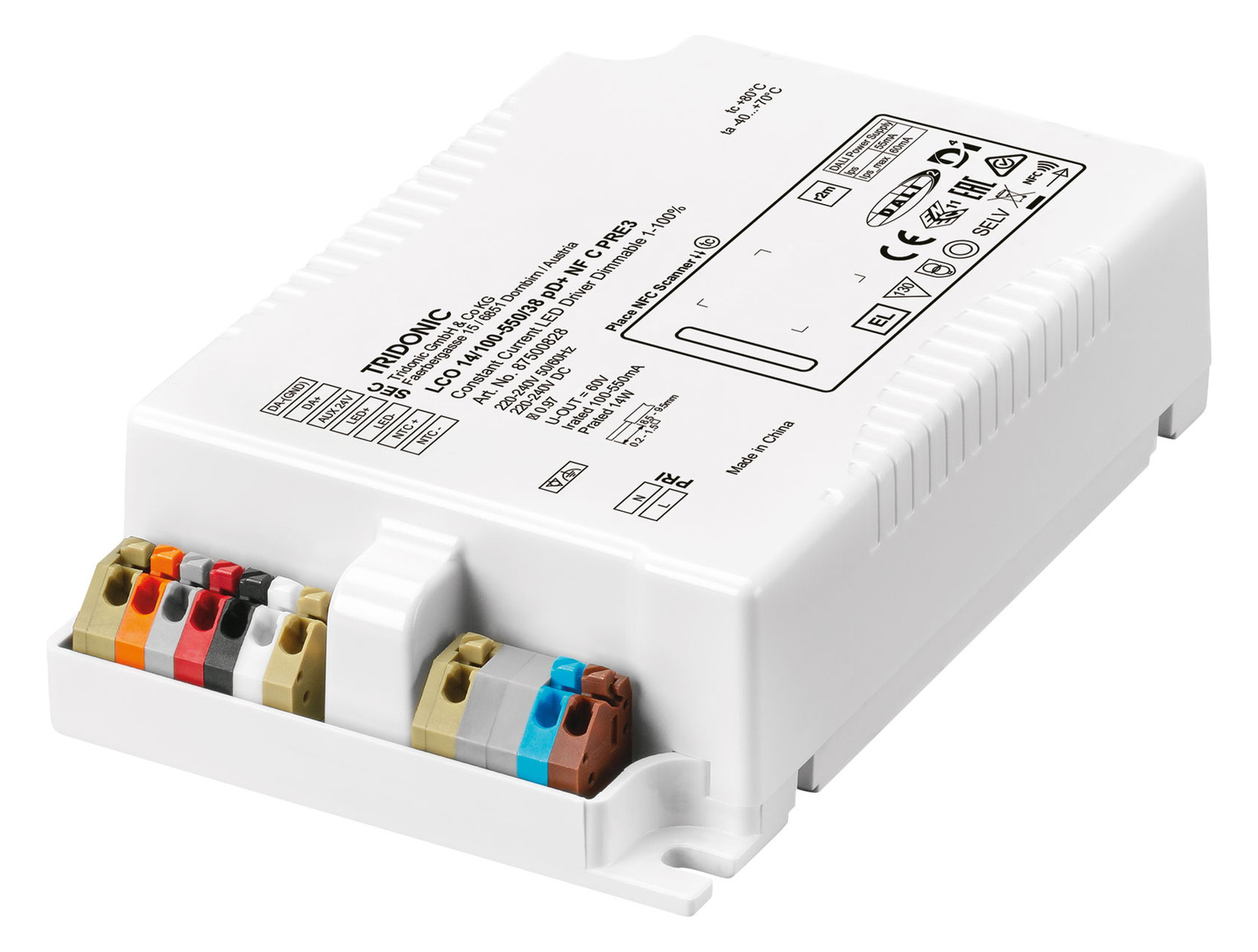

TRIDONIC LED Driver Constant Current LCO 14/100-550/38 pD+ NF C PRE3 87500828

SKU: 73-87500828
For further information, please refer to the data sheet!
Weight
0,234 kg
Manufacturer

Tridonic Germany GmbH

Dimmable constant current LED driver for luminaire installation, dimming range from 1 – 100 % (min. 5 mA), For luminaires of protection class I and protection class II, temperature protection according to EN 61347-2-13 C5e, output current adjustable between 100 – 550 mA with NFC, DALI or ready2mains programmer, max. output power 14 W, up to 85.4 % efficiency, low power consumption in stand-by < 0.3 W, Nominal lifetime up to 100,000 h and 8 years warranty, Near field communication (NFC), Powered DALI-2, Min. power supply 55 mA, ready2mains (Configure via mains), U6Me2 (Configuration of chronoSTEP 2 via mains and ready2mains Programmer), Terminals: 45° plug-in terminals, Adjustable output current in 1 mA steps (NFC, DALI, ready2mains), Programmable chronoSTEP: Time and Levels (NFC, DALI, U6Me2, ready2mains), Advanced Constant Light Output Function (eCLO), Protection functions (overtemperature, short circuit, overload, open circuit, input voltage range, reduced surge current gain), Intelligent Temperature Guard (ITG), Intelligent Voltage Guard Plus (IVG+), External Temperature Management (ETM), Auxiliary 24 V, 3 W Powersupply, DiiA/Zhaga Connectivity Extensions DT49, DT50, DT51, DT52, Flexible configuration via companionSUITE (NFC, DALI, ready2mains™) or U6Me2 Programmer, Operating window for maximum compatibility, High energy savings through Low stand-by losses and high efficiency, In-field programming possible after installation with NFC interface and ready2mains, High surge protection: up to 10 kV asymmetrical (protection class I and II), road and industrial
