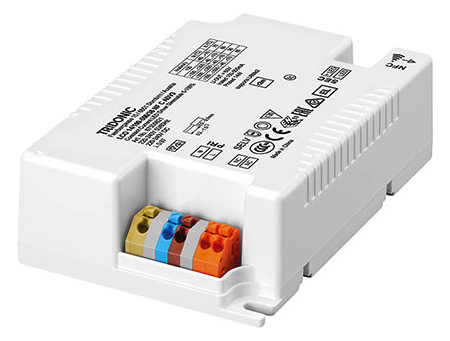

TRIDONIC LED Driver Constant Current LCO 14/100-500/38 NF C ADV3 87500821

SKU: 73-87500821
For further information, please refer to the data sheet!
Weight
0,148 kg
Manufacturer

Tridonic Germany GmbH

Dimmable constant current LED driver for luminaire installation, dimming range 5 – 100 % (min. 5 mA), For luminaires of protection class I and protection class II, temperature protection according to EN 61347-2-13 C5e, output current adjustable between 100 – 500 mA with NFC or ready2mains Programmer, max. output power 14 W, up to 87 % efficiency, low power consumption in stand-by < 0.16 W, Nominal lifetime up to 100,000 h and 8-year warranty, Near-field communication (NFC), ready2mains (configuration via mains), U6Me2 (configuration of chronoSTEP 2 via mains), Terminals: 45° plug-in terminals, Adjustable output current in 1 mA steps (NFC, ready2mains), Programmable chronoSTEP: time and levels (NFC, U6Me2, ready2mains), Dimming via mains voltage (inputDIM), Extended Constant Light Output function (eCLO), Protection functions (overtemperature, Short circuit, overload, no-load, input voltage range, reduced surge current gain), Intelligent Temperature Guard (ITG), Intelligent Voltage Guard Plus (IVG+), Suitable for emergency lighting systems according to EN 50172, Flexible configuration via companionSUITE (NFC, ready2mains™) or U6Me2 Programmer, Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses and high efficiency, In-field programming possible according to the Installation with NFC interface and ready2mains, High surge protection: up to 10 kV (3 pulses) asymmetrical (protection class I and II), road and industrial
