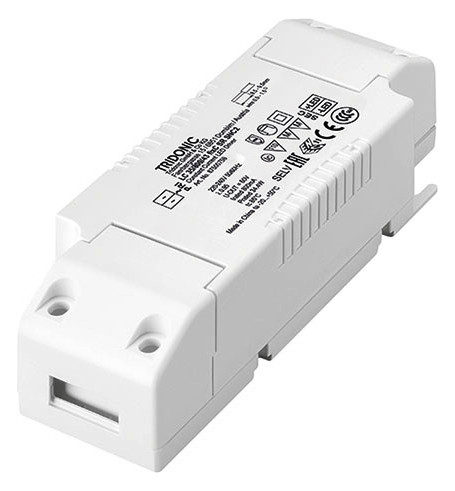

TRIDONIC LED Driver Constant Current LC 35/800/43 fixC SR SNC2 87500758

SKU: 73-87500758
For further information, please refer to the data sheet!
Weight
0,111 kg
Manufacturer

Tridonic Germany GmbH

Independent LED driver with strain relief housing, For luminaires with M and MM according to EN 60598, VDE 0710 and VDE 0711, Temperature protection according to EN 61347-2-13 C5e, Output current 800 mA, Max. output power 35 W, Nominal service life up to 50,000 h, 5 years warranty, Housing: Polycarbonate, white, IP20 protection, Plug-in terminals, 2 separate strain reliefs for input and output cables with very robust terminals, Overload protection, Short circuit protection, Open circuit protection, No overshoot of the output current when the mains is switched on or off, Protection against burst voltages 1 kV, Protection against surge voltages 1 kV (between L and N), Protection against surge voltages 2 kV (between L/N and ground), For spotlights and downlights in retail and catering applications, For panel and area lighting in office and education applications
