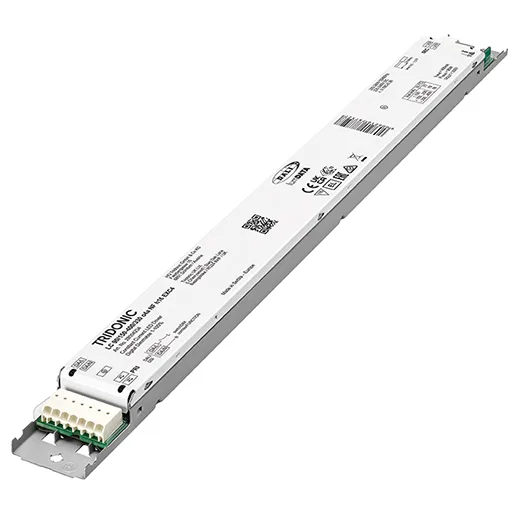

TRIDONIC LED Driver Constant Current LC 90/150-400/330 o4a NF h16 EXC4 28004234

SKU: 73-28004234
For further information, please refer to the data sheet!
Manufacturer

Tridonic Germany GmbH

Dimmable constant current LED driver for luminaire installation, dimming range from 1 – 100 %, For luminaires of protection class I and protection class II, output current adjustable between 150 – 400 mA, max. output power 90 W, up to 96.9 % efficiency, power consumption in stand-by < 0.14 W, Nominal lifetime up to 100,000 h, 5-year warranty, "Low profile" metal housing with white top, Only 16 mm housing height, IP20 protection, Near-field communication (NFC), one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION), Terminals: 0° plug-in terminals, Adjustable output current in 1 mA steps (NFC, DALI), Meets DALI-2 parts: 251 (luminaire data), 252 (energy report) and 253 (diagnostics & maintenance), Constant Light Output function (eCLO), Power-up fading with AC, Driver switching off by means of fade2zero, Protection functions (overtemperature, short circuit, overload, no-load), Suitable for emergency lighting systems according to EN 50172, Flexible configuration via companionSUITE, Supports NFC multiple programming (entire carton unit), Application-oriented operating window for maximum compatibility, High energy savings due to low stand-by losses and high efficiency, Service life up to 100,000 h and 5 years warranty, For Linear and Area Lighting in Office Applications
